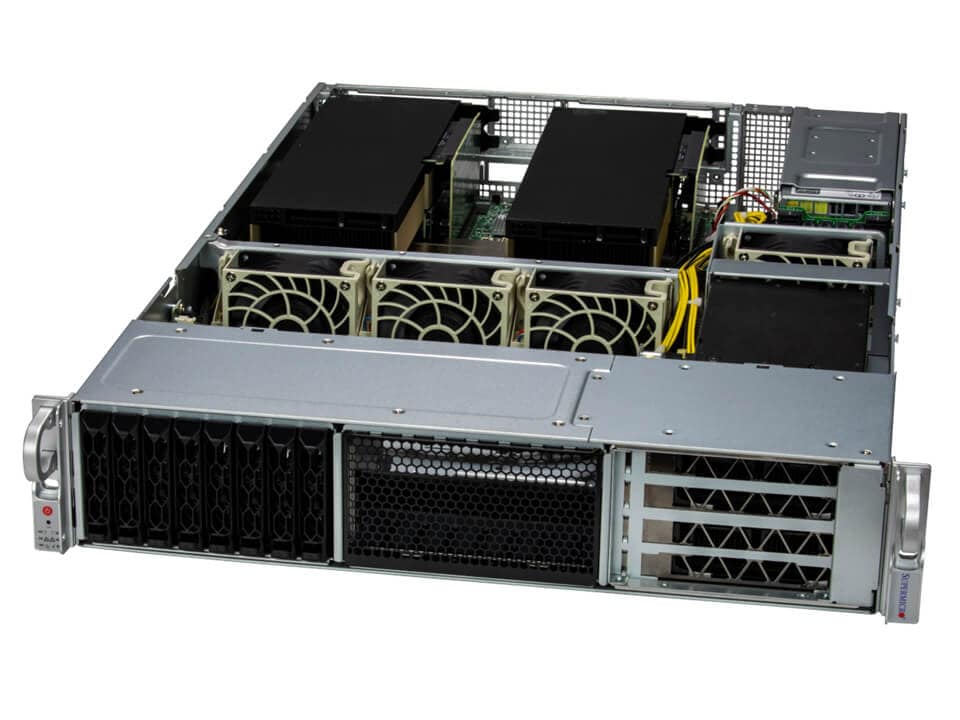

2U MegaDC ARS-210M-NR (ARS-210M-NR)

ARS-210M-NR | 2U | SuperServer | Products | Supermicro - ARS-210M-NR - SS210M-NR - 2U - MegaDC - R12 - System - Ampere - ArmServer - ARM Server - ARM

Loading price... (€0.00)

Loading price...

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: ARS-210M-NR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

Now online: 9.00 am - 17.30 pm

Loading: Specificaties...

Specificaties

Key Applications

High Performance Computing
Immersive Media
Cloud Gaming / AICAN
AI Inference / Training
Dense-VDI
Video-on-Demand

Key Features

Single Socket Ampere® Altra® Processor (Up to 80 Cores; Up to 3.3Ghz) / Single Socket Ampere® Altra® Max Processor (Up to 128 Cores; Up to 3.0Ghz) ; Up to 250W TDP
16 DIMMs; Up to 4TB ECC Registered DDR4-3200MHz RDIMM/LRDIMM
Supports up to 4 PCIe 4.0 x16 Double Wide GPU Cards (Up to 300W per GPU), 1 PCIe 4.0 x16 LP Slot, 1 AIOM Slot (OCP3.0 Mezzanine Compatible)
2x 25Gb LAN SFP28 Ports via Mellanox ConnectX®-4 Lx EN Controller
4x 2.5" U.2 NVMe Hot-Swap Drive Bays (Options available for up to 16 or 24 Drive Bays via a Modular Bay Design)
2000W Redundant Titanium Level high-efficiency power supplies
1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear)

...

Get Pricing

Product SKUs
ARS-210M-NR

Motherboard
Super R12SPD-A

Processor
CPU	Single FCLGA-4926 Ampere® Altra® / Altra® Max processor
Note	Supports 65W - 250W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 4 double-width GPU(s)
Supported GPU	NVIDIA PCIe: H100, L40S, L4, A16, A100, A10 View GPU Options

System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
Chipset	System on Chip
Network Connectivity	2 SFP28 25GbE View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
NVMe	View NVMe Options

Input / Output
LAN	2 SFP28 25 GbE LAN port(s) 1 RJ45 1 GBASE-T Dedicated IPMI LAN port(s)
USB	2 USB 3.0 port(s) (rear)
Video	1 VGA port(s)
Serial	1 port(s)

Management
Software	KVM with dedicated LAN IPMI 2.0
Power configurations	ACPI/APM Power Management

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
