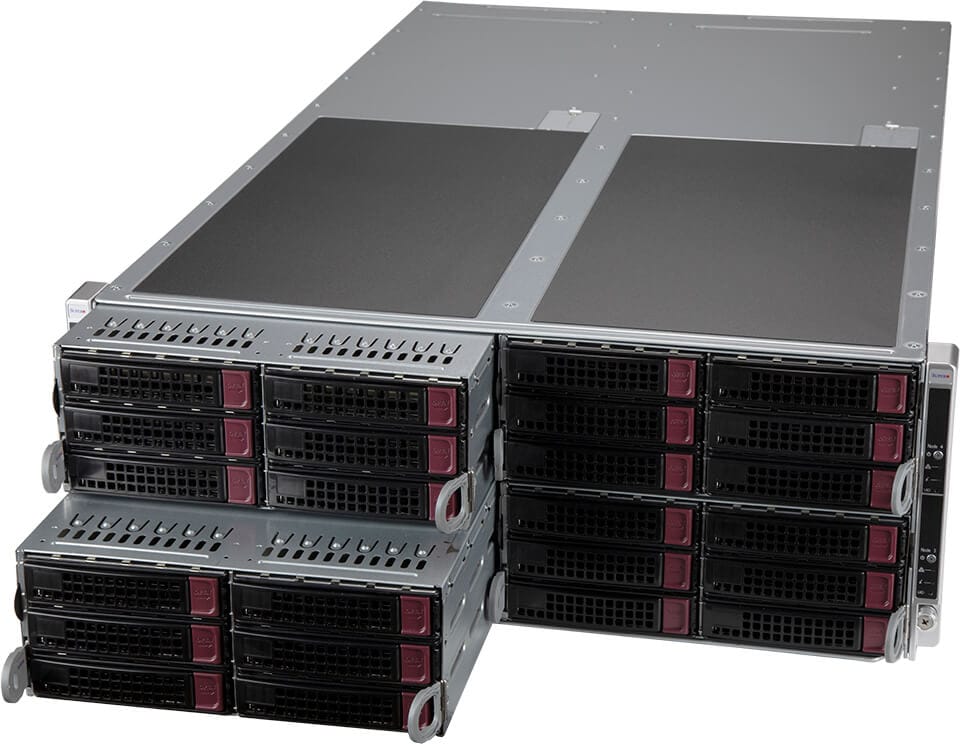

4U FatTwin SuperServer SYS-F620P3-RTBN (SYS-F620P3-RTBN)

SYS-F620P3-RTBN | 4U | SuperServer | Products | Supermicro - SYS-F620P3-RTBN - SSF620P3-RTBN - 4U - FatTwin - X12 - System - Twin Servers - FatTwin - twin - FatTwin

Loading price... (€7755.41)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Try before you buy

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-F620P3-RTBN

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Hyperscale / Hyperconverged
HPC and Big Data
Data Center Enterprise Applications
High Capacity and Ultra Dense Storage
Virtualization Server (VSAN)
Telco Data Center

Key Features

Four hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:

Socket P+(LGA 4189) Supports 3rd Generation Intel® Scalable Processors (Dual Socket)
Two M.2 Internal Drives
NVMe/SATA/SAS options
AIOM and M.2 support; 1 AIOM card support (PCIe 4.0)
- Front access node for better serviceability; 8x 3.5” hot-swap HDDs per node
- Up to 8x SAS/SATA Hot Swap 3.5” Drives, or up to 6x NVMe Hot Swap 2.5” Drives + 2x SAS/SATA Hot Swap 3.5” Drives

...

Get Pricing

Product SKUs
SuperServer SYS-F620P3-RTBN

Motherboard
Super X12DPFR-AN6

Processor (per Node)
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 54MB Cache per CPU
Note	Supports up to 205W TDP CPUs (Air Cooled)

GPU (per Node)
Max GPU Count	Up to 1 double-width GPU(s)

System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 2TB non-ECC Supports Intel® Optane™ persistent memory 200 series View Memory Options

On-Board Devices (per Node)
Chipset	Intel® C621A
Network Connectivity	1 RJ45 1GbE View AIOM Options View AOC Options
NVMe	View NVMe Options

Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB	2 USB 3.0 port(s) (rear)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI FLASH ROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment
