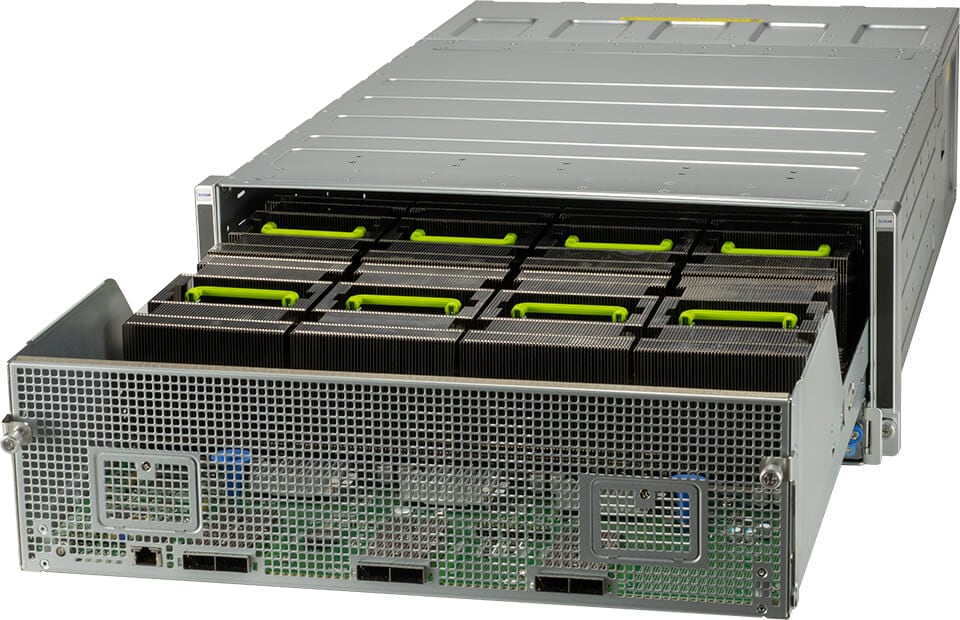

4U AI Training SuperServer SYS-420GH-TNGR (SYS-420GH-TNGR)

SYS-420GH-TNGR | 4U | SuperServer | Products | Supermicro - SYS-420GH-TNGR - SS420GH-TNGR - 4U - AI Training - X12 - System

Loading price... (€11473.30)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Try before you buy

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-420GH-TNGR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Computer Vision
Natural Language Processing
Recommendation
Purpose Built for AI/Deep Learning Training

Key Features

Dual Intel® Xeon® Scalable Processors (Ice Lake) TDP up to 270W
Intel® C621A Chipset
32x DIMM slots, up to 8TB Registered ECC DDR4 3200MHz SDRAM
1x PCIe 4.0 x16 FHHL slot plus 2x PCIe 4.0 AIOM (OCP 3.0 superset) slots
24x on-board 100GbE (via 6x QSFP-DDs) for scale-out and 1x 10GbE BaseT (dedicated IPMI port)
4x 2.5” SAS/SATA/NVMe Hybrid Hot-Swap Bays
5x Removable Heavy-Duty Fan(s)
4x 3000W(54V+12V)/2000W(12V) redundant, Titanium Level power supplies

Get Pricing

Product SKUs
SuperServer SYS-420GH-TNGR

Motherboard
Super X12DPG-U6

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 8 double-width GPU(s)

System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
Chipset	Intel® C621A
Network Connectivity	6 QSFP-DD 400GbE 1 RJ45 10GbE View AOC Options
NVMe	View NVMe Options

Input / Output
LAN	1 RJ45 1 GbE LAN port(s)
USB	2 USB 3.0 port(s)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
