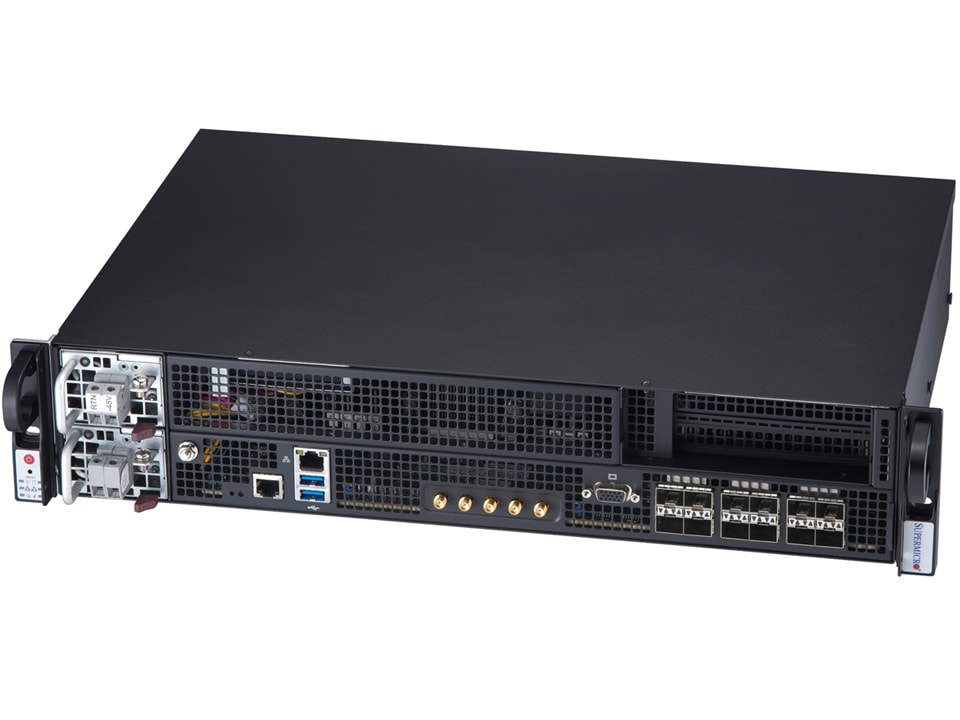

2U IoT SuperServer SYS-211E-FRDN13P (SYS-211E-FRDN13P)

SYS-211E-FRDN13P | 2U | SuperServer | Products | Supermicro - SYS-211E-FRDN13P - SS211E-FRDN13P - 2U - IoT - X13 - System

Loading price... (€3645.61)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Try before you buy

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-211E-FRDN13P

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Network Function Virtualization
Cloud Computing
5G CU/DU Edge Server
Flex RAN, Open RAN vBBU

Key Features

- Design with compliance to NEBS-Level 3
- IEEE1588 v2 & Synchronous Ethernet support
- DPLL/OCXO design, Up to 8 hours hold-over
Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
8 DIMM slots, Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
2x PCIe 5.0 x8 FHHL expansion slots for Accelerator Add-On-Cards
Onboard 12x 25GbE SFP28 ports
2x 2.5" drive bays for SSD drives
2x 600W DC -48V Power Supplies
- Ultra short depth, 2U Front I/O Edge Server
- 1 x RJ45 for dry contact

...

Get Pricing

Product SKUs
SuperServer SYS-211E-FRDN13P

Motherboard
Super X13SEVR-SP13F

Processor
CPU	Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 32C/64T; Up to 82.5MB Cache
Note	Supports up to 225W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 225W only supported under specific conditions. Contact a Supermicro representative for details.

GPU
Max GPU Count	Up to 1 double-width GPU(s)

System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1 support(Intel® VROC RAID key required)
Chipset	Intel® C741
Network Connectivity	1 RJ45 1GbE with Intel® I210-AT 12 QSFP28 25GbE with Intel® E810-CAM1 View AOC Options

Input / Output
LAN	1 RJ45 1 GbE LAN port(s) (IPMI shared on LAN port 1) 12 SFP28 25 GbE LAN port(s) (IPMI shared on LAN port 10)
USB	2 USB 3.0 port(s) (front)
Video	1 VGA port(s)
Others	5 SMA (1 GNSS/4 1PPS) port(s) 1 Dry contact (4 sets) port(s)

System BIOS
BIOS Type	AMI 256MB SPI Flash

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support, PEPI
