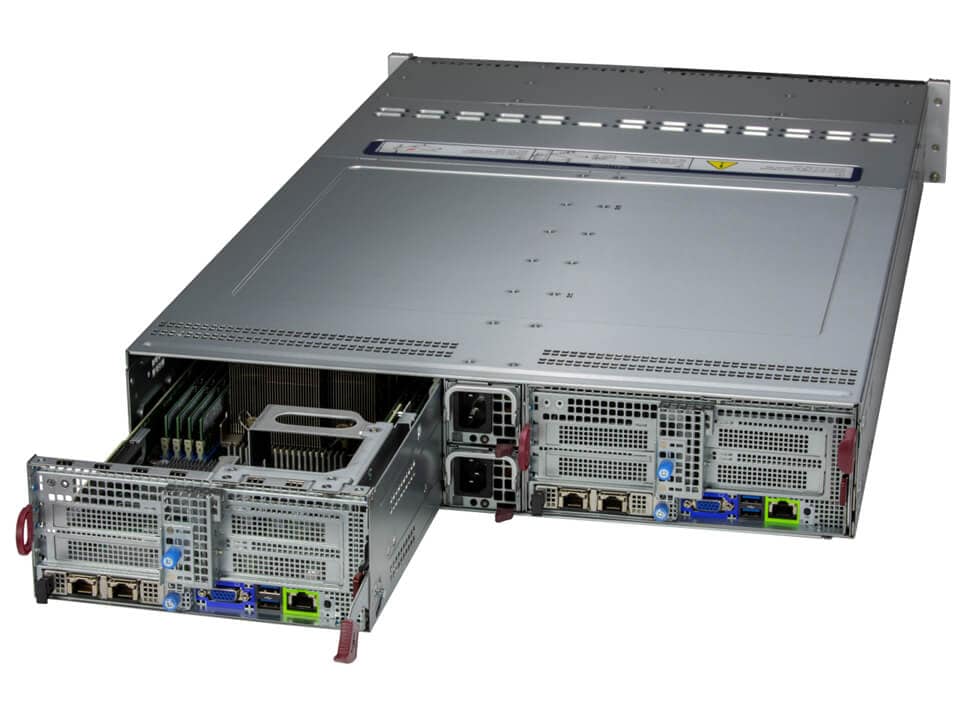

2U BigTwin SuperServer SYS-621BT-DNC8R (SYS-621BT-DNC8R)

SYS-621BT-DNC8R | 2U | SuperServer | Products | Supermicro - SYS-621BT-DNC8R - SS621BT-DNC8R - 2U - BigTwin - X13 - System - Twin Servers - BigTwin - twin - BigTwin

Loading price... (€5652.82)

Loading price...

Verzending binnen 14-21 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Try before you buy

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-621BT-DNC8R

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

Now online: 9.00 am - 17.30 pm

Loading: Specificaties...

Specificaties

Key Applications

Hyperconverged Infrastructure
Scale-Out Object Storage
Back-up & Recovery

Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Socket E (LGA 4677) support 5th/4th Gen Intel® Xeon® Scalable processors
Intel® C741
16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
- Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard
- 1 PCIe 5.0 x16 (LP) slot;
- 2 PCIe 5.0 x8 (LP) slot;
- Tool-less support
- Optional M.2 (22x80) HW RAID1 NVMe Boot Controller via SCC-A2NM2241G3-B1
Network connectivity via AIOM (OCP 3.0 compliant)
- Built-in SAS3 Support via Broadcom 3808; IT Mode
- 6 Hot-Swap 3.5” drive bays (2x PCIe 5.0 NVMe/SAS and 4x PCIe 4.0 NVMe/SAS)
- Liquid Cooling Support
- 4 cooling fans per 2U enclosure, 14.9K RPM; Shared Cooling Design
2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design

...

Product SKUs
SuperServer SYS-621BT-DNC8R

Motherboard
Super X13DET-B

Processor (per Node)
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 300W TDP CPUs (Air Cooled) Supports up to 350W TDP CPUs (Liquid Cooled)

GPU (per Node)
Max GPU Count	Up to 1 double-width or 1 single-width GPU(s)

System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM View Memory Options

On-Board Devices (per Node)
SAS	SAS (12Gbps) via Broadcom® 3808; (IT mode)
Chipset	Intel® C741
Network Connectivity	Via AIOM View AIOM Options View AOC Options
NVMe	View NVMe Options

Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 3.0 Gen2 Type-A port(s) (Rear)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB Flash ROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 8+4 Phase-switching voltage regulator
