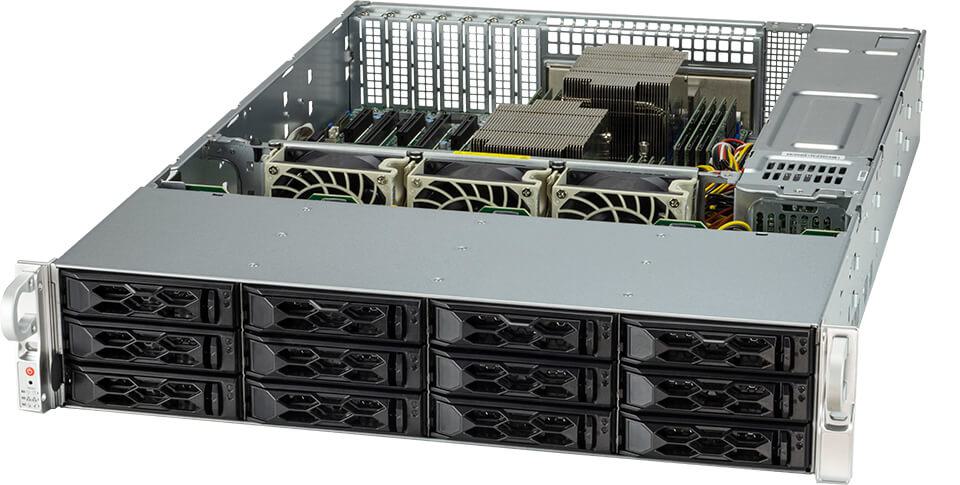

2U Mainstream A+ Server AS -2024S-TR (AS -2024S-TR)

AS - 2024S-TR | 2U | SuperServer | Products | Supermicro - AS - 2024S-TR - SS2024S-TR - 2U - Mainstream - H12 - System - Rackmount Servers - 2U Dual Processor - rackmount - 2u-dp

Loading price... (€1590.23)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Try before you buy

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: AS-2024S-TR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Virtualization
Enterprise Server
Data Center Optimized
Application and data serving
Model analysis
Compute Intensive Applications

Key Features

Dual AMD EPYC™ 7003/7002 Series Processors ;Supports Up to 240W CPU TDP;
AMD® SP3
Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz in 16 DIMMS
- 3 PCIe 4.0 x16 Low Profile (LP);
- 3 PCIe 4.0 x8 Low Profile (LP)
Dual Gigabit LAN
12 hot-swap 3.5" (Tool-less) or 2.5" (screw) drive bays ;(Default configuration is 8 SATA + 4 NVMe) ; (Up to 12x NVMe drives supported with optional NVMe kit);1 M.2 support: ;- M.2 Interface: PCIe 3.0 x4;- M.2 Form Factor: 2260, 2280, 22110;- M.2 Key: M-Key;
3 heavy duty Hot-swappable 9.4K RPM Cooling Fans;1 air shroud
920W Redundant Power Supplies Platinum level
1 rear VGA, 1 Type A port, 1 COM Port, and 4 USB ports

...

Buy Now

Product SKUs
A+ Server AS -2024S-TR

Motherboard
Super H12DSi-N6

Processor
CPU	Dual Socket SP3 AMD EPYC™ 7002/7003 Series Processors
Core Count	Up to 64C/128T; Up to 256MB Cache per CPU
Note	Supports up to 240W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
Chipset	AMD SP3
Network Connectivity	2 RJ45 1GbE View AOC Options
NVMe	View NVMe Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s) 2 RJ45 1 GbE LAN port(s)
USB	2 USB 2.0 port(s) (rear) 2 USB 3.0 port(s) (rear)
Video	1 VGA port(s)
DOM	2 SuperDOM (Disk on Module) port(s)

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 7 Phase-switching voltage regulator
