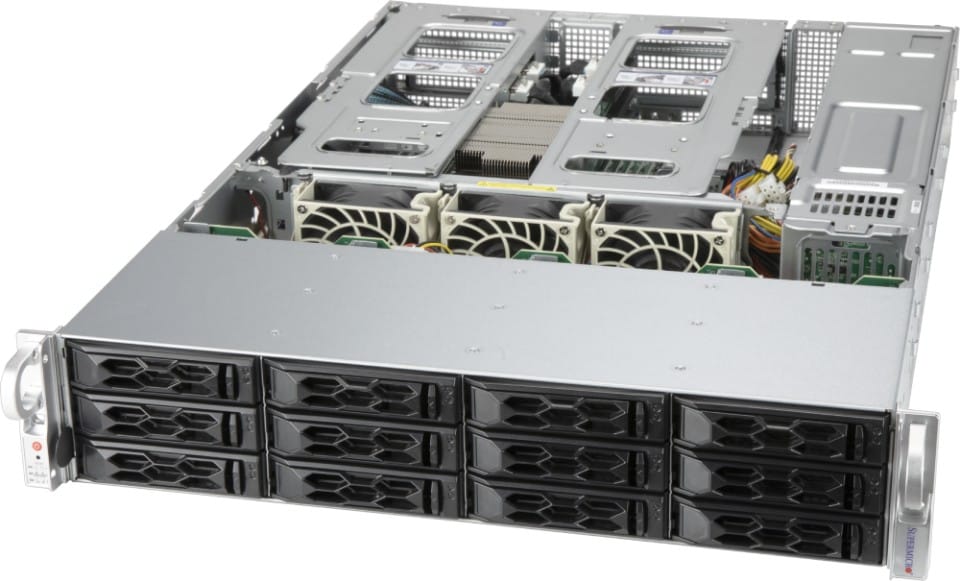

2U CloudDC A+ Server AS -2014CS-TR (AS -2014CS-TR-EU)

Er is geen beschrijving voor dit product.

Loading price... (€0.00)

Loading price...

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: AS-2014CS-TR-EU

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications
- Financial Services
- Cloud Computing
- Network Appliance
- Private Cloud
- Content Delivery Network (CDN)
- Deep Learning Inferencing

Key Features

1. Single AMD EPYC™ 7002/7003 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)

2. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

3. Expansion slots:
4 PCI-E 4.0 x16 (FH, 10.5" L) slots;
2 AIOM slots for flexible networking
(One x8 AIOM slot and one x16 AIOM slot)

4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
key (SFT-OOB-LIC) included
for OOB BIOS management

5. 12 Hot-swap 3.5" SATA3/SAS3/NVMe drive bays:
12 SATA3 by default
or 8 SATA3 + 4NVMe via optional cables
or 12 SAS3 via optional SAS kit;
Optional 2x 2.5" peripheral drive bays via
rear drive bay kits
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2242, 2260, 2280, 22110
M.2 Key: M-Key

6. 2 USB 3.0 ports (rear),
1 VGA, 1 COM,
ASPEED AST2600 BMC graphics

7. Tool-less Drive Trays and Tool-less Brackets

8. 920W Redundant Platinum Level Power Supplies
(Full redundancy based on configuration and application load)


Product SKUs

AS -2014CS-TR	Standard version with PWS-920P-1R2 (Platinum Level)
AS -2014CS-TR-EU	European version with PWS-1K23A-1R (Titanium Level)


Motherboard

Super H12SSW-AN6


Processor/Chipset

CPU	Single AMD EPYC™ 7002/7003 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) Socket SP3 Supports CPU TDP up to 280W
Cores	Up to 64 Cores


System Memory

Memory Capacity	16 DIMM slots Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type	DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs


On-Board Devices

Chipset	System on Chip
SATA	SATA3 (6Gbps)
Network Controllers	Flexible networking provided via AIOM
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	ASPEED AST2600 BMC


Input / Output

SATA	16 SATA3 (6 Gbps) ports
LAN	Networking provided via AIOM 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
COM	1 COM Port (rear)
Video	1 VGA port


System BIOS

BIOS Type	AMI 256Mb SPI Flash EEPROM


Management

Software	Super Doctor 5 Watch Dog SUM IPMI 2.0, KVM with dedicated LAN
Power Configurations	ACPI / APM Power Management


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	3 Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
