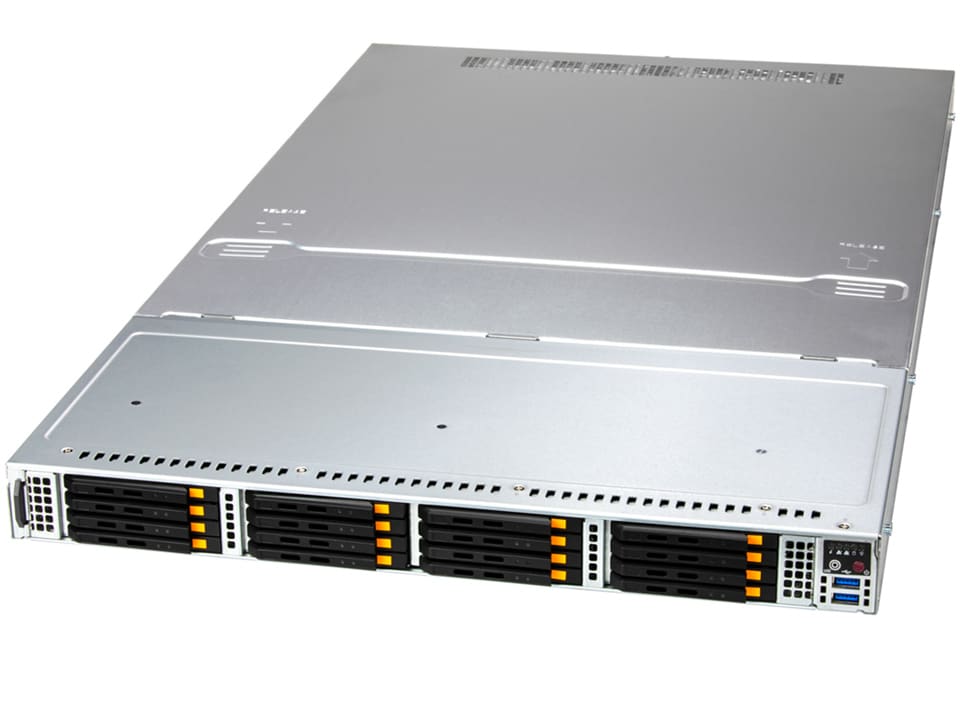

1U Storage A+ Server ASG-1115S-NE316R (ASG-1115S-NE316R)

CSE-126E32-R1K62P; H13SSF

Loading price... (€3398.67)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Try before you buy

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: ASG-1115S-NE316R

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Software-defined Storage
In-Memory Computing
Data Intensive HPC
Private & Hybrid Cloud
NVMe Over Fabrics Solution

Key Features

Single Socket SP5 AMD EPYC™ 9004 Series processors. Up to 300W TDP.
Supports 24 DIMMs with 2DPC, up to 6TB memory capacity with 24 DIMMs of 256GB 3DS RDIMM/RDIMM DDR5 ECC memory
Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
16x hot-swap E3.S (7.5mm) NVMe drive bays
Redundant Titanium 1600W Power Supplies

...

Get Pricing

Product SKUs
A+ Server ASG-1115S-NE316R

Motherboard
Super H13SSF

Processor
CPU	Single Socket SP5 AMD EPYC™ 9004 Series Processors
Core Count	Up to 96C/192T
Note	Supports 200W - 300W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 24 DIMM slots Max Memory (2DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
Chipset	AMD System on Chip
Network Connectivity	Via AIOM View AIOM Options View AOC Options
NVMe	View NVMe Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB	2 USB 3.0 port(s) (rear) 2 USB 3.0 port(s) (front)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
