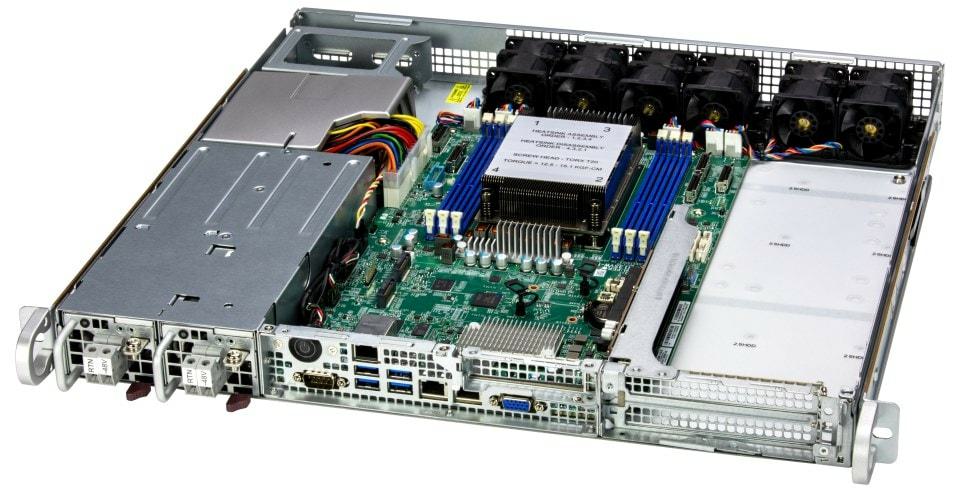

1U IoT A+ Server AS -1115S-FDWTRT (AS -1115S-FDWTRT)

H13SVW-NT. CSE-515B-R000WNP , PWS-601S-1R

Loading price... (€1604.07)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Try before you buy

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: AS-1115S-FDWTRT

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Virtualization
Firewall Applications
Edge/Cloud Computing Services
CDN/vCDN/Cloud CDN
5G/Telco/NEBS environment
vRAN/o-RAN

Key Features

AMD EPYC™ 8004 Series Processor
6 DIMM slots, DDR5-4800MHz memory, support up to 576GB
1x dedicated IPMI LAN, 2x 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
600W Redundant DC Power Supplies

...

Get Pricing

Product SKUs
A+ Server AS -1115S-FDWTRT

Motherboard
Super H13SVW-NT

Processor
CPU	Single processor(s) AMD EPYC™ 8004 Series Processor
Core Count	Up to 64C/128T
Note	Supports up to 200W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 1 single-width GPU(s)
Supported GPU	NVIDIA PCIe: A2 View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect

System Memory
Memory	Slot Count: 6 DIMM slots Max Memory (2DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM View Memory Options

On-Board Devices
SATA	SATA (6Gbps)
NVMe	NVMe; (Optional)
Chipset	System on Chip
Network Connectivity	2 RJ45 10GBASE-T with Broadcom® BCM57416 View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s) 2 RJ45 10 GbE LAN port(s)
USB	4 port(s)
Video	1 VGA port(s)
TPM	1 TPM header

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	1U 600W Redundant DC48V input w/PMBus power supply

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
CPU	Monitors for CPU thermal trip, Chipset Voltages, Memory
