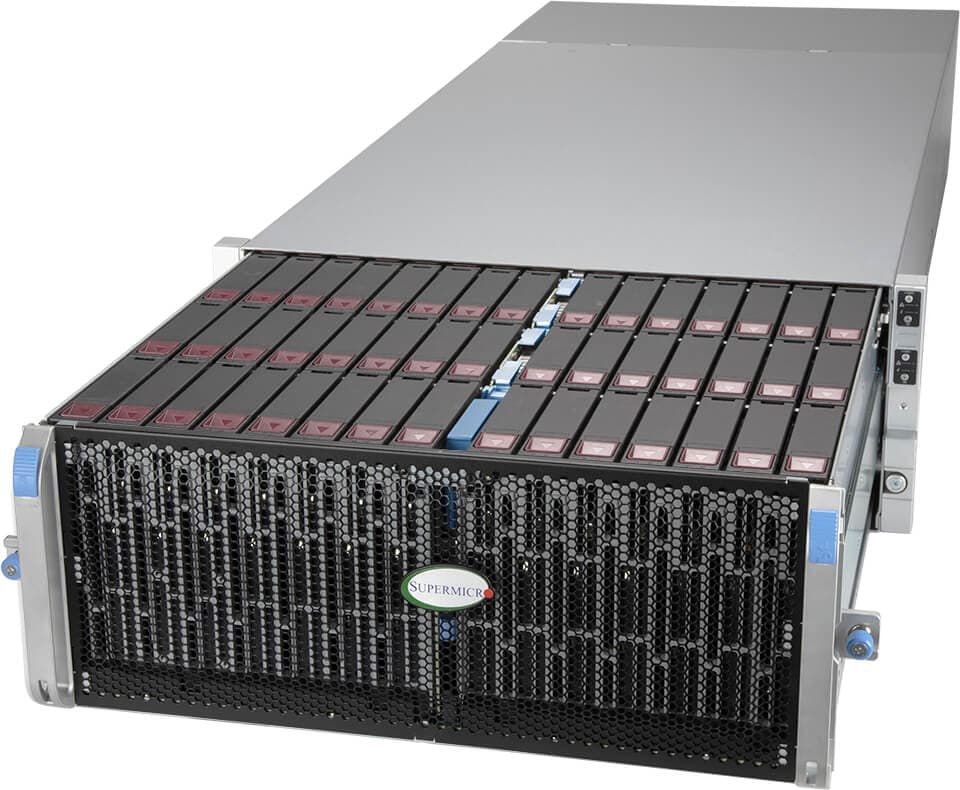

4U Storage SuperServer SSG-640SP-DE2CR90 (SSG-640SP-DE2CR90)

SSG-640SP-DE2CR90 | 4U | SuperServer | Products | Supermicro - SSG-640SP-DE2CR90 - SS640SP-DE2CR90 - 4U - STORAGE - X12 - System - Storage Servers - Top-Loading Storage - storage - top-loading-storage

Loading price... (€11889.50)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SSG-640SP-DE2CR90

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Big Data & Analytics, Data Lake
HPC and AI/ML Workloads
Telco & Cloud Service Providers
Financial Services & Healthcare Image Archives
Content Repositories
Government Data Protection

Key Features

Two hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:

Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
16 ECC DDR4-3200: LRDIMM/RDIMM
3 x PCIe 4.0 x16 HHHL PCIe slots
90 3.5"/2.5" Hot-swap SAS3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)
6x 8cm hot-swap counter-rotate redundant PWM cooling fans
2600W Redundant Power Supplies Titanium Level (96%)
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
- HBA Controller support via Broadcom® 3616
Dedicated node to node connectivity featuring high performance NTB PCIe 4.0 x16 , 1G private Ethernet, and IPMI for robust node fail-over support

...

Product SKUs
SuperServer SSG-640SP-DE2CR90

Motherboard
Super X12DSC-6

Processor (per Node)
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 54MB Cache per CPU
Note	Supports 120W - 205W TDP CPUs (Air Cooled)

System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices (per Node)
Chipset	Intel® C621A
Network Connectivity	2 RJ45 10GBASE-T View AOC Options

Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s) 2 RJ45 10 GBASE-T LAN port(s)
USB	2 USB 3.0 port(s) (rear)
Video	1 VGA port(s)
DOM	2 SuperDOM (Disk on Module) port(s)

System BIOS
BIOS Type	AMI 128MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
