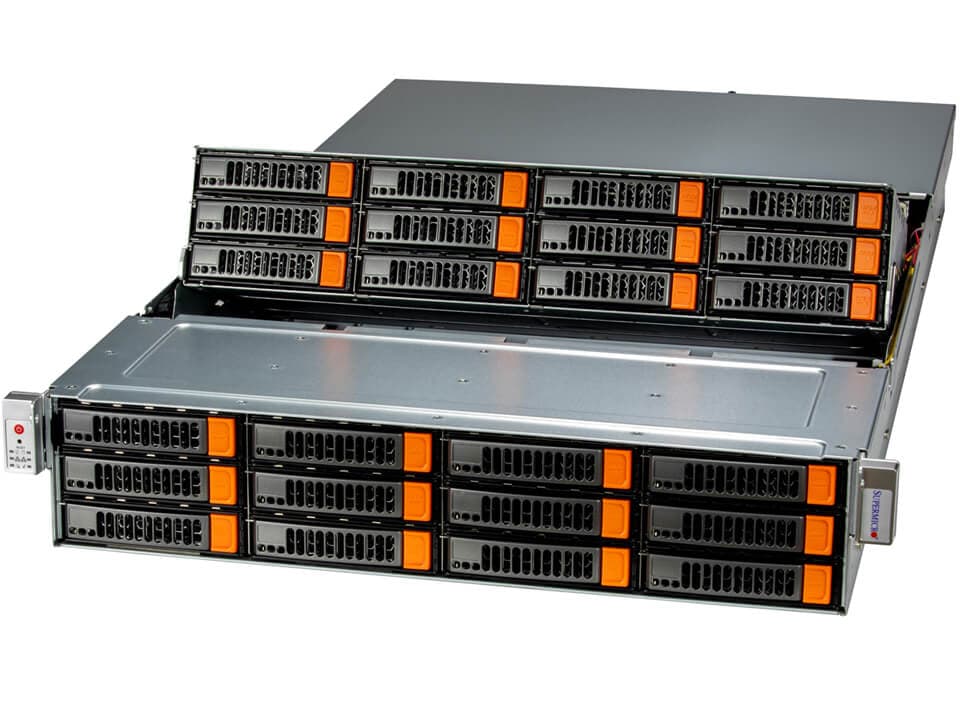

2U Storage SuperServer SSG-521E-E1CR24L (SSG-521E-E1CR24L)

SSG-521E-E1CR24L | 2U | SuperServer | Products | Supermicro - SSG-521E-E1CR24L - SS521E-E1CR24L - 2U - Storage - X13 - System - Storage Servers - Enterprise Optimized Storage - storage - general-purpose-storage

Loading price... (€3858.63)

Loading price...

Verzending binnen 14-21 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SSG-521E-E1CR24L

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Enterprise Server
iSCSI SAN
HPC, Data Center
Database Processing & Storage
Corporate Database
Appliance Optimized Storage Building Blocks

Key Features

Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processor. Up to 300W TDP.
16 ECC DDR5-5600: LRDIMM/RDIMM
- Two Dedicated PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant)
- Up to 6x PCIe 5.0 Slots (Slot #2 populated by 3908 controller by default)
Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
24 3.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 4x Optional Rear NVMe Slots, 2x NVMe/SATA M.2 (form factor: 2280)
4x 8cm hot-swap counter-rotate redundant PWM cooling fans
1600W Redundant Power Supplies Titanium Level (96%)
HBA Controller support via Broadcom® 3808

...

Get Pricing

Product SKUs
SuperServer SSG-521E-E1CR24L

Motherboard
Super X13SEDW-F

Processor
CPU	Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 180MB Cache
Note	Supports 120W - 300W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
Chipset	Intel® C741
Network Connectivity	Via AIOM View AIOM Options View AOC Options
NVMe	View NVMe Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB	2 USB 3.0 port(s) (rear)
Video	1 VGA port(s)
DOM	2 SuperDOM (Disk on Module) port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
