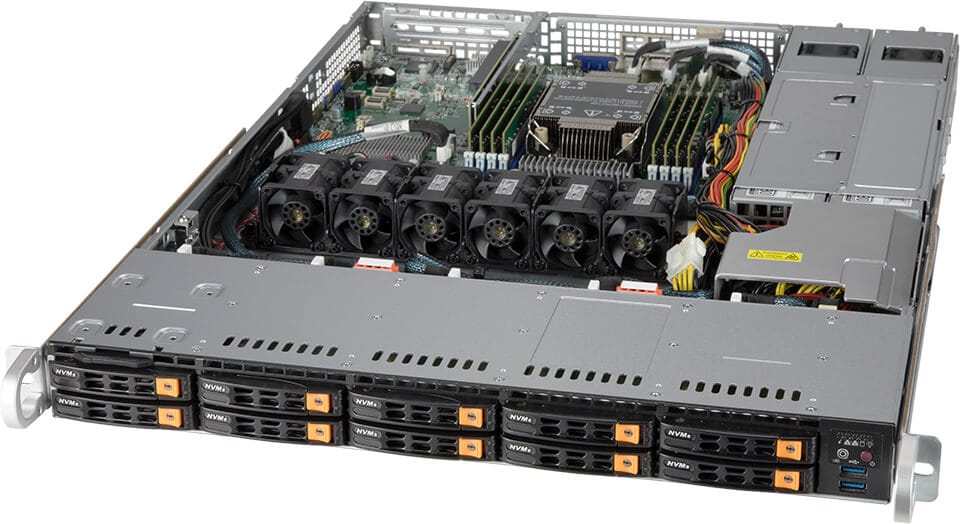

1U UP Storage SuperServer SSG-110P-NTR10 (SSG-110P-NTR10)

SSG-110P-NTR10 | 1U | SuperServer | Products | Supermicro - SSG-110P-NTR10 - SS110P-NTR10 - 1U - UP Storage - X12 - System - Storage Servers - Enterprise Optimized Storage - storage - general-purpose-storage

Loading price... (€0.00)

Loading price...

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SSG-110P-NTR10

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

Now online: 9.00 am - 17.30 pm

Loading: Specificaties...

Specificaties

Key Applications

Virtualization
Cloud Computing
All Flash Storage
CDN Optimized

Key Features

Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
1 PCIe 4.0 x16 (FHHL) slot
Intel® Ethernet Controller X550 2x 10GbE RJ45
10x Hot-swap 2.5'' All NVMe Gen 4 tool-less drive bays; Onboard 2x NVMe Gen 3/SATA M.2
Redundant Platinum 860W Power Supply

...

Product SKUs
SuperServer SSG-110P-NTR10 Standard version with PWS-860P-1R2 (Platinum Level)
SuperServer SSG-110P-NTR10-EU European version with PWS-861A-1R (Titanium Level)

Motherboard
Super X12SPO-NTF

Processor
CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache
Note	Supports up to 270W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series View Memory Options
Memory Voltage	1.2V

On-Board Devices
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) View NVMe Options
Chipset	Intel® C621A
Network Connectivity	2 RJ45 10GbE with Intel® X550 View AOC Options

Input / Output
LAN	2 RJ45 1 GbE LAN port(s) 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1)
USB	2 USB 2.0 port(s) (header) 2 USB 3.2 Gen1 Type-A port(s) (rear) 2 USB 2.0 Type-A port(s) (rear) 2 USB 3.2 Gen1 Type-A port(s) (front) 1 USB 3.2 Gen1 Type-A port(s)
Video	1 VGA port(s)
Serial	1 COM port(s) (Rear) 1 COM port(s) (Header)
DOM	2 SuperDOM (Disk on Module) port(s) with built-in power
TPM	1 TPM header

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7+1 Phase-switching voltage regulator module (VRM)
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
