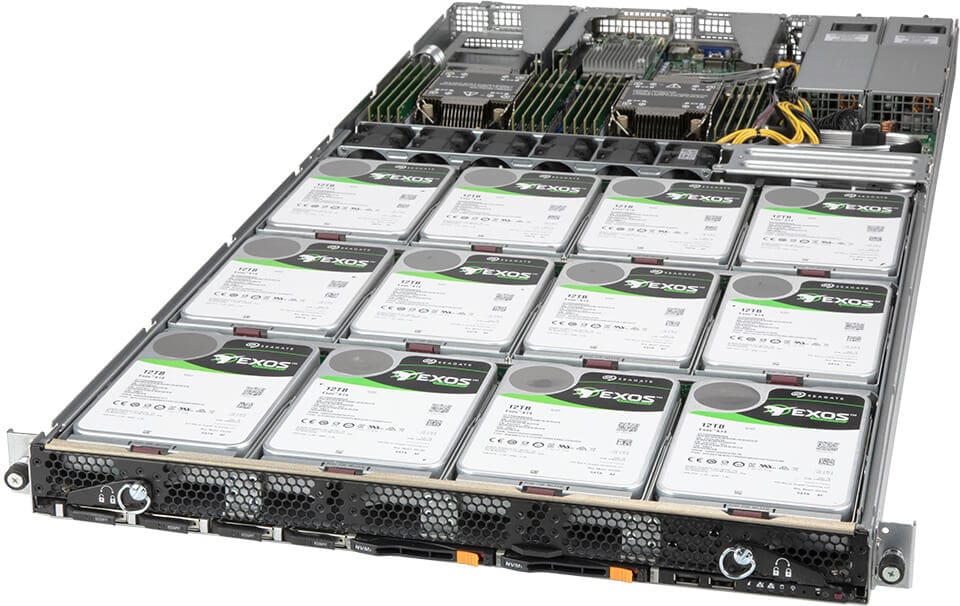

1U MegaDC SuperServer SSG-610P-ACR12N4H (SSG-610P-ACR12N4H)

SSG-610P-ACR12N4H | 1U | SuperServer | Products | Supermicro - SSG-610P-ACR12N4H - SS610P-ACR12N4H - 1U - STORAGE - X12 - System - Storage Servers - Enterprise Optimized Storage - storage - general-purpose-storage

Loading price... (€0.00)

Loading price...

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SSG-610P-ACR12N4H

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Database Applications
Hyperscale Data Center
Object Storage
Big Data Analytics
Scale-Out Density
Hadoop & Ceph storage solutions
Scale-out NAS

Key Features

Up to 4TB ECC DDR4-3200: LRDIMM/RDIMM
2x 25G SFP28 Ports Onboard
12x 3.5" hot-swap SAS/SATA, 4x EDSFF Short Bays, 2x 2.5" 7mm NVMe/SATA drive bays
RAID support via Broadcom® 3916
- Front LED Indicator for each drive
- PCIe 4.0 x16 AIOM Support + 3 PCIe 4.0 LP Slots

...

Product SKUs
SuperServer SSG-610P-ACR12N4H Standard version with PWS-804P-1R (Platinum Level)
SuperServer SSG-610P-ACR12N4H-EU European version with PWS-862A-1R (Titanium Level)

Motherboard
Super X12DPD-A6M25

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 38C/76T; Up to 57MB Cache per CPU
Note	Supports 120W - 205W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
Chipset	Intel® C621A
Network Connectivity	2 SFP28 25GbE View AOC Options

Input / Output
LAN	2 SFP28 25 GbE LAN port(s) 1 RJ45 1 GBASE-T Dedicated IPMI LAN port(s)
USB	2 USB 3.0 port(s) (rear) 2 USB 2.0 port(s) (front)
Video	1 VGA port(s)
Serial	1 port(s)

System BIOS
BIOS Type	AMI 128MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
