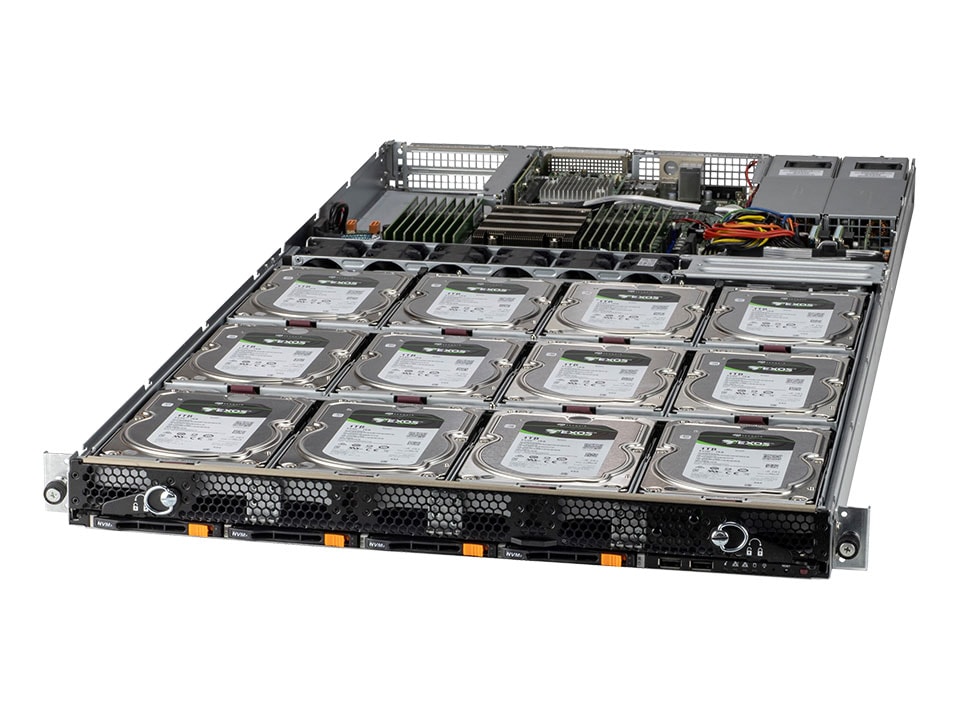

1U MegaDC A+ Server ASG-1014S-ACR12N4H (ASG-1014S-ACR12N4H)

ASG-1014S-ACR12N4H | 1U | SuperServer | Products | Supermicro - ASG-1014S-ACR12N4H - AS1014S-ACR12N4H - 1U - Storage - H12 - System - Storage Servers - Enterprise Optimized Storage - storage - general-purpose-storage

Loading price... (€3299.07)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: ASG-1014S-ACR12N4H

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

Now online: 9.00 am - 17.30 pm

Loading: Specificaties...

Specificaties

Key Applications

Database Applications
Hyperscale Data Center
Object Storage
Big Data Analytics
Scale-Out Density
Hadoop & Ceph storage solutions
Scale-out NAS

Key Features

Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
16 DIMMs; Up to 4TB 3DS ECC Registered DDR4-3200MHz RDIMM/LRDIMM
2 PCIe 4.0 x16 (FHHL) Slots, 1 PCIe 4.0 x16 (LP) Slot
2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
12x 3.5" SAS3/SATA3 Hot-Swap Drive Bays, 4x 2.5" 7mm U.2 NVMe Hot-Swap Drive Bays
800W Redundant Power SuppliesPlatinum Level High-efficiency(Full redundancy based onconfiguration and application load.)
RAID support via Broadcom® 3916
1 VGA, 1 COM, 4 USB3.0 (4 Rear, 1 Type A), 2 USB2.0 (2 Front)

...

Get Pricing

Product SKUs
A+ Server ASG-1014S-ACR12N4H

Motherboard
Super H12SSW-NTR

Processor
CPU	Single Socket SP3 AMD EPYC™ 7003/7002 Series Processor
Note	Supports up to 240W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 16 DIMM slots/8 Channels Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
SAS	SAS (12Gbps) via Broadcom® 3916; RAID 0/1/5/6/10/50/60 support
NVMe	NVMe; (Native) View NVMe Options
Chipset	AMD System on Chip
Network Connectivity	2 RJ45 10GBASE-T with Broadcom® BCM57416 View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s) 2 RJ45 10 GBASE-T LAN port(s) (Broadcom® BCM57416)
USB	2 USB 2.0 Type-A port(s) (front) 4 USB 3.0 Type-A port(s) (Rear)
Video	1 VGA port(s) (Rear)
Serial	1 COM port(s) (Rear)
DOM	2 SuperDOM (Disk on Module) port(s) with built-in power
TPM	1 TPM header

System BIOS
BIOS Type	AMI 256MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
