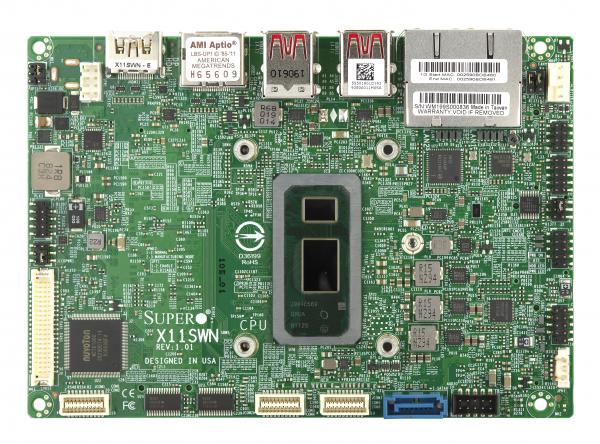

Motherboard X11SWN-C-WOHS Single Intel® Celeron® Processor 4305UE

"Intel® Celeron® Processor 4305UE - 3.5"" SBC - System on Chip - Single - Up to 15W TDP - DDR4 SODIMM64GB - PCI-E 3.0 "

Loading price... (€0.00)

Loading price...

Verzending binnen 7-10 werkdagen

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-X11SWN-C-WOHS

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

P/N: X11SWN-C-WOHS

Key Features

Intel® Celeron® 4305UE Processor
Dual Channel DDR4 2133MHz SO-DIMM, up to 64GB
Small form factor with rich I/O: 2 GbE, 8 USB and 6 COM
Intel UHD Graphics 620 with 4K and 24 EU for Vision Solution
3 display support(DP++, HDMI and 48-bit LVDS)
Rich expansion: 3 x M.2 (B/E/M key) for NVMe/SATA/Wifi/BT/LTE
12-24V wide range power input with RVP and TVS
Without heatsink for customer's flexible thermal design

...

Optimized Servers

SYS-E100-9W-C SYS-E100-9W-IA-C

Product SKUs
MBD-X11SWN-C-WOHS

Physical Stats
Form Factor	3.5" SBC
Dimension	5.7" x 4" (14.6cm x 10.16cm)

Processor
CPU	Intel® Celeron® Processor 4305UE Single Socket FCBGA-1528 supported, CPU TDP supports Up to 15W TDP
Core	Up to 2 cores, 2 threads / 2MB Cache

System Memory
Memory Capacity	2 DIMM slots Up to 64GB Unbuffered non-ECC SODIMM, DDR4-2133MT/s
Memory Type	2666/2400/2133 MT/s non-ECC DDR4 Unbuffered 2133MHz 260pin SODIMM
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V

On-Board Devices
Chipset	System on Chip
Audio	ALC 888S HD Audio
Graphics	1 Intel® UHD Graphics 610 port(s) Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), _x000D_ HDMI 1.4 (max. resolution up to 4096x2160@30Hz), DP++ (max. resolution up to 4096x2304@60Hz)
Network Controllers	Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210IT
SATA	I-SATA0 (1x SATA 3.0 Port)

Input / Output
SATA	1 SATA3 (6Gbps) port(s)
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 2.0 port(s) (4 via header) 4 USB 3.1 Gen2 port(s) (4 rear type A)
Video Output	1 HDMI port(s), 1 48-bit LVDS port(s), 1 DP++(Dual-Mode DisplayPort) port(s)
Serial Port	6 COM Port(s) (6 header), (4 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
TPM	1 TPM Chip
Others	1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C) 1 8-bit GPIO header 1 SMBus header 1 System Fan

Expansion Slots
PCIe	N/A
M.2	Key: B-Key, M-Key, E-Key M.2 2242/3042/2280 B-Key (USB3.0/2.0 x 1,SATA Gen3 x 1) with nano SIM holder;M.2 2230 E-Key (CNVi/PCIe 3.0 x1/USB2);M.2 2242/2280 M-Key (PCIe 3.0 x4,SATA Gen3 x 1), NVMe support

System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.2 SMBIOS 3.0 or later UEFI 2.7 PCI FW 3.0

Management
Software	SuperDoctor® 5, Watchdog
System Management Software	SuperDoctor 5
Power Configurations	ACPI Power Management, CPU thermal trip support for processor protection, +12-24V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper

PC Health Monitoring
Voltage	VBAT, System temperature, System level control, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V
LED	Standby alert LED
Temperature	CPU thermal trip support
FAN	1x 4-pin fan header (up to 1 fan) Thermal control tachometer fan connectors System level control PWM fan speed control Low noise fan speed control Fan speed control
Other Features	WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12-24V DC Power Connector

Operating Environment
Operating Temperature Range	0°C - 70°C (32°F - 158°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)
