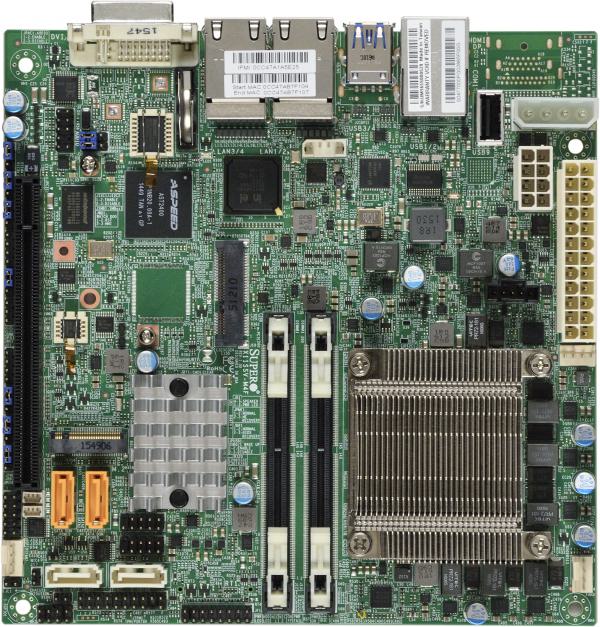

Motherboard X11SSV-M4F Single Intel® Xeon® processor E3-1585 v5

Intel® Xeon® processor E3-1585 v5 - Mini-ITX - Intel® C236 - Single - Up to 65W TDP - DDR4 SODIMM32GB - PCI-E 3.0 1 x16

Loading price... (€1108.33)

Loading price...

Verzending binnen 7-10 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-X11SSV-M4F

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

P/N: X11SSV-M4F

Key Features

Intel Xeon processor E3-1585 v5,
Single socket FCBGA 1440,
4-Core, 8 Threads, 65W
Intel® C236 chipset
Integrated IPMI 2.0 and KVM with
Shared LAN (Intel I210AT)
Supports Intel VHD and 12V DC power input
Up to 32GB ECC Unbuffered SO-DIMM DDR4 2133MHz; 2 DIMM slots
1 PCIe 3.0 x16, 1 Mini-PCIe (mSATA support), 1 M.2 PCIe 3.0 x4 (SATA support), M Key 2242/80
4x 1GbE LAN w/ Intel I219LM, I210AT, I350AM2
1 DVI-A, Graphics from AST2400
4 SATA3 (6Gbps) via C236;
RAID 0, 1, 5, 10
2 SATA DOM, 1 COM (in RJ45),TPM header, ALC 888S HD Audio

...

Optimized Servers

SYS-5019S-TN4

Product SKUs
MBD-X11SSV-M4F

Physical Stats
Form Factor	Mini-ITX
Dimension	6.7" x 6.7" (17.02cm x 17.02cm)

Processor
CPU	Intel® Xeon® processor E3-1585 v5 Single Socket FCBGA-1440 supported, CPU TDP supports Up to 65W TDP
Core	Up to 4 cores, 8 threads

System Memory
Memory Capacity	2 DIMM slots Up to 32GB Unbuffered ECC SODIMM, DDR4-2133MT/s
Memory Type	2133/1866/1600 MT/s ECC DDR4 SODIMM Unbuffered
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C236
SATA	Intel® C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Intel RSTe
IPMI	ASPEED AST2400 BMC
Audio	ALC 888S HD Audio
Graphics	1 ASPEED AST2400 BMC port(s) Intel Iris Pro P580 for VHD
Network Controllers	Single LAN with Intel® Ethernet Controller I210-AT Dual LAN with Intel® Ethernet Controller I350-AM2 Single LAN with Intel® PHY I219LM LAN controller, IPMI Shared LAN with I210-AT

Input / Output
SATA	4 SATA3 (6Gbps) port(s)
LAN	2
USB	5 USB 2.0 port(s) (4 via header; 1 Type A) 4 USB 3.2 Gen1 port(s) (4 rear)
Video Output	1 DVI - A port(s)
DOM	2 SuperDOM (Disk on Module) port with build power
TPM	1 TPM Header

Expansion Slots
PCIe	1 PCIe 3.0 x16 Mini PCIe with mSATA support Bifurcation support on PCIE x16 slot
M.2	M.2 Interface: SATA Form Factor: 2280, 2242

System BIOS
BIOS Type	128MB SPI Flash with AMI BIOS
BIOS Features	ACPI 1.0 / 2.0 / 3.0 / 4.0 DMI 2.3 PCI 3.0 Plug and Play (PnP) SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup USB Keyboard support

Management
Software	SuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
System Management Software	SuperDoctor 5, IPMIView for Linux/Windows
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management

PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3 -fan status, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
FAN	3x 4-pin fan headers (up to 3 fans) Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
Other Features	WOL, System level control, RoHS, Node Manager Support, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, VHD

Operating Environment
Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)
