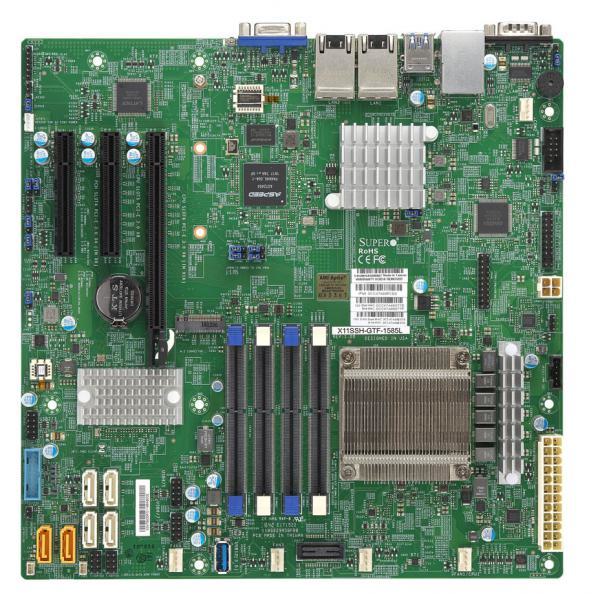

Motherboard X11SSH-GF-1585L Single Intel® Xeon® processor E3-1585L v5

Intel® Xeon® processor E3-1585L v5 - Micro-ATX - Intel® C236 - Single - Up to 45W TDP - DDR4 SODIMM64GB - PCI-E 3.0 1 x4(in x8 slot)1 x81 x8(in x16 slot)

Loading price... (€979.76)

Loading price...

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-X11SSH-GF-1585L

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

P/N: X11SSH-GF-1585L

Key Features

Intel® Xeon® processor E3-1585L v5,
Single socket FCBGA 1440,
4-Core, 8 Threads, 45W
Intel® C236 chipset
Up to 64GB ECC Unbuffered SO-DIMM,
DDR4 2133MHz; 4 DIMM slots
Expansion slots:1 PCIe 3.0 x8 (in x16),1 PCIe 3.0 x8,1 PCIe 3.0 x4 (in x8)
M.2 NGFF connector
M.2 Interface: PCIe 3.0 x4 and SATA
Form Factor: 2242, 2280, 22110
Key: M-Key
6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
Support Intel® Iris Pro Graphics P580 (GT4e) ,
for VHD and Quick Sync Video
2 SuperDOM with built-in power
5 USB 3.0 (2 rear, 1 Type A, 2 internal)

...

Optimized Servers

SYS-5019S-M-G1585L SYS-5019S-MR-G1585L

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X11SSH-GF-1585L

Physical Stats
Form Factor	Micro-ATX
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU	Intel® Xeon® processor E3-1585L v5 Single Socket FCBGA-1440 supported, CPU TDP supports Up to 45W TDP

System Memory
Memory Capacity	4 DIMM slots 64GB Unbuffered ECC SODIMM, DDR4-2133MT/s
Memory Type	2133/1866/1600 MT/s ECC DDR4 SODIMM Unbuffered
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors

On-Board Devices
Chipset	Intel® C236
SATA	Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Support for Intelligent Platform Management Interface v.2.0 ASPEED AST2400 BMC
Graphics	1 ASPEED AST2400 BMC port(s)
Network Controllers	Dual LAN with Intel® i350 Gigabit Ethernet Controller

Input / Output
USB	8 USB 2.0 port(s) (2 rear; 6 via header) 2 USB 3.0 port(s) (2 rear) 3 USB 3 port(s) (2 via header; 1 type A)
Video Output	1 VGA port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
DOM	2 SuperDOM (Disk on Module) power connector
TPM	1 TPM Header

Expansion Slots
PCIe	1 PCIe 3.0 x8 (in x16 slot), 1 PCIe 3.0 x8, 1 PCIe 3.0 x4 (in x8 slot)
M.2	M.2 Interface: PCIe 3.0 x4; SATA Form Factor: 22110, 2242, 2280 Key: M-Key

System BIOS
BIOS Type	128MB SPI Flash EEPROM with AMI BIOS
BIOS Features	ACPI 1.0 / 2.0 / 3.0 / 4.0 SMBIOS 2.7.1 APM 1.2 DMI 2.3 UEFI 2.3.1 Hardware BIOS Virus protection USB Keyboard support RTC (Real Time Clock) Wakeup

Management
Software	SuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management

PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
FAN	5x 4-pin fan headers (up to 5 fans) Thermal control tachometer fan connectors Fan speed control Overheat LED indication
Other Features	WOL M.2 NGFF connector CPU thermal trip support for processor protection Control of power-on for recovery from AC power loss VHD

Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
