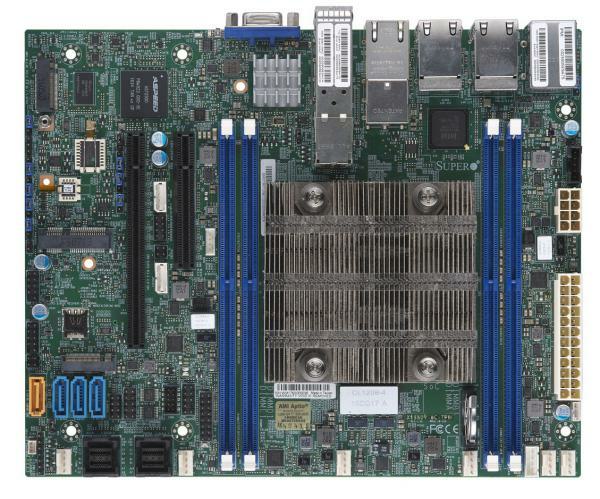

Motherboard X11SDV-4C-TP8F Single Intel® Xeon® Processor D-2123IT

Intel® Xeon® Processor D-2123IT - Flex ATX - System on Chip - Single - Up to 60W TDP - DDR4 RDIMM512GB - PCI-E 3.0 1 x161 x8

Loading price... (€775.00)

Loading price...

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-X11SDV-4C-TP8F

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

P/N: X11SDV-4C-TP8F

Key Features

Intel® Xeon® Processor D-2123IT, CPU TDP support Up to 60W TDP
Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots
1 PCIe 3.0 x8,
1 PCIe 3.0 x16
1 Mini-PCIe,
2 PCIe 3.0 NVMe x4 Internal Port(s)
1 M.2 M-Key SATA/PCIe 3.0 x4, 2280
1 M.2 B-Key SATA/PCIe 3.0 x2, 3042
U.2 Interface: 2 PCIe 3.0 x4
SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Quad LAN with Intel® Ethernet Controller I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T
Supports 12V DC power input
1 VGA D-Sub Connector port
System on Chip

...

Optimized Servers

SYS-5019D-4C-FN8TP SYS-E300-9D-4CN8TP SYS-E302-9D

Product SKUs
MBD-X11SDV-4C-TP8F

Physical Stats
Form Factor	Flex ATX
Dimension	9" x 7.25" (22.86cm x 18.42cm)

Processor
CPU	Intel® Xeon® Processor D-2123IT
Core	Up to 4 cores, 8 threads

System Memory
Memory Capacity	4 DIMM slots Up to 512GB ECC LRDIMM, DDR4-2133MT/s; Up to 256GB ECC RDIMM, DDR4-2133MT/s
Memory Type	2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2133MHz)
DIMM Sizes	LRDIMM: 16GB, 32GB, 64GB, 128GB RDIMM: 16GB, 32GB, 64GB, 128GB
Memory Voltage	1.2V

On-Board Devices
Chipset	System on Chip
SATA	SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Graphics	1 ASPEED AST2500 BMC port(s)
Network Controllers	Dual LAN with 10Gbase-T Quad LAN with Intel® Ethernet Controller I350-AM4 Dual LAN with 10G SFP+ LAN via SoC

Input / Output
SATA	4 SATA3 port(s)
LAN	4 RJ45 Gigabit Ethernet LAN ports 2 10G SFP+ LAN ports 2 RJ45 10GBase-T ports
USB	2 USB 2.0 port(s) (2 via header) 2 USB 3.0 port(s) (2 rear)
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	1 COM Port(s) (1 header)
DOM	1 SuperDOM (Disk on Module) port with build power
TPM	1 TPM Header

Expansion Slots
PCIe	1 PCIe 3.0 x8, 1 PCIe 3.0 x16 1 Mini-PCIe
M.2	M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 SATA/PCIe 3.0 x2 Form Factor: 2280, 3042 Key: M-Key, B-Key

System BIOS
BIOS Type	128MB UEFI
BIOS Features	ACPI 6.1 SMBIOS 3.1 UEFI 2.6 PCI FW 3.2

Management
Software	KVM with dedicated LAN, IPMI2.0, Watchdog
System Management Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations	ACPI Power Management, +12V DC Power Input, CPU thermal trip support for processor protection

PC Health Monitoring
Voltage	System level control, Monitors CPU voltages, 5 -fan status, +5V standby, +5V, +3.3V, +12V, +1.5V, 5 (4-pin)
FAN	6x 4-pin fan headers (up to 6 fans) Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Dual Cooling Zone, 6 fans with tachometer status monitoring, Overheat LED indication
Other Features	RoHS, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source

Operating Environment
Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
