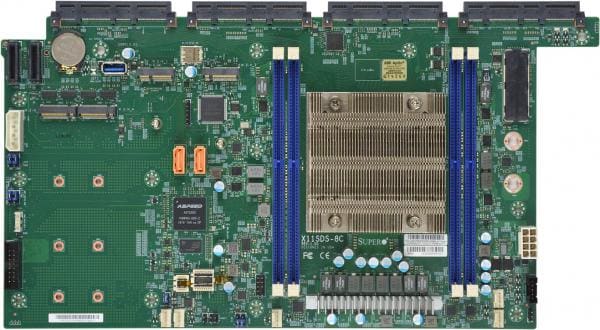

Motherboard X11SDS-8C Single Intel® Xeon® Processor D-2146NT

Intel® Xeon® Processor D-2146NT - Proprietary - System on Chip - Single - Up to 80W TDP - DDR4 RDIMM512GB - PCI-E 3.0

Loading price... (€0.00)

Loading price...

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-X11SDS-8C

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

P/N: X11SDS-8C

Key Features

Intel® Xeon® Processor D-2146NT,
8-Core, 16 Threads, 80W
Intel Quick Assist Technology
Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2133MHz in 4 DIMM slots
4 AIOM Slot for PCIe 3.0 x8 Expansion Modules
2 PCIe EDSFF-Short Drive Slots
M.2 Slots:
2 M-Keys 2242/80/110 (PCIe 3.0 x4/SATA)
1 B-Key 3042 (PCIe 3.0 x4/SATA)
1 E-Key 2230 (PCIe 3.0 x2)
Dual SFP+
Dual 10GBase-T RJ45
Single 1GBase-T RJ45
*Using AOM-SMF-TP4F
System on Chip

...

Optimized Servers

SYS-1019D-FRN5TP

Product SKUs
MBD-X11SDS-8C

Physical Stats
Form Factor	Proprietary
Dimension	13.9" x 7.25" (35.31cm x 18.42cm)

Processor
CPU	Intel® Xeon® Processor D-2146NT Single Socket FCBGA-2518 supported, CPU TDP supports Up to 80W TDP
Core	Up to 8 cores, 16 threads / 11MB Cache

System Memory
Memory Capacity	4 DIMM slots Up to 512GB ECC LRDIMM, DDR4-2133MT/s; Up to 256GB ECC RDIMM, DDR4-2133MT/s
Memory Type	2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2133MHz)
DIMM Sizes	LRDIMM: 16GB, 32GB, 64GB, 128GB RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	System on Chip
SATA	SoC controller for 2 SATA3 (6 Gbps) ports
IPMI	ASPEED AST2500
Graphics	1 ASPEED AST2500 BMC port(s)
Network Controllers	Dual LAN with 10G SFP+ Dual LAN with 10Gbase-T, *via AOM-SMF-TP4F Single LAN with 1GbE with Intel® I210

Input / Output
LAN	2 10G SFP+ LAN ports 2 RJ45 10GBase-T ports 1 RJ45 Gigabit Ethernet LAN ports
USB	1 USB 3.2 Gen1 port(s) (1 type A) * Two additional USB3.0 ports via AOM-SMF-TP4F
Video Output	1 VGA port(s)
DOM	1 SATA DOM (Disk on Module) power connector support
TPM	1 TPM Header & Chip both

Expansion Slots
PCIe	4 AIOM Expansion Slots suppporting PCIe 3.0 x8 Modules 2 PCIe EDSFF-Short Drive Slots (Shared with M.2 M-Keys)
M.2	M.2 Interface: 1 SATA/PCIe 3.0 x2/USB 3.0; 2 SATA/PCIe 3.0 x4; 1 PCIe 3.0 x2 Form Factor: 3042, 2242/2280/22110, 2230 Key: B-Key, M-Key, E-Key

System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.2 SMBIOS 3.1 UEFI 2.7 PCI FW 3.2

Management
Software	SuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations	ACPI Power Management, +12V DC Power Input

PC Health Monitoring
Voltage	VBAT, System temperature, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, Memory Voltages
LED	UID/Remote UID BMC/IPMI Heartbeat LED
Temperature	Thermal Control for 5 Fan Connectors Monitoring for CPU and chassis environment
FAN	5x 4-pin fan headers (up to 5 fans) Fan speed control 5 fans with tachometer status monitoring Pulse Width Modulated (PWM) fan connectors Support 3-pin fans (w/o speed control)
Other Features	UID, RoHS, Node Manager Support, M.2 NGFF connector, Chassis intrusion header, ACPI power management, 8-pin 12v DC power connector, Intel® QuickAssist Technology

Operating Environment
Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
