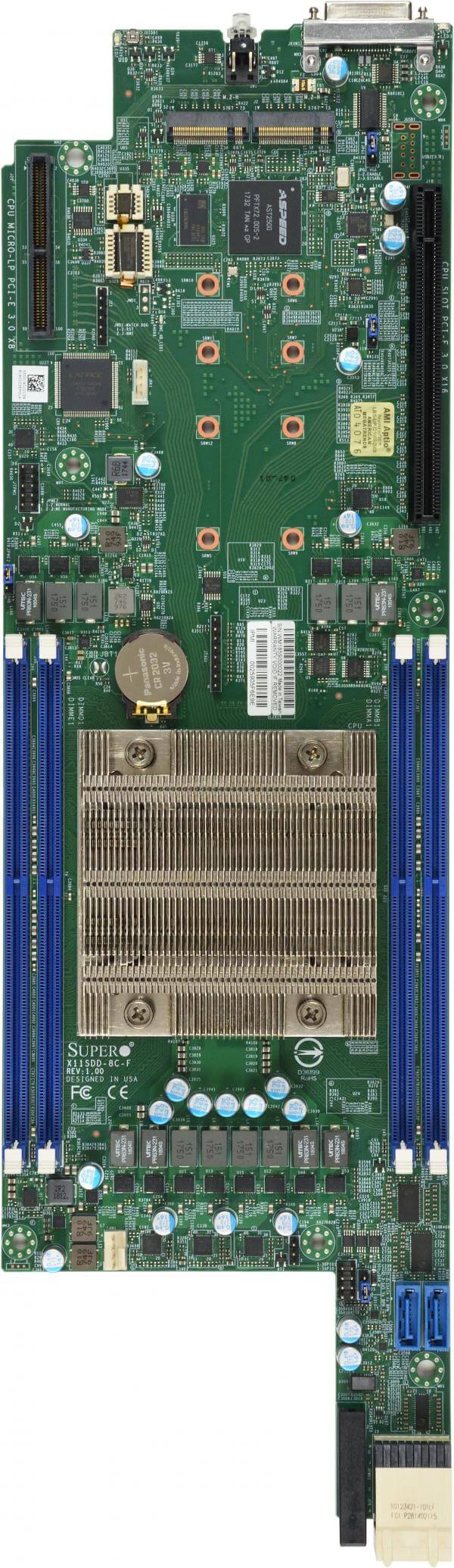

Motherboard X11SDD-18C-F Single Intel® Xeon® Processor D-2191

Intel® Xeon® Processor D-2191 - Proprietary - System on Chip - Single - Up to 86W TDP - DDR4 RDIMM512GB - PCI-E 3.0 1 x161 x8(Micro Low Profile)

Loading price... (€0.00)

Loading price...

Verzending binnen 7-10 werkdagen

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-X11SDD-18C-F

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

Now online: 9.00 am - 17.30 pm

Loading: Specificaties...

Specificaties

P/N: X11SDD-18C-F

Key Features

Intel® Xeon® processor D-2191, Single socket FCBGA 2518, 18-Core, 86W
Up to 256GB ECC RDIMM DDR4 2400MHz or 512GB LRDIMM in 4 Sockets
1 PCIe 3.0 x16, 1 PCIe 3.0 x8 (Micro LP)
2 M.2 PCIe 3.0 x4 with SATA M-Key in 2242/80/110
2 SATA3 (6Gbps ports)
1 VGA, 2 USB 2.0, 1 COM via KVM dongle
Integrated IPMI 2.0 and KVM with Dedicated LAN
Network option via Micro LP card

...

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X11SDD-18C-F

Physical Stats
Form Factor	Proprietary
Dimension	4.66" x 18.5" (11.84cm x 46.99cm)

Processor
CPU	Intel® Xeon® Processor D-2191 Single Socket FCBGA-2518 supported, CPU TDP supports Up to 86W TDP
Core	Up to 18 cores, 36 threads

System Memory
Memory Capacity	4 DIMM slots Up to 512GB ECC LRDIMM, DDR4-2400MT/s; Up to 256GB ECC RDIMM, DDR4-2400MT/s
Memory Type	2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2400MHz)
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	System on Chip
SATA	2 SATA3 (6 Gbps) ports
IPMI	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Support for Intelligent Platform Management Interface v.2.0
Graphics	1 ASPEED AST2500 BMC port(s) Via KVM Connector
Network Controllers	Single LAN with Realtek RTL8211E PHY (dedicated IPMI), via Backplane

Input / Output
USB	2 USB 2.0 port(s) (2 rear)
Video Output	1 VGA port(s)
Serial Port	1 fast UART 16550 Serial 1 COM Port(s) (1 rear), Via KVM Connector
TPM	1 TPM Header
Others	1 KVM Connector for 2USB 20 1 VGA and COM Ports

Expansion Slots
PCIe	1 PCIe 3.0 x16, 1 PCIe 3.0 x8 (Micro Low Profile)
M.2	M.2 Interface: 2 SATA/PCIe 3.0 x4 Form Factor: 2242/2260/2280/22110 Key: M-Key

System BIOS
BIOS Type	256MB SPI Flash with AMI BIOS
BIOS Features	Plug and Play (PnP) ACPI 6.2 SMBIOS 3.1 SMBIOS 2.8 UEFI 2.7 PCI FW 3.2

Management
Software	NMI, SUM, KVM with dedicated LAN, Intel® Node Manager, IPMI2.0, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor® III
System Management Software	SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SSM, SUM
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Main Switch Override Mechanism

PC Health Monitoring
Voltage	System temperature, System level control, Supports system management utility, Monitors CPU voltages, Memory, HT, 3.3V standby, 1.2V (VDIMM), +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED	UID/Remote UID BMC/IPMI Heartbeat LED CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment Adaptive Thermal Monitor, PECI 3.0
FAN	Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication
Other Features	WOL, UID, System level control, RoHS, Node Manager Support, M.2 NGFF connector, CPU thermal trip support for processor protection, ACPI power management, SDDC, Hyper-Speed Technology hardware acceleration

Operating Environment
Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)
