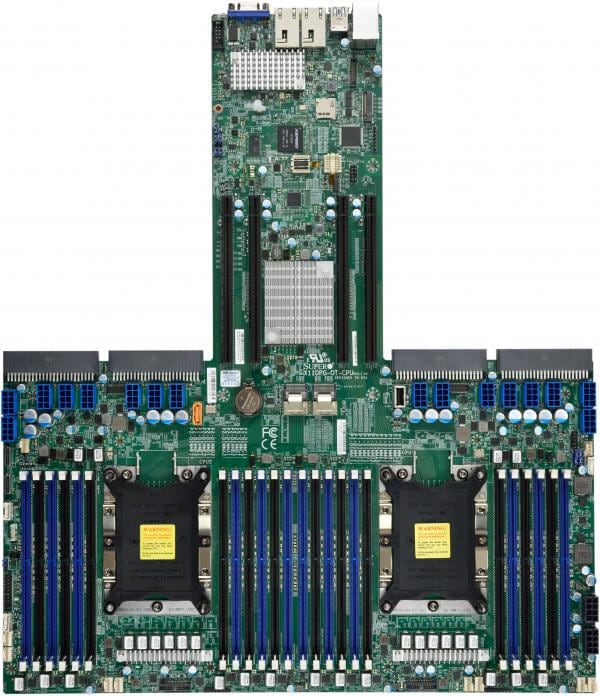

Motherboard X11DPG-OT-Dual 2nd Gen Intel® Xeon® Scalable Processor

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors - Proprietary - Intel® C622 - Dual - Up to 205W TDP - DDR4 3DS RDIMM6TB - PCI-E 3.0

Loading price... (€0.00)

Loading price...

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-X11DPG-OT-CPU

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

Now online: 9.00 am - 17.30 pm

Loading: Specificaties...

Specificaties

P/N: X11DPG-OT-CPU

Key Features

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s
Intel® C622
Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slotsUp to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
4 PCIe 3.0 x24 slots to PCIe board
M.2 Interface: 1 PCIe 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key,
2 PCIe 3.0 NVMe x4 Internal Port(s)
Dual LAN with 10Gbase-T
from C622
Intel® C622 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
1 VGA port

...

Optimized Servers

SYS-4029GP-TRT SYS-4029GP-TRT2 SYS-4029GP-TRT3 SYS-6049GP-TRT

Product SKUs
MBD-X11DPG-OT-CPU

Physical Stats
Form Factor	Proprietary
Dimension	17" x 19.5" (43.18cm x 49.53cm)

Processor
CPU	2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
Note	2933 MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro 2933 MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity	24 DIMM slots Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	LRDIMM: 128GB RDIMM: 64GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C622
SATA	Intel® C622 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Graphics	1 ASPEED AST2500 BMC port(s)
Network Controllers	Dual LAN with 10Gbase-T, from C622

Input / Output
USB	4 USB 3.2 Gen1 port(s) (4 rear) 1 USB 2.0 port(s) (1 Type A)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 rear)
DOM	1 SuperDOM (Disk on Module) ports
TPM	1 TPM Header

Expansion Slots
PCIe	4 PCIe 3.0 x24 slots to PCIe board
M.2	M.2 Interface: 1 PCIe 3.0 x4 Form Factor: 2280, 22110 Key: M-Key

System BIOS
BIOS Type	AMI UEFI

Management
Software	SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog

PC Health Monitoring
Voltage	Monitors CPU voltages, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support
FAN	10x 4-pin fan headers (up to 10 fans) PWM fan speed control Overheat LED indication
Other Features	UID Chassis intrusion header ACPI power management SDDC
