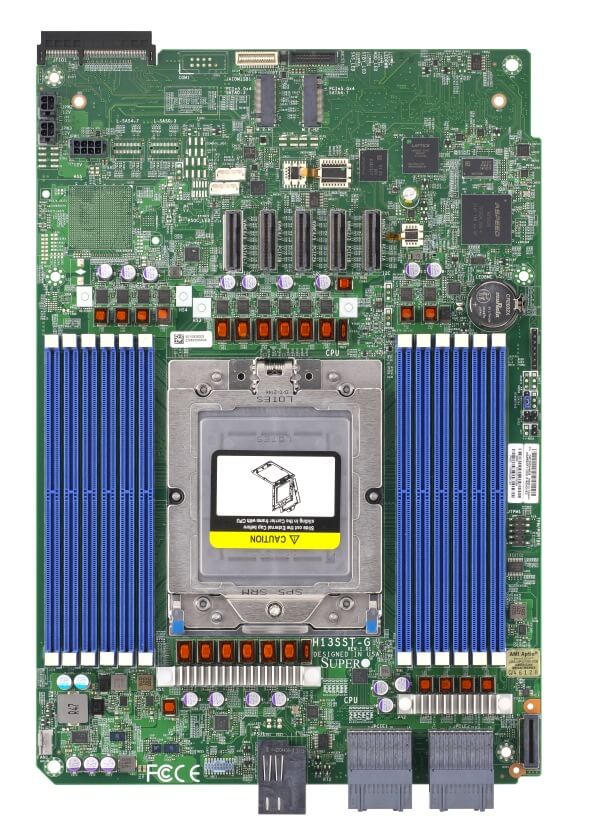

Motherboard H13SST-G Single EPYC™ 9004 series Processor

AMD EPYC™ 9004 series Processors - Proprietary GrandTwin - System on Chip - Single - Up to 400W TDP - DDR5 3DS RDIMM3TB - PCI-E 3.0

Loading price... (€0.00)

Loading price...

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-H13SST-G

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

P/N: H13SST-G

Key Features

AMD EPYC™ 9004 series Processors
System on Chip
Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots
AMD FCH controller for 8 SATA3 (6 Gbps) ports;
1x PCIe 4.0 x8 4C connector (for front I/O module), 5x PCIe 5.0 x8 MCIO connectors
M.2 Interface: 2 SATA/PCIe 4.0 x4, M.2 Form Factor: 2280

...

Optimized Servers

AS -2115GT-HNTR AS -2115GT-HNTF

Product SKUs
MBD-H13SST-G

Physical Stats
Form Factor	Proprietary GrandTwin
Dimension	8.53" x 12.42" (21.67cm x 31.55cm)

Processor
CPU	AMD EPYC™ 9004 series Processors Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
Core	Up to 128 cores, 256 threads

System Memory
Memory Capacity	12 DIMM slots Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MT/s
Memory Type	4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
DIMM Sizes	16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	System on Chip
IPMI	ASPEED AST2600 BMC
Graphics	1 Aspeed AST2600 BMC port(s)
Network Controllers	N/A

Input / Output
TPM	1 TPM Header
Others	4 MCIO (PCIe 5.0 x8) Port(s) 1 MCIO (PCIe 5.0 x8/SATA3) Port(s)

Expansion Slots
PCIe	1 PCIe 4.0 x8 4C Slot
M.2	M.2 Interface: 2 SATA/PCIe 4.0 x4 Form Factor: 2280 Key: M-Key

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support

Management
Software	Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
Power Configurations	ACPI Power Management, Power-on mode control for AC power loss recovery

PC Health Monitoring
Voltage	VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
LED	UID/Remote UID BMC/IPMI Heartbeat LED
Other Features	RoT
FAN	1x 4-pin fan header (up to 1 fan)

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
