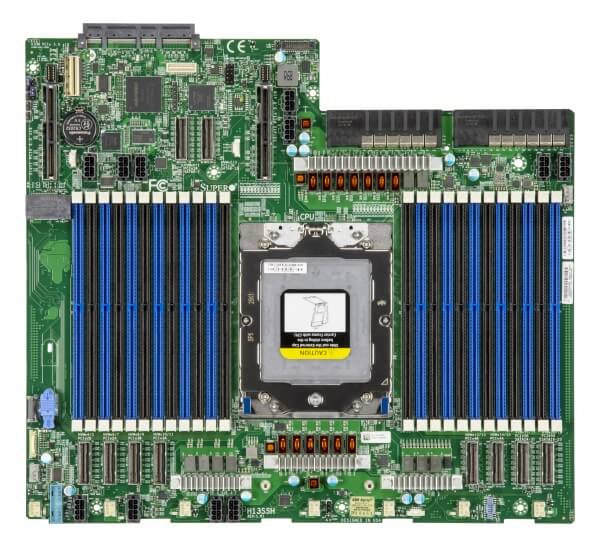

Motherboard H13SSH Single EPYC™ 9004 series Processor

AMD EPYC™ 9004 series Processors - Proprietary - System on Chip - Single - Up to 400W TDP - DDR5 3DS RDIMM6TB - PCI-E 3.0

Loading price... (€0.00)

Loading price...

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-H13SSH

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

P/N: H13SSH

Key Features

AMD EPYC™ 9004 series Processors
System on Chip
Up to 6TB 3DS ECC RDIMM, DDR5-4800MHz in 24 DIMM slots
2 PCIe 5.0 x16 Molex Impel plus connector
24 NVMe (PCIe 5.0 x8), 32 SATA 3.0 Hybrid ports
4 USB 3.0 ports (2 rear via riser + 2 via header)
M.2 Interface: 1 PCIe 3.0 x4, 1 PCIe 3.0 x2; M.2 Form Factor: 22110, 22110

...

Optimized Servers

AS -1115HS-TNR AS -2015HS-TNR AS -2115HS-TNR

Product SKUs
MBD-H13SSH

Physical Stats
Form Factor	Proprietary
Dimension	13" x 11" (33.02cm x 27.94cm)

Processor
CPU	AMD EPYC™ 9004 series Processors Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
Core	Up to 128 cores, 256 threads

System Memory
Memory Capacity	24 DIMM slots Up to 6TB 3DS ECC Registered RDIMM, DDR5-4800MT/s
Memory Type	4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
DIMM Sizes	16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	System on Chip
Graphics	1 Aspeed AST2600 BMC port(s)
Network Controllers	N/A

Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port
USB	2 USB port(s) (2 USB) 4 USB 3.0 port(s) (4 via header)
TPM	1 TPM Header
Others	10 MCIO (PCIe 5.0 x8) Port(s)

Expansion Slots
PCIe	1 PCIe 5.0 x16 Right Riser Slot, 1 PCIe 5.0 x16 Left Riser Slot
M.2	M.2 Interface: 1 PCIe 3.0 x4; 1 PCIe 3.0 x2 Form Factor: 22110, 22110 Key: M-Key, M-Key

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support

Management
Software	Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
Power Configurations	ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism

PC Health Monitoring
Voltage	CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
LED	UID/Remote UID BMC/IPMI Heartbeat LED CPU / System Overheat LED
FAN	7x 6-pin fan headers (up to 7 fans)

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
