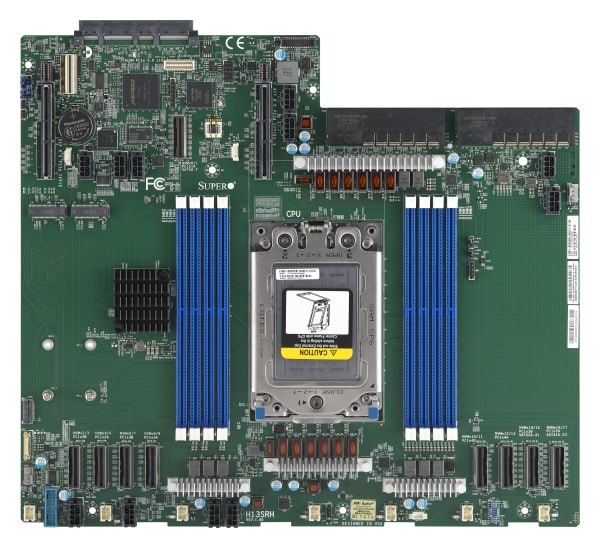

Motherboard H13SRH Single Ryzen™ Threadripper™ PRO 7000 WX-Series

AMD Ryzen™ Threadripper™ PRO 7000 WX-Series - Proprietary - WRX90 - Single - Up to 350W TDP - 2TB - PCI-E 3.0

Loading price... (€0.00)

Loading price...

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-H13SRH

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

P/N: H13SRH

Key Features

AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processor
Single socket sTR5, LGA-4844, Up to 350W TDP, Overclocking supported
AMD WRX90
Up to 2TB of memory with speeds of 5200+MT/s (1DPC) with overclocking support
**Max. capacity up to 8TB *Currently the largest capacity on the market is 256GB/per DIMM
**Memory addressing up to 1TB/channel is subject to AMD Infrastructure Roadmap for Socket sTR5 Processors
M.2 Interface: 2 PCIe 4.0 x4 (RAID 0, 1)
M.2 Form Factor: 2280/22110
M.2 Key: M-Socket
4 PCIe 5.0 x16 MCIO connectors for 8 NVMe/SATA drives
4 PCIe 5.0 x8 MCIO connectors
1 PCIe 5.0 x16 for 2nd AIOM
2 PCIe 5.0 x16 for Riser
Overclocking supported on CPU and RDIMM

...

Optimized Servers

AS -2115HV-TNRT

Product SKUs
MBD-H13SRH

Physical Stats
Form Factor	Proprietary
Dimension	13" x 11.5" (33.02cm x 29.21cm)

Processor
CPU	AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Single Socket LGA-4844 (Socket sTR5) supported, CPU TDP supports Up to 350W TDP
Core	Up to 96 cores, 192 threads

System Memory
Memory Capacity	8 DIMM slots Up to 2TB ECC Registered RDIMM/3DS RDIMM, DDR5-5200MT/s
Memory Type	4800 MT/s ECC DDR5 RDIMM/3DS RDIMM
DIMM Sizes	16GB, 32GB, 64GB, 128GB, 256GB RDIMM/3DS RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.1.V

On-Board Devices
Chipset	WRX90
Network Controllers	N/A

Input / Output
USB	1 USB 3.2 Gen2x2 port(s) (1 via header)
TPM	1 TPM Header

Expansion Slots
PCIe	4 PCIe 5.0 x8, Metal armor protection, support 2 dual/single-width GPU cards, 2 PCIe 5.0 x16, Riser card PN: RSC-H-68G5 or RSC-H-68G5+ RSC-H-A6G5H(2 PCIe x16; Slot5, 7), 1 PCIe 5.0 x16 AIOM Slot, for 2nd AIOM
M.2	M.2 Interface: 2 PCIe 4.0 x4, RAID 0, 1 Form Factor: 2280/22110 Key: M-Key

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.5 SMBIOS 3.6 or later UEFI 2.9 RTC (Real Time Clock) Wakeup

Management
Software	Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management, S4/S5

PC Health Monitoring
Voltage	System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +3.3V, +12V, CPU thermal trip support, Vmem, GPU temperature, Vcore, PWM fan speed control, 3x 4-pin fan headers
FAN	7x 6-pin fan headers (up to 7 fans) Fan speed control

Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)
