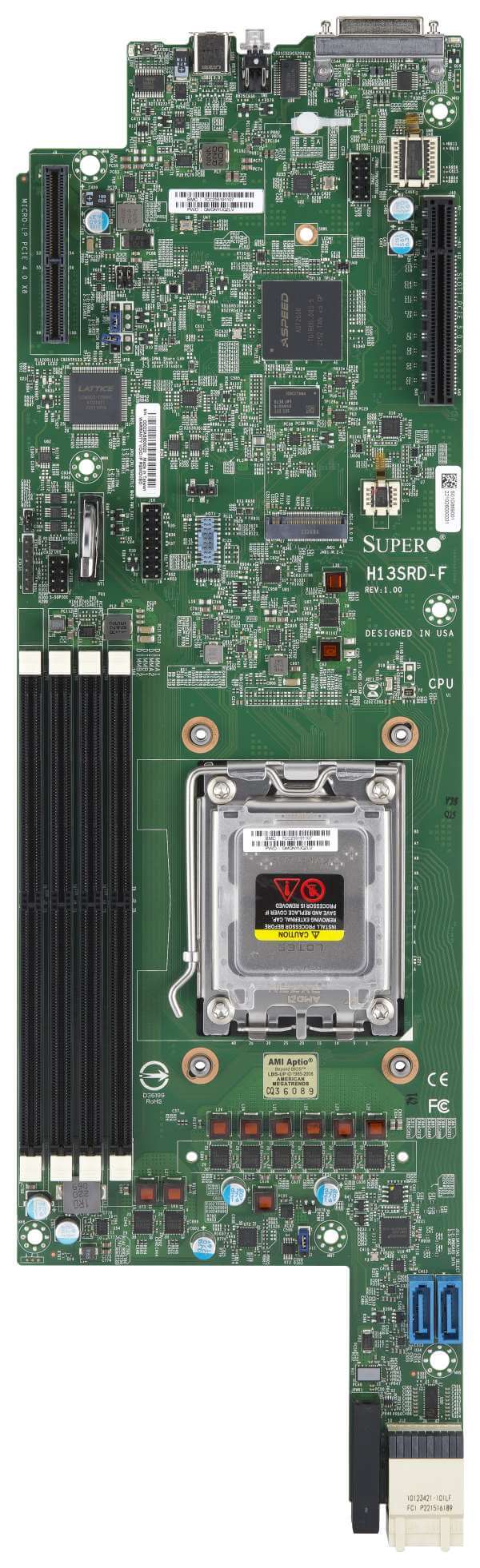

Motherboard H13SRD-F Single EPYC™ 4004 series Processor

AMD EPYC™ 4004 series Processors - Proprietary - System on Chip - Single - Up to 170W TDP - DDR5 3DS UDIMM192GB - PCI-E 3.0

Loading price... (€0.00)

Loading price...

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-H13SRD-F

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

P/N: H13SRD-F

Key Features

AMD EPYC™ 4004 series Processors, Single Socket LGA-1718 (Socket AM5) supported,APU TDP supports Up to 170W TDP.
Up to 192GB ECC/non-ECC Unbuffered DIMM, DDR5-5200MHz, in 4 DIMM slots.
1 PCIe 5.0 x8 (Micro Low Profile)
1 PCIe 5.0 x8 (Low Profile, Open End).
1 VGA Port;2 USB 2.0 Ports; 1 Serial Port via KVM Connector.
1 LAN port;Realtek RTL8211FS PHY for dedicated IPMI.
M.2 Interface:PCIe 5.0 x2,M.2 Form Factor: 2280/22110.

...

Optimized Servers

AS -3015MR-H8TNR

Product SKUs
MBD-H13SRD-F

Physical Stats
Form Factor	Proprietary
Dimension	4.75" x 15.69" (12.07cm x 39.85cm)

Processor
CPU	AMD EPYC™ 4004 series Processors Single Socket Socket AM5 (LGA-1718) supported, CPU TDP supports Up to 170W TDP
Core	Up to 16 cores, 32 threads

System Memory
Memory Capacity	4 DIMM slots Up to 192GB Unbuffered 3DS ECC/non-ECC UDIMM, DDR5-5200MT/s
Memory Type	5200/4800/3600 MT/s Up to 192GB of memory with speeds of up to 5200MT/s (2DPC)/ 3600MT/s (1DPC)
DIMM Sizes	8GB, 16GB, 32GB, 48GB
Memory Voltage	1.1V
Error Detection	Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	System on Chip
IPMI	ASPEED AST2600 BMC
Network Controllers	Single LAN with ASPEED AST2600 BMC, Via BPN connector

Input / Output
SATA	2 SATA port(s) Link to AOC SAS Card
USB	1 USB 3.2 Gen2 port(s) (1 type C) 2 USB 2 port(s) (2 rear Via KVM connector)
Video Output	1 VGA port(s) Via KVM connector
Serial Port	1 COM Port(s) (1 Serial Port Via KVM connector)
TPM	1 TPM Header & Chip both

Expansion Slots
PCIe	1 PCIe 5.0 x8 (Low Profile), 1 PCIe 5.0 x8 (Micro Low Profile)
M.2	M.2 Interface: 1 PCIe 5.0 x2 Form Factor: 2280/22110 Key: M-Key

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support

Management
Power Configurations	ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN

PC Health Monitoring
Voltage	VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby, 1-fan status
LED	UID/Remote UID Power LED BMC/IPMI Heartbeat LED CPU / System Overheat LED
FAN	Low noise fan speed control

Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)
