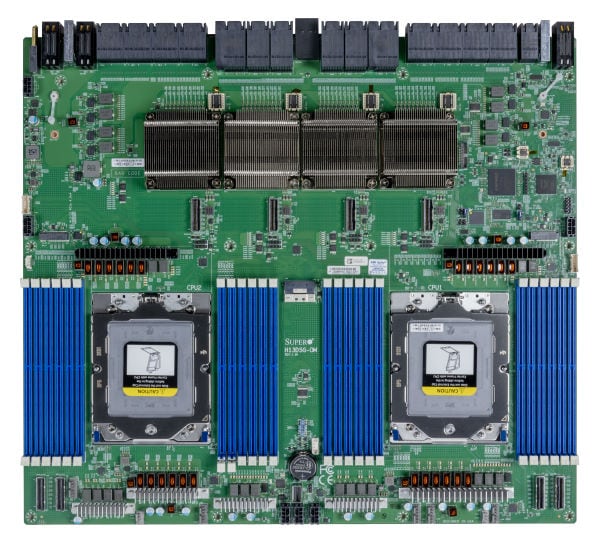

Motherboard H13DSG-OM Dual EPYC™ 9004 series Processor

AMD EPYC™ 9004 series Processors - Proprietary - System on Chip - Dual - Up to 400W TDP - DDR5 3DS RDIMM6TB - PCI-E 3.0

Loading price... (€0.00)

Loading price...

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-H13DSG-OM

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

Now online: 9.00 am - 17.30 pm

Loading: Specificaties...

Specificaties

P/N: H13DSG-OM

Key Features

AMD EPYC™ 9004 series Processors
Up to 6TB 3DS ECC RDIMM, DDR5-4800MHz in 24 DIMM slots
6 PCIe 5.0 x8 MCIO connectors; 2 SATA3 / PCIe 5.0 Hybrid x8 MCIO connectors
2 USB 3.0 ports via I/O board
Integrated IPMI 2.0 + KVM with dedicated LAN
ASPEED AST2600 BMC graphics
M.2 Interface: 2 PCIe 3.0 x4; M.2 Form Factor: 22110, 22110

...

Optimized Servers

AS -8125GS-TNMR2 AS -4125GS-TNHR2-LCC

Product SKUs
MBD-H13DSG-OM

Physical Stats
Form Factor	Proprietary
Dimension	17" x 14.96" (43.18cm x 37.99cm)

Processor
CPU	AMD EPYC™ 9004 series Processors Dual Socket SP5 supported, CPU TDP supports Up to 400W TDP
Core	Up to 256 cores, 512 threads

System Memory
Memory Capacity	24 DIMM slots Up to 6TB 3DS ECC Registered RDIMM, DDR5-4800MT/s
Memory Type	4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
DIMM Sizes	16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	System on Chip
IPMI	ASPEED AST2600 BMC
Network Controllers	N/A

Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port via I/O board
TPM	1 TPM Header
Others	2 MCIO (PCIe 5.0 x8/SATA3) Port(s) 6 MCIO (PCIe 5.0 x8) Port(s)

Expansion Slots
PCIe	N/A
M.2	M.2 Interface: 2 PCIe 3.0 x4 Form Factor: 2280/22110 Key: M-Key

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support

Management
Software	Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management

PC Health Monitoring
Voltage	VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support
LED	UID/Remote UID Power LED CPU / System Overheat LED BMC Heartbeat LED
Other Features	RoT
FAN	5x 6-pin fan headers (up to 5 fans)

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
