Key Features
- AMD EPYC™ 9005 series Processors
- System on Chip
- Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s (Please check System Memory Section for detail)
- 3 PCIe 5.0 x16, 2 PCIe 5.0 x8
- 2x 10GBase-T LAN Ports via Broadcom BCM57416
- Up to 6 USB 3.0 ports(4 rear + 2 via header)
- 8 SATA3
- ASPEED AST2600 BMC graphics
- 6 PWM 4-pin Fans with tachometer status monitoring
- M.2 Interface: 2 PCIe 4.0 x4, M.2 Form Factor: 2280, 22110

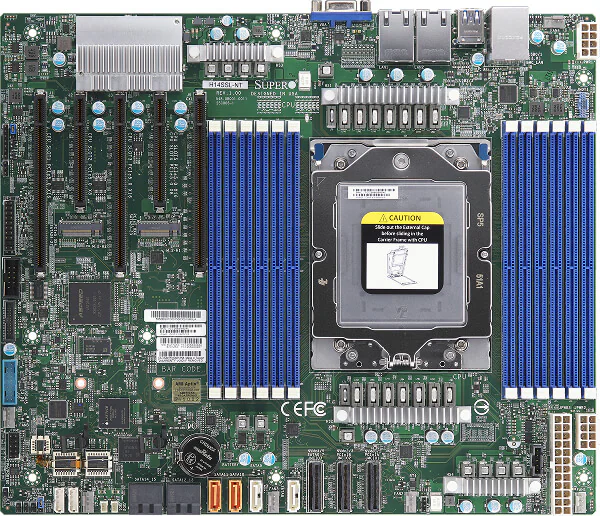

H14 UP Mainstream Server Board (MBD-H14SSL-NT)
Key Features
- AMD EPYC™ 9005 series Processors
- System on Chip
- Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s (Please check System Memory Section for detail)
- 3 PCIe 5.0 x16, 2 PCIe 5.0 x8
- 2x 10GBase-T LAN Ports via Broadcom BCM57416
- Up to 6 USB 3.0 ports(4 rear + 2 via header)
- 8 SATA3
- ASPEED AST2600 BMC graphics
- 6 PWM 4-pin Fans with tachometer status monitoring
- M.2 Interface: 2 PCIe 4.0 x4, M.2 Form Factor: 2280, 22110
Vraag gratis offerte aan voor prijsinformatie. Binnen 1 werkdag ontvangt u een prijsopgave van een expert.
Supermicro Product ID: MBD-H14SSL-NT
Hulp Nodig? Contacteer onze experts
Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur
| Product SKUs | |
|---|---|
| MBD-H14SSL-NT | |
| Physical Stats | |
| Form Factor | ATX |
| Dimension | 12" x 10.1" (30.48cm x 25.65cm) |
| Processor | |
| CPU | Single Socket SP5 AMD EPYC™ 9005 Series Processors |
| Core Count | Up to 192C/384T |
| Note | Supports up to 500W TDP CPUs |
| System Memory | |
| Memory | Slot Count: 12 DIMM Slots |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Controller | Dual LAN with Broadcom BCM57416 10GBase-T |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB | 2 USB 3 port(s) (Header) 4 USB 3 port(s) |
| Video | 1 VGA port(s) |
| Serial | 1 COM port(s) (header) |
| TPM | 1 TPM header |
| Others | 1 MCIO (PCIe 5.0 x8/SATA3) Hybrid port(s) 2 MCIO (PCIe 5.0 x8/SATA3) port(s) |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | 3 PCIe 5.0 x16 (in x16) slots 2 PCIe 5.0 x8 slots |
| M2 | 2 M.2 PCIe 4.0 x4 SATA slots (M-key 2280/22110) |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! Plug-ins for 3rd Party Software |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring | |
| Voltage | +12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,VBAT,VRM temperature |
| LED | BMC/IPMI Heartbeat LED UID/remote UID LED |
| FAN | 6x 4-pin fan headers (up to 6 fans) |
| Other Features | RoT |
