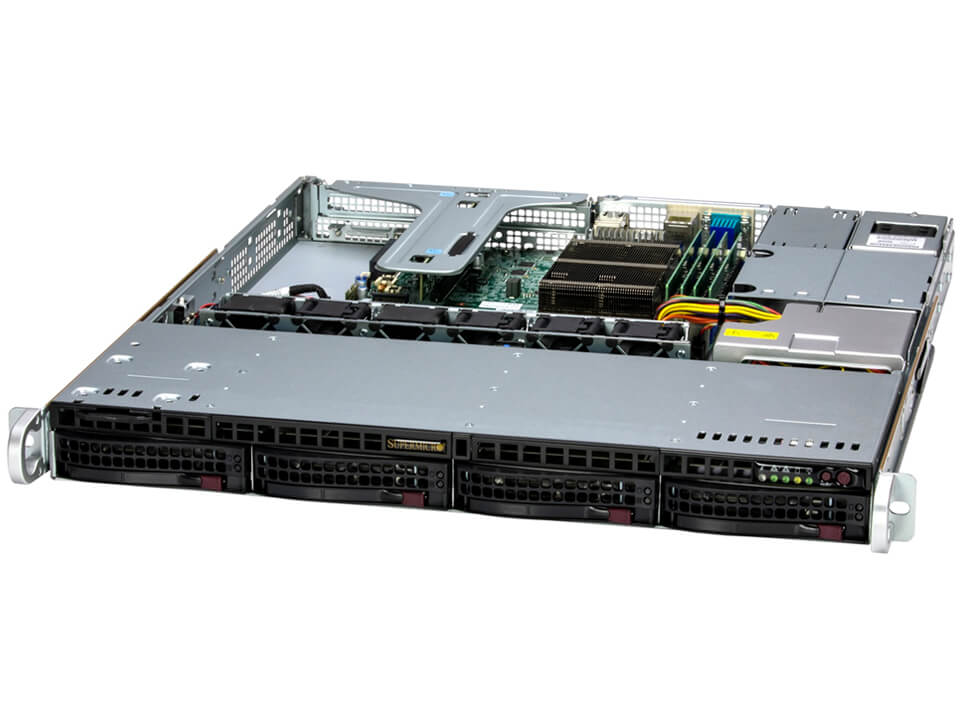

1U UP SuperServer SYS-511R-M (SYS-511R-M)

UP 1U X13SCH-SYS, CSE-813MF2TS-R0RCNBP,PWS-602A-1R,HF,R

Loading price... (€1264.45)

Loading price...

Verzending binnen 10-15 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-511R-M

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Web/Hosting Application
Email/Firewall/Print Server
General Purpose

Key Features

Single Socket V0 (LGA-1700) supports Intel® Xeon® E-2400 series, Intel® Pentium® processors
4 DIMMs; Up to 128GB of DDR5 ECC UDIMM memory with speeds of up to 4400MHz
- 1 PCIe 5.0 x16 or 2 PCIe 5.0 x8 (FHHL & LP);
- 1 Dedicated Internal HBA slot
Intel® Ethernet Controller i210 2x 1GbE RJ45
Default single Titanium 600W Power Supply; Optional redundant power by adding 1x Power Supply Module

...

Buy Now

Product SKUs
SuperServer SYS-511R-M

Motherboard
Super X13SCH-SYS

Processor
CPU	Single processor(s) Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors
Core Count	Up to 8C/16T; Up to 24MB Cache
Note	Supports up to 95W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 4 DIMM slots/2 Channels Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset	Intel® C266
Network Connectivity	2 RJ45 1GbE with Intel® I210 View AOC Options

Input / Output
LAN	2 RJ45 1 GbE LAN port(s) 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)
USB	4 USB 2.0 port(s) (header) 2 USB 3.2 Gen1 Type-A port(s) (rear) 2 USB 2.0 Type-A port(s) (rear) 2 USB 3.2 Gen1 port(s) (Header) 1 USB 3.2 Gen1 Type-A port(s) (Header)
Video	1 VGA port(s)
Serial	1 COM port(s) (Rear) 1 COM port(s) (Header)
TPM	1 TPM header

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 6 + 1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
