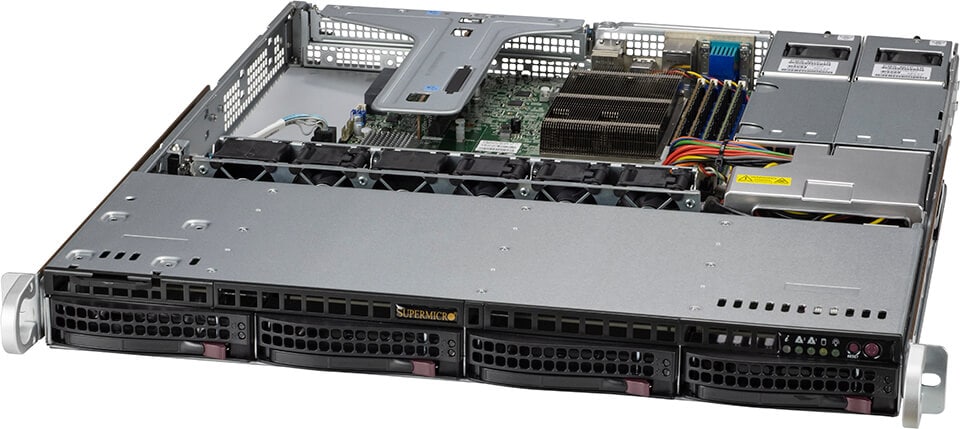

1U UP SuperServer SYS-510T-MR (SYS-510T-MR)

UP 1U X12STH-SYS, CSE-813MF2TQ-R407RCBP,HF,RoHS

Loading price... (€1270.50)

Loading price...

Verzending binnen 14-21 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-510T-MR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

Now online: 9.00 am - 17.30 pm

Loading: Specificaties...

Specificaties

Key Applications

Virtualization
Small Business
Encoding Decoding

Key Features

Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors
4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz
- 1 PCIe 4.0 x16 or 2 PCIe 4.0 x8 (FHHL);
- 1 Dedicated Internal HBA slot
Intel® Ethernet Controller i210 2x 1GbE RJ45
Redundant Platinum 400W Power Supply

...

Get Pricing

Product SKUs
SuperServer SYS-510T-MR Standard version with PWS-407P-1R (Platinum Level)
SuperServer SYS-510T-MR-EU European version with PWS-602A-1R (Titanium Level)

Motherboard
Super X12STH-SYS

Processor
CPU	Single Socket H5 (LGA-1200) Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors
Core Count	Up to 8C/16T; Up to 16MB Cache
Note	Supports up to 95W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 1 single-width GPU(s)
Supported GPU	NVIDIA PCIe: T400, T1000 View GPU Options
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect

System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset	Intel® C256
Network Connectivity	2 RJ45 1GbE with Intel® I210 View AOC Options

Input / Output
LAN	2 RJ45 1 GbE LAN port(s) 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1)
USB	4 USB 2.0 port(s) (header) 2 USB 3.2 Gen1 Type-A port(s) (rear) 2 USB 2.0 Type-A port(s) (rear) 2 USB 3.2 Gen1 port(s) (Header) 1 USB 3.2 Gen1 Type-A port(s) (Header)
Video	1 VGA port(s)
Serial	1 COM port(s) (Rear) 1 COM port(s) (Header)
DOM	2 SuperDOM (Disk on Module) port(s) with built-in power
TPM	1 TPM header

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 6 + 2 + 1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
