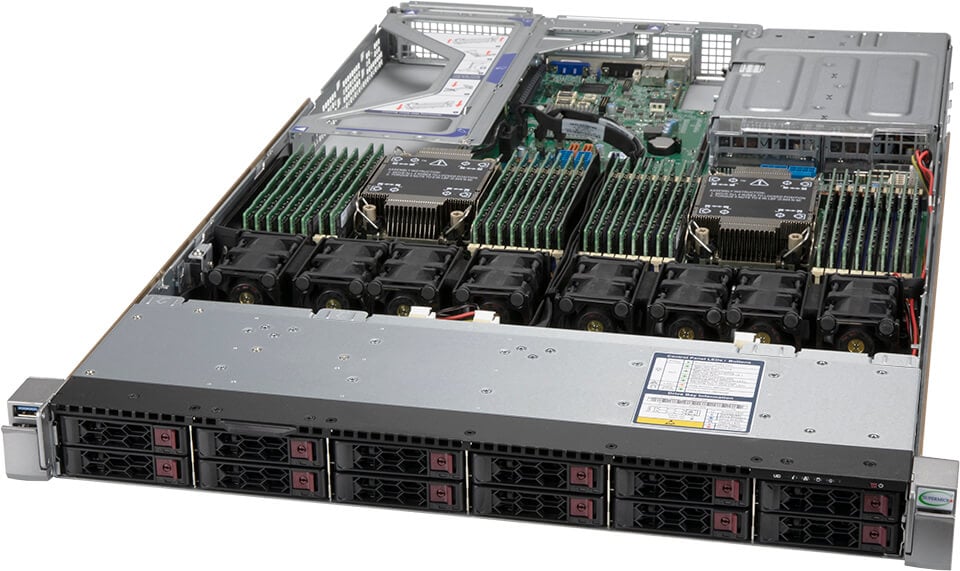

1U Ultra SuperServer SYS-120U-TNR (SYS-120U-TNR)

Ultra 1U, 12x2.5" NVMe, X12DPU-6, 119UH3TS-R1K22P-T

Loading price... (€2450.25)

Loading price...

Verzending binnen 10-15 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-120U-TNR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Virtualization
HPC
Cloud Computing
High End Enterprise Server
Software Defined Storage
Application Tier Service Provider
5G/Telco

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
- 2 PCIe 4.0 x16 (FH, 10.5"L)
- 1 PCIe 4.0 x16 (LP)
- 1 Internal PCIe 4.0 x16
Flexible networking options
12x2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
8 heavy duty fans with optimal fan speed control
1200W redundant Titanium level power supplies

...

Product SKUs
SuperServer SYS-120U-TNR

Motherboard
Super X12DPU-6

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 2 double-width or 2 single-width GPU(s)
Supported GPU	NVIDIA PCIe: T4, A16, A2, A100 View GPU Options
Certification

System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support View NVMe Options
Chipset	Intel® C621A
Network Connectivity	2 RJ45 10GBASE-T with Intel® X710-AT2 (optional) 2 RJ45 10GBASE-T with Intel® X710-TM4 (optional) 2 SFP+ 10GbE with Intel® X710-TM4 (optional) No NIC option supported View Network Card (AOC) Options View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 3.0 port(s) (rear) 1 USB 3.0 port(s) (front)
Video	1 VGA port(s)
DOM	2 SuperDOM (Disk on Module) port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
