8U GPU A+ Server AS -8125GS-TNMR2 (AS -8125GS-TNMR2)

8U GPU A+ Server AS -8125GS-TNMR2 (AS -8125GS-TNMR2) thumbnail

Supermicro

8U GPU A+ Server AS -8125GS-TNMR2 (AS -8125GS-TNMR2)

Key Features

8x NIC for GPU direct RDMA (1:1 GPU Ratio)High density 8U system with AMD Instinct MI300X 8-GPU
Supports up to 24 DIMMs Slots; 6000 MT/s 6TB DDR5 memory(Please check System Memory Section for detail)
8x PCIe 5.0 x16 LP + up to 4 PCIe 5.0 X16 FHFL slots
Flexible networking options
Total of 2 Hot-swap 2.5" SATA drive baysSingle M.2 NVMe for boot drive onlyUp to 16 hot-swap 2.5" NVMe drive bays (12 default + 4 optional)
10 heavy duty fans with optimal fan speed control
Total of 6x (3+3) 3000W Redundant Titanium Level Power Supplies(Power supply full redundancy based on configuration and application load)

Loading price... (€19624.60)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: AS-8125GS-TNMR2

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

High Performance Computing
AI/Deep Learning Training
Industrial Automation, Retail
Climate and Weather Modeling

Key Features

- 8 NIC for GPU direct RDMA (1:1 GPU Ratio)

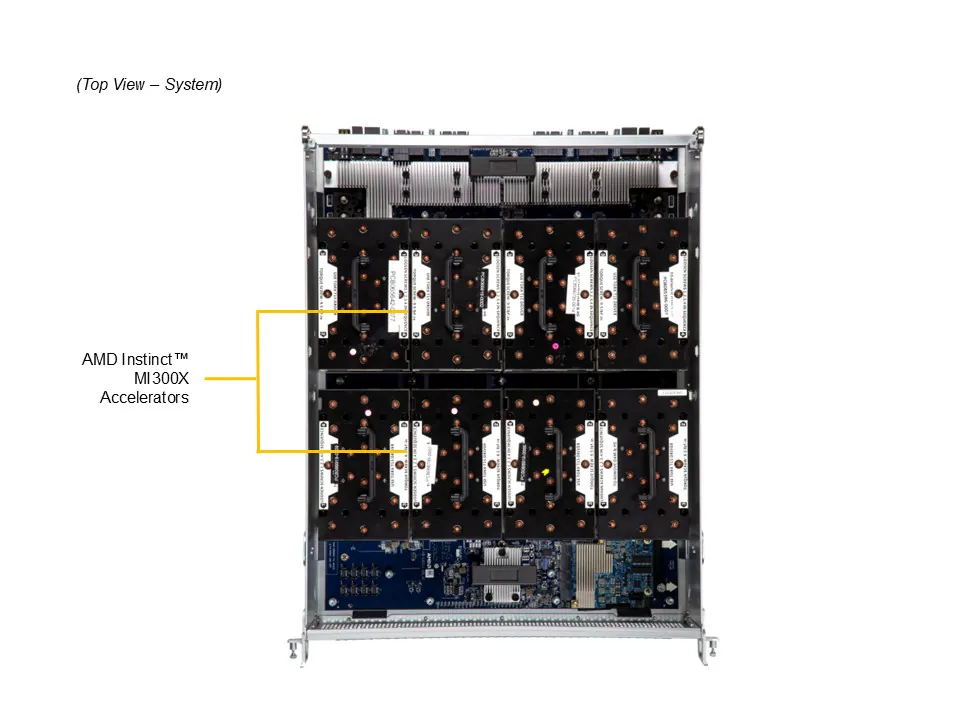

- High density 8U system with AMD Instinct MI300X 8-GPU
24 DIMM Slots; Up to 6TB DRAM; 4800 ECC DDR5 LRDIMM;RDIMM;
8 PCIe Gen 5.0 X16 LP, and up to 4 PCIe Gen 5.0 X16 FHFL Slots
Flexible networking options

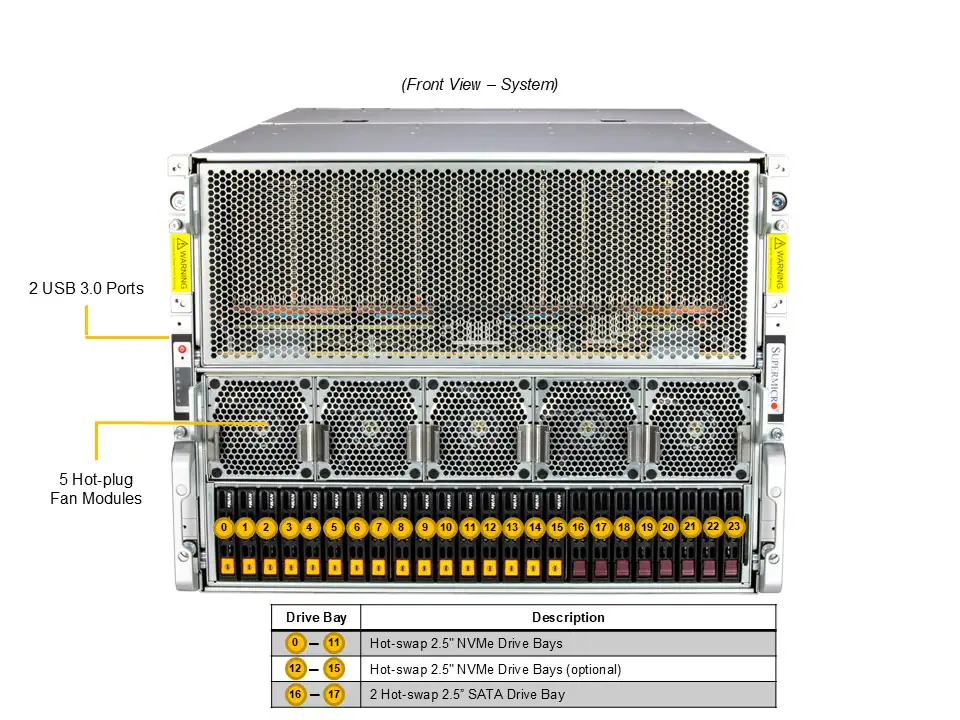

- 2x 2.5" Hot-swap SATA drive bays
- 1 M.2 NVMe for boot drive only
- up to 16x 2.5" Hot-swap NVMe drive bays (12 by default + 4 optional)
10 heavy duty fans with optimal fan speed control

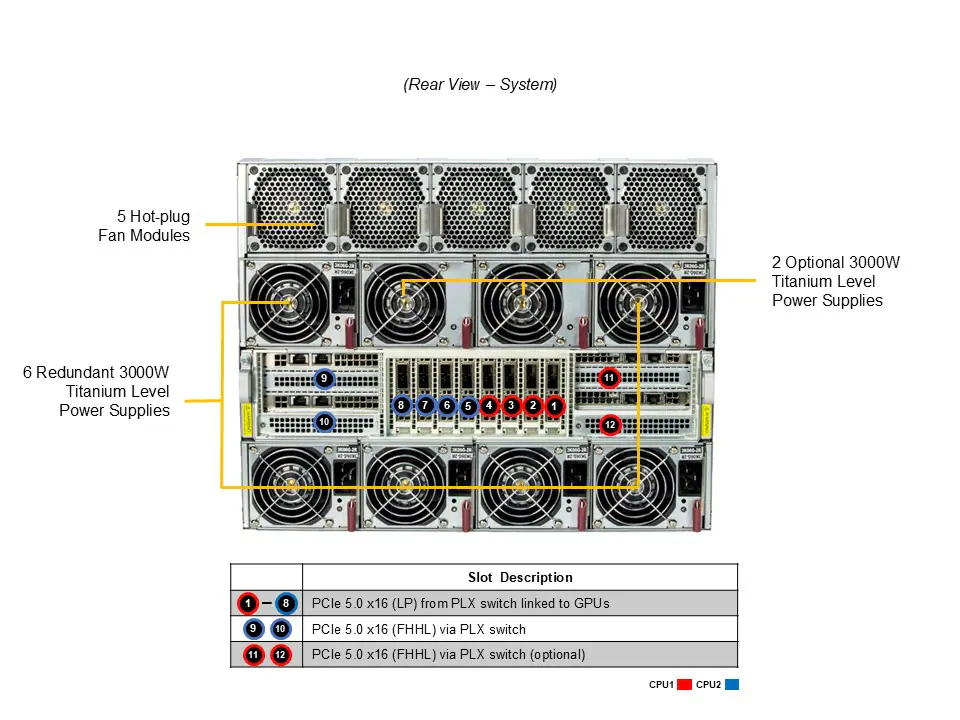

6x 3000W redundant Titanium level power supplies

...

Get Pricing

Product SKUs
A+ Server AS -8125GS-TNMR2

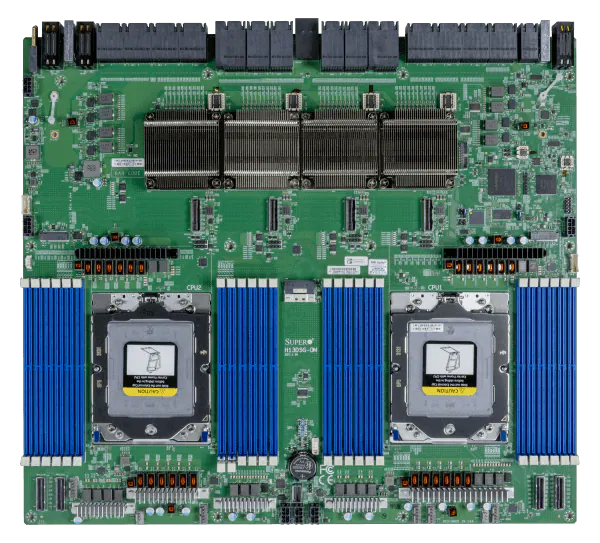

Motherboard
Super H13DSG-OM

Processor
CPU	Dual Socket SP5 AMD EPYC™ 9004 Series Processors
Note	Supports up to 400W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 8 onboard GPU(s)
Supported GPU	AMD: Instinct MI300X Accelerators View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	AMD Infinity Fabric™ Link

System Memory
Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
Chipset	AMD SP5
Network Connectivity	View AOC Options

Input / Output
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
