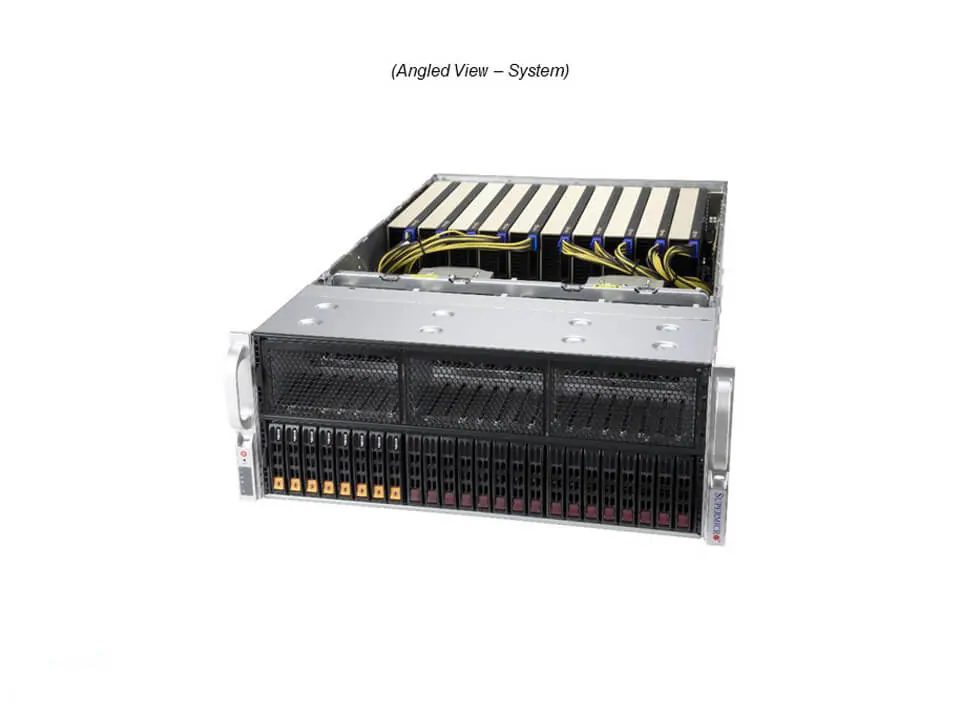

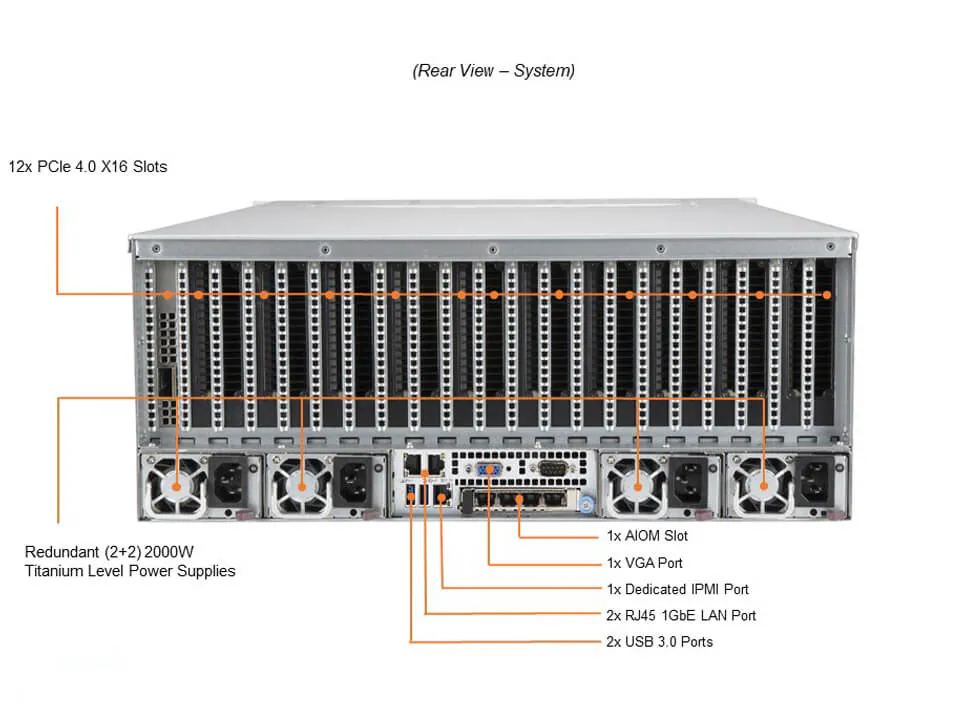

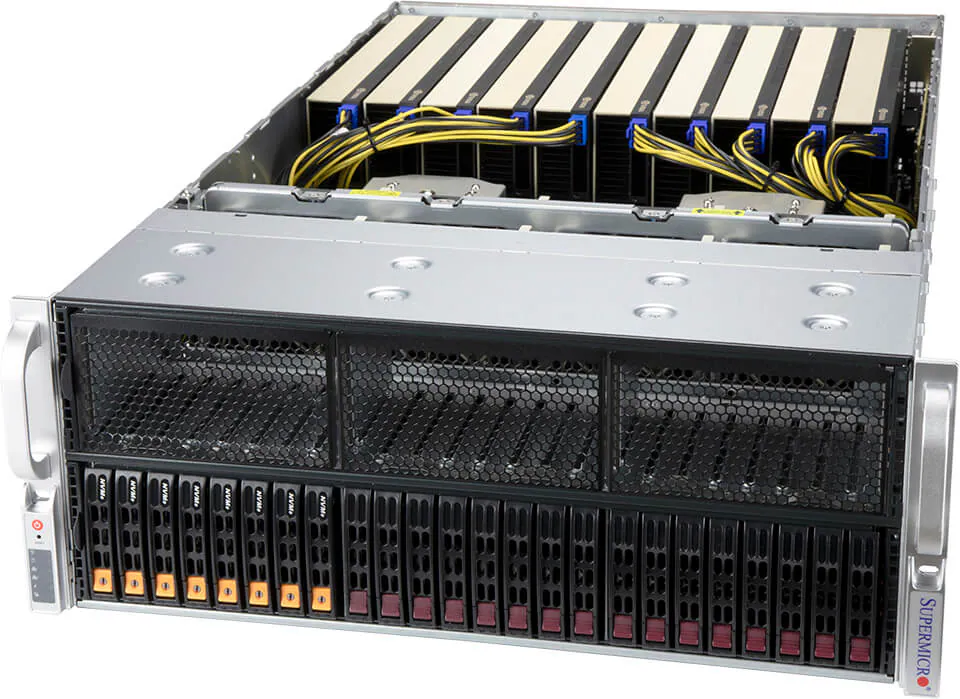

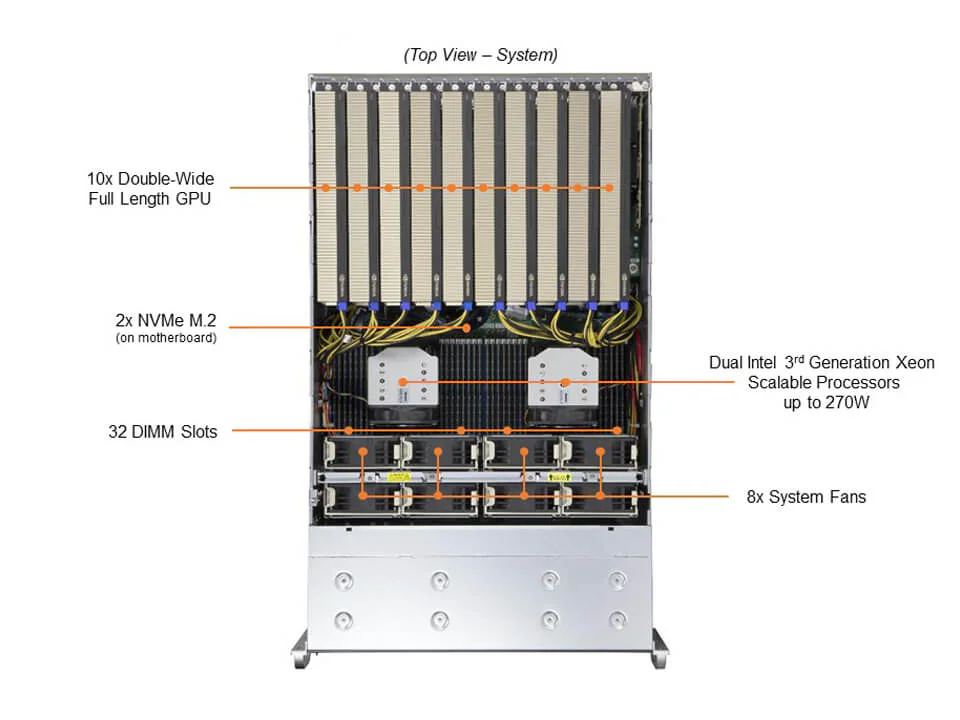

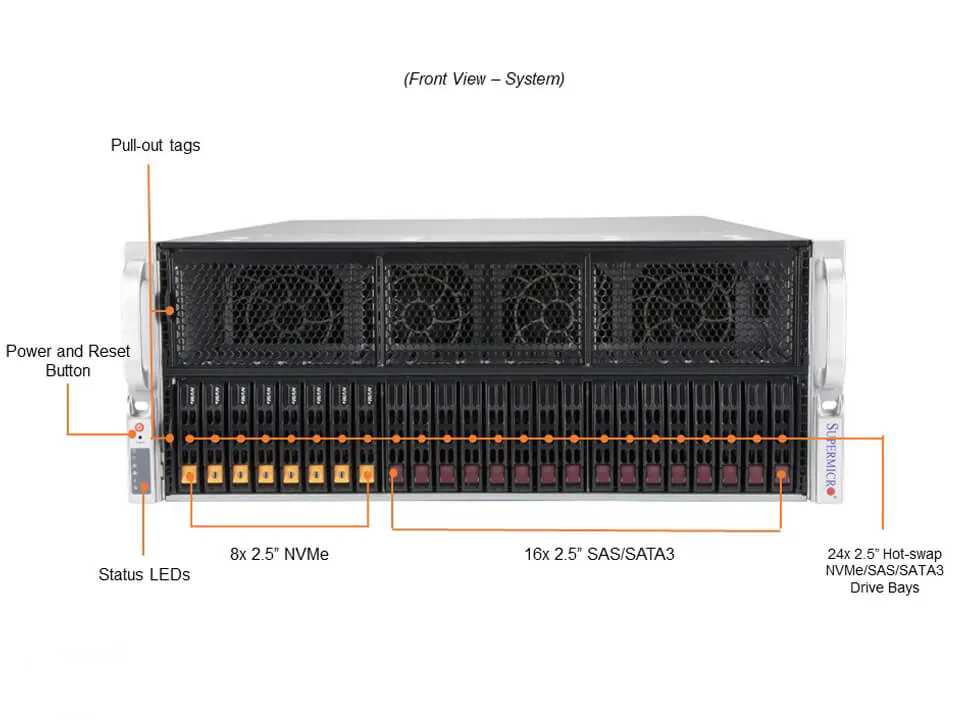

4U GPU SuperServer SYS-420GP-TNR (SYS-420GP-TNR)

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
AIOM/OCP 3.0 Support12 PCIe Gen 4.0 X16 FHFL Slots
Flexible networking options
Total 24x 2.5" Hot-swap drive bays8x HOT SWAP 2.5” NVMe8x HOT SWAP 2.5” SATA8x HOT SWAP 2.5” SATA/SAS (AOC required)2x M.2 NVMe for boot drive only
8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
4x 2000W redundant Titanium level power supplies

Loading price... (€6678.68)

Loading price...

Verzending binnen 10-15 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-420GP-TNR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

Now online: 9.00 am - 17.30 pm

Loading: Specificaties...

Specificaties

Key Applications

High Performance Computing
Rendering
VDI
AI/Deep Learning Training

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
- AIOM/OCP 3.0 Support
- 12 PCIe Gen 4.0 X16 FHFL Slots
Flexible networking options
- Total 24x 2.5" Hot-swap drive bays
- 8x HOT SWAP 2.5” NVMe
- 8x HOT SWAP 2.5” SATA
- 8x HOT SWAP 2.5” SATA/SAS (AOC required)
- 2x M.2 NVMe for boot drive only
8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
4x 2000W redundant Titanium level power supplies

...

Product SKUs
SuperServer SYS-420GP-TNR

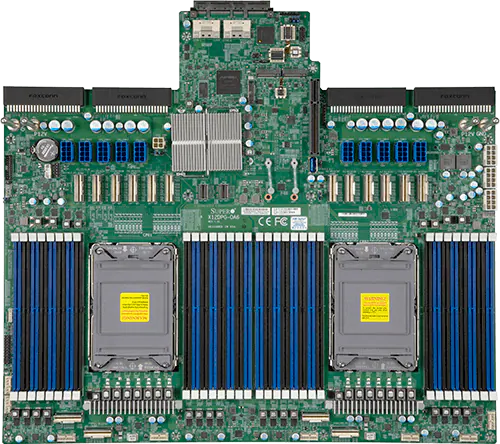

Motherboard
Super X12DPG-OA6

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 10 double-width or 10 single-width GPU(s)
Supported GPU	NVIDIA PCIe: H100, L40, RTX A5500, A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, A40, A30, A16, A2, A100, A10 Intel PCIe: Intel Data Center GPU Flex 170 View GPU Options
CPU-GPU Interconnect	PCIe 4.0 x16 Switch Dual-Root
GPU-GPU Interconnect	NVIDIA® NVLink® Bridge (optional)
Certification

System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset	Intel® C621A
Network Connectivity	2 RJ45 1GbE with Intel® I350 View AOC Options
NVMe	View NVMe Options

Input / Output
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
