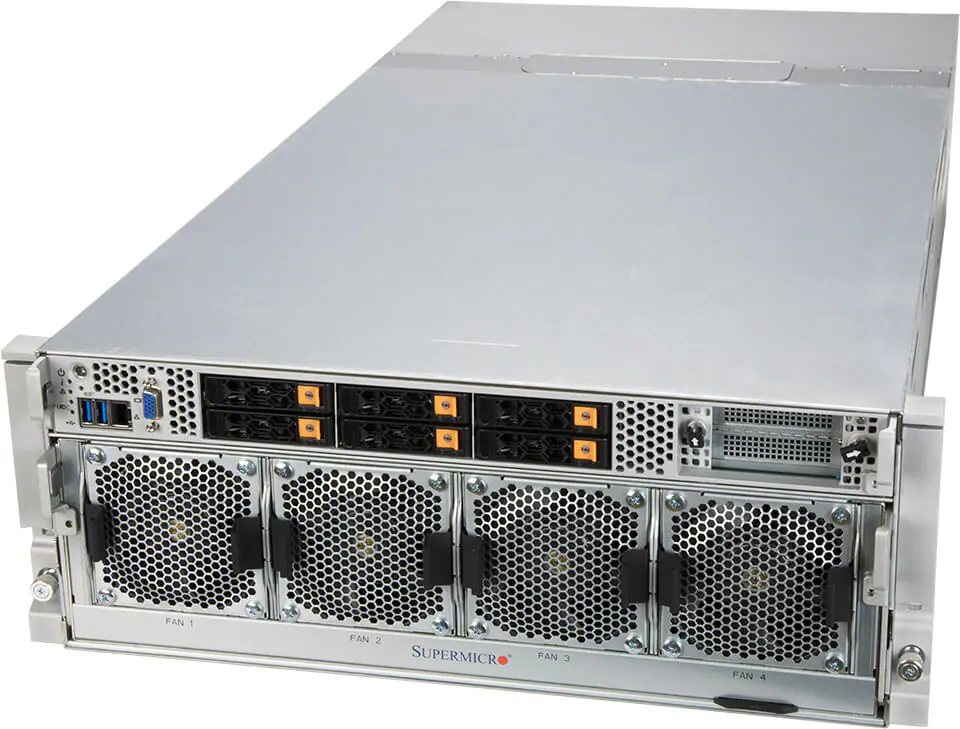

4U GPU SuperServer SYS-420GP-TNAR+ (SYS-420GP-TNAR+)

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
AIOM/OCP 3.0 Support10 PCIe Gen 4.0 X16 LP Slots
Flexible networking options
6x 2.5" Hot-swap NVMe/SATA/SAS drive bays2 M.2 NVMe and SATA for boot drive only
4 heavy duty fans with optimal fan speed control
4x 3000W redundant Titanium level power supplies

Loading price... (€12150.30)

Loading price...

Verzending binnen 14-21 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-420GP-TNAR+

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

High Performance Computing
AI/Deep Learning Training

Key Features

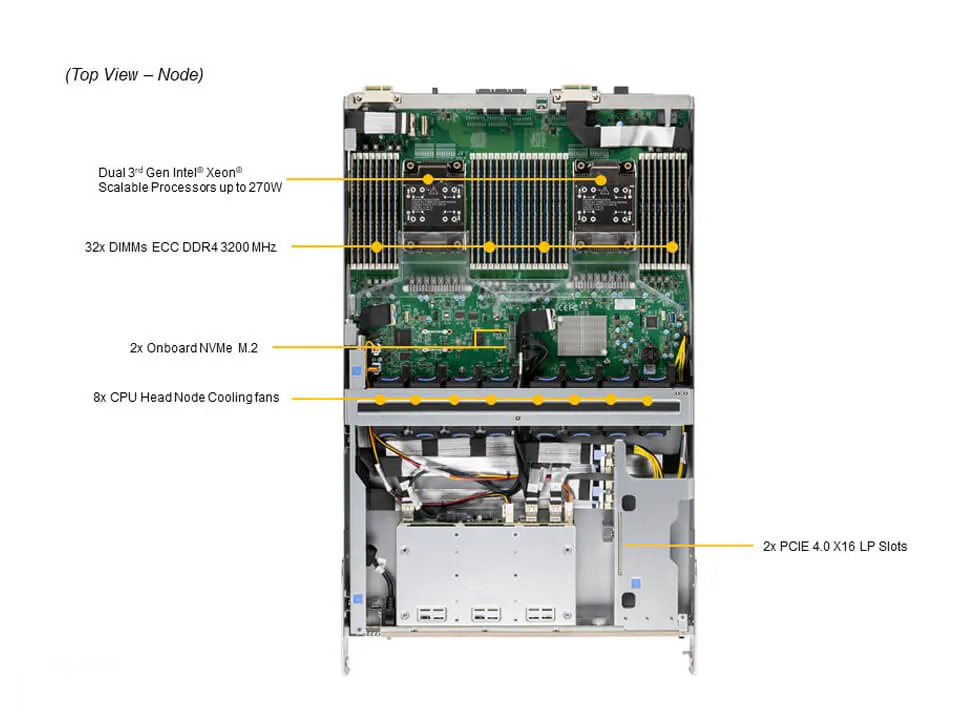

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
- AIOM/OCP 3.0 Support
- 10 PCIe Gen 4.0 X16 LP Slots
Flexible networking options

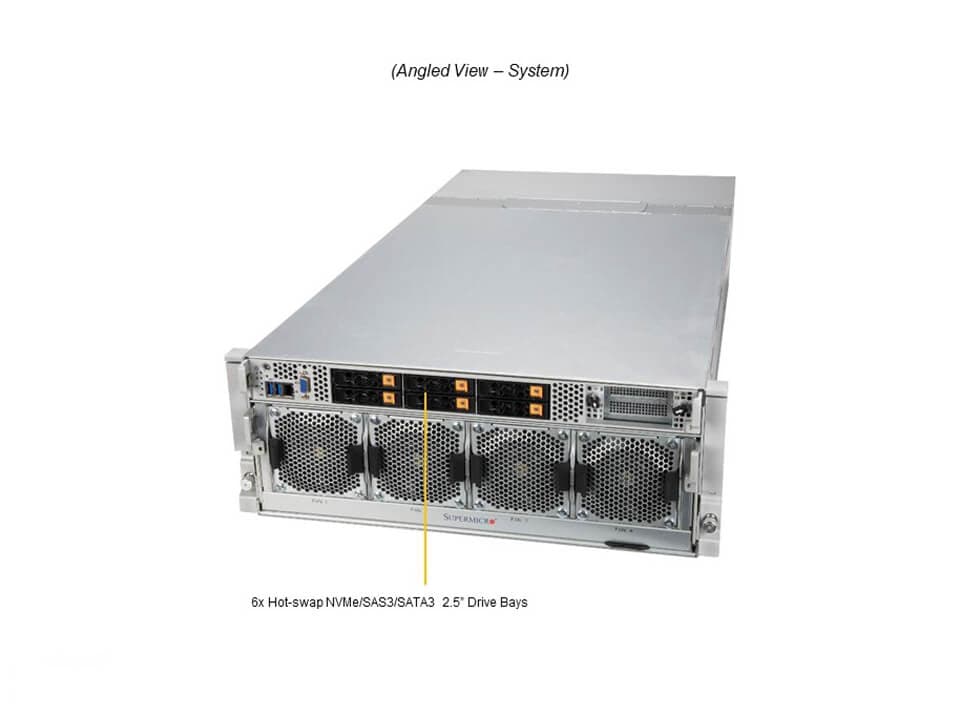

- 6x 2.5" Hot-swap NVMe/SATA/SAS drive bays
- 2 M.2 NVMe and SATA for boot drive only

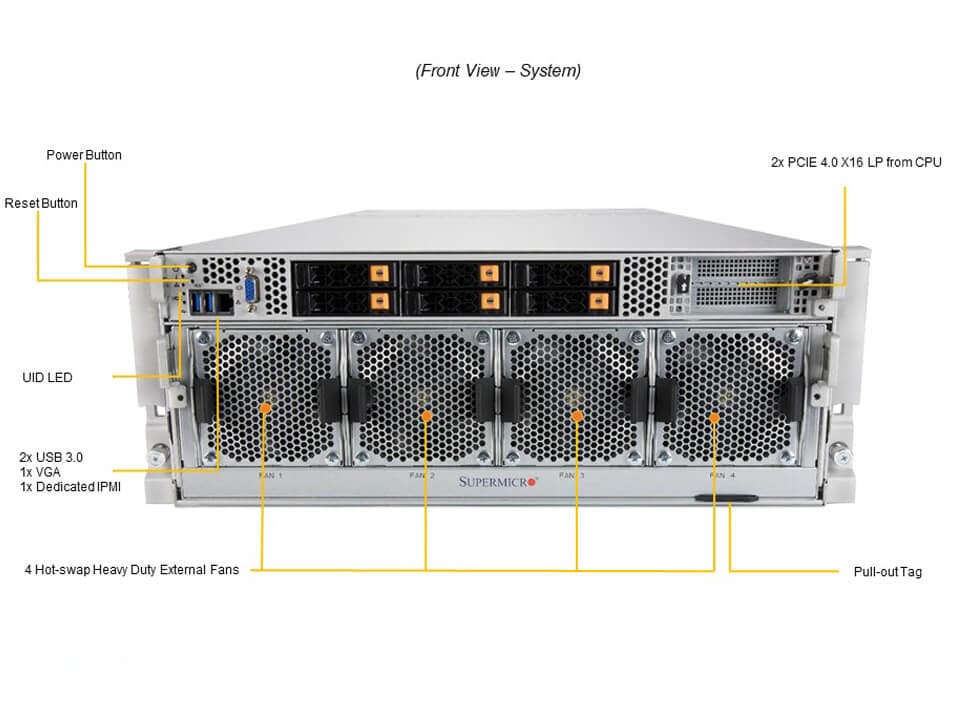

4 heavy duty fans with optimal fan speed control
4x 3000W redundant Titanium level power supplies

...

Get Pricing

Product SKUs
SuperServer SYS-420GP-TNAR+

Motherboard
Super X12DGO-6

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 8 onboard GPU(s)

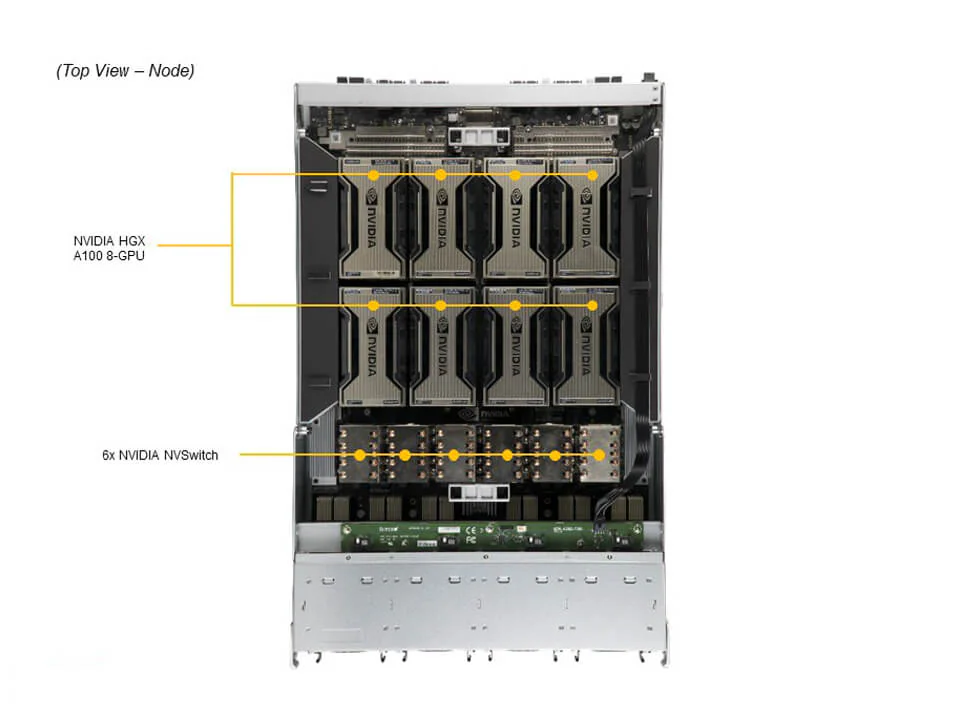

Supported GPU	NVIDIA SXM: HGX A100 8-GPU (80GB) View GPU Options
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® with NVSwitch™

System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset	Intel® C621A
Network Connectivity	2 RJ45 10GbE with Intel® X550-AT2 (optional) View AOC Options
NVMe	View NVMe Options

Input / Output
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
