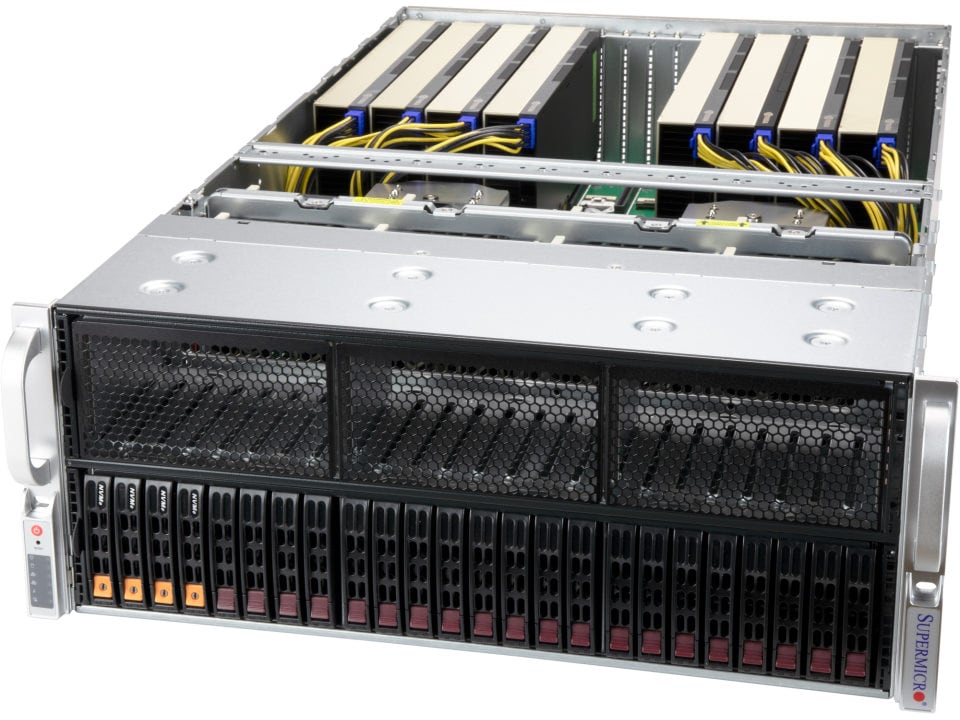

4U GPU A+ Server AS -4124GS-TNR+ (AS -4124GS-TNR+)

4U GPU A+ Server AS -4124GS-TNR+ (AS -4124GS-TNR+) thumbnail

Supermicro

4U GPU A+ Server AS -4124GS-TNR+ (AS -4124GS-TNR+)

Key Features

Supports up to 8 double-width GPUs Direct connect for maximum performance
Dual AMD EPYC™ 7003/7002 Series Processors
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
9 PCIe 4.0 x16 (option: 10 PCIe 4.0 x16 slots without NVMe devices)
Up to 24 hot-swap 2.5" drive baysDual 2.5" SATA in RAID 1 via onboard Marvell 9230Quad 2.5" PCIe4.0 NVMe (depends on PCIe quantity based on #4) RAID controller, option available for 24 HDDs

Loading price... (€5242.24)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: AS-4124GS-TNR+

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications
- AI / Deep Learning
- High Performance Computing (HPC)
- Cloud Gaming
- Molecular Dynamics Simulation

Key Features

1. Supports up to 8 double-width GPUs
Direct connect for maximum performance

2. Dual AMD EPYC™ 7003/7002 Series Processors

3. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs

4. 9 PCI-E 4.0 x16
(Option: 10 PCI-E 4.0 x16 slots without NVMe devices)

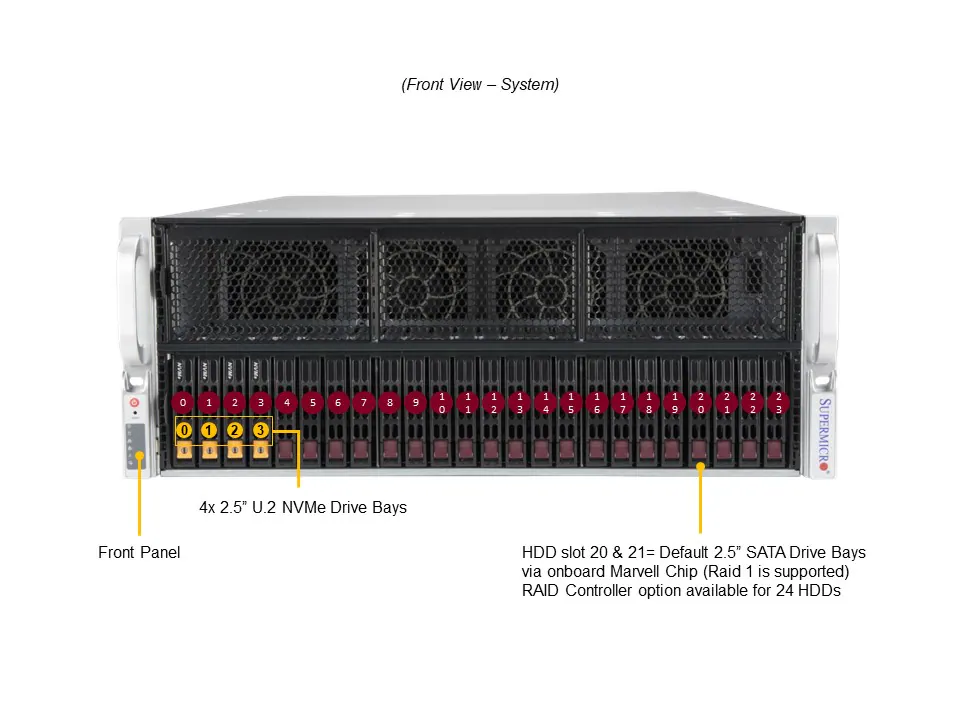

5. Up to 24 Hot-swap 2.5" drive bays.
With included hardware:
• 2x 2.5" SATA in RAID 1 via onboard
Marvell 9230
• 4x 2.5" NVMe Gen4 (depends on
PCI-E quantity based on #4)

RAID controller option available for 24 HDDs

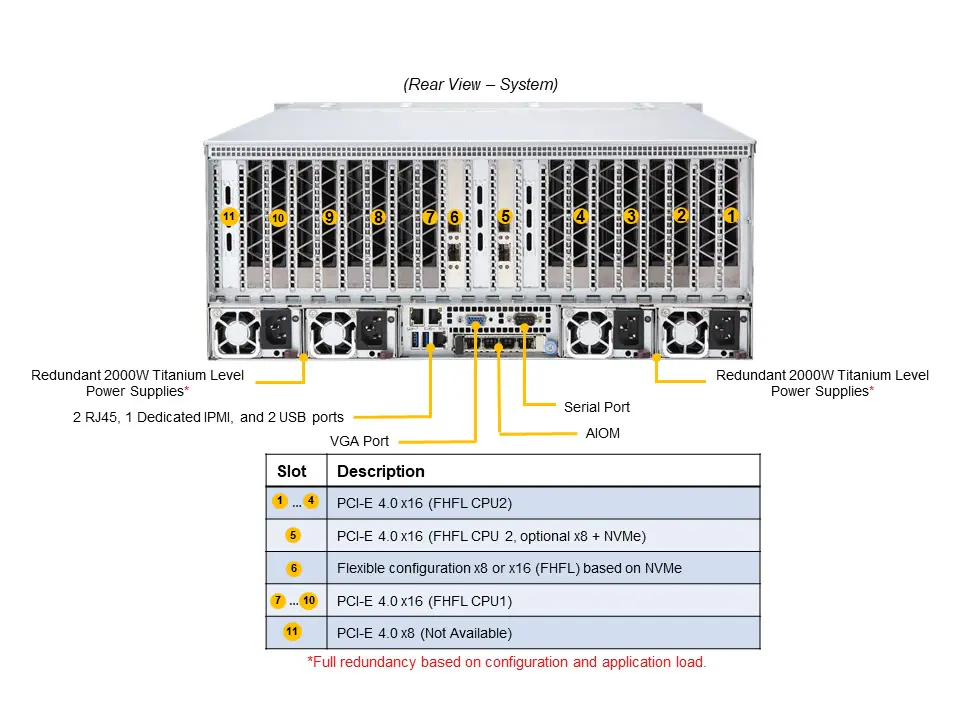

6. 2 GbE LAN ports (rear)

7. 8 Hot-swap 11.5K RPM cooling fans

8. 2000W (2+2) Redundant Power Supplies
Titanium Level (96%+)
(full redundancy based on configuration and application load)


Product SKUs

AS -4124GS-TNR+	A+ Server 4124GS-TNR+ (Black)

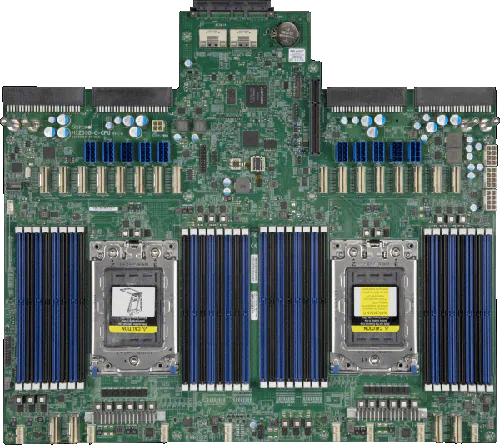

Motherboard

Super H12DSG-O-CPU


Processor/Cache

CPU	Dual AMD EPYC™ 7003/7002 Series Processors Socket SP3 Supports CPU TDP up to 280W**
Cores	Up to 128 Cores (64 per CPU)
Note	* Supports 2 CPUs only – single socket not supported ** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization


GPU

Supported GPUs	8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length) NVIDIA A100, V100, A40, T4, Quadro RTX, AMD Instinct Supports both active and passive cooled GPUs Compatible GPU list
CPU-GPU Interconnect	PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root
GPU-GPU Interconnect	NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional)


System Memory

Memory Capacity	32 DIMM slots* Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type	3200MHz ECC DDR4 RDIMM/LRDIMM**
Note	* Minimum 4 DIMMs per CPU required with EPYC 7003 Series processors ** In 2DPC configurations memory speed is up to 2933MHz


On-Board Devices

Chipset	System on Chip (SoC)
SATA	SATA3 (6Gbps)
Network Controllers	Provided via riser card
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC


Input / Output

SATA/SAS	24 SATA/SAS with a controller
LAN	2 RJ45 GbE LAN ports (rear) 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
Video	1 VGA Connector
COM Port	1 COM port (header)


System BIOS

BIOS Type	AMI 32Mb SPI Flash ROM


Management

Software	IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Other Features	RoT
