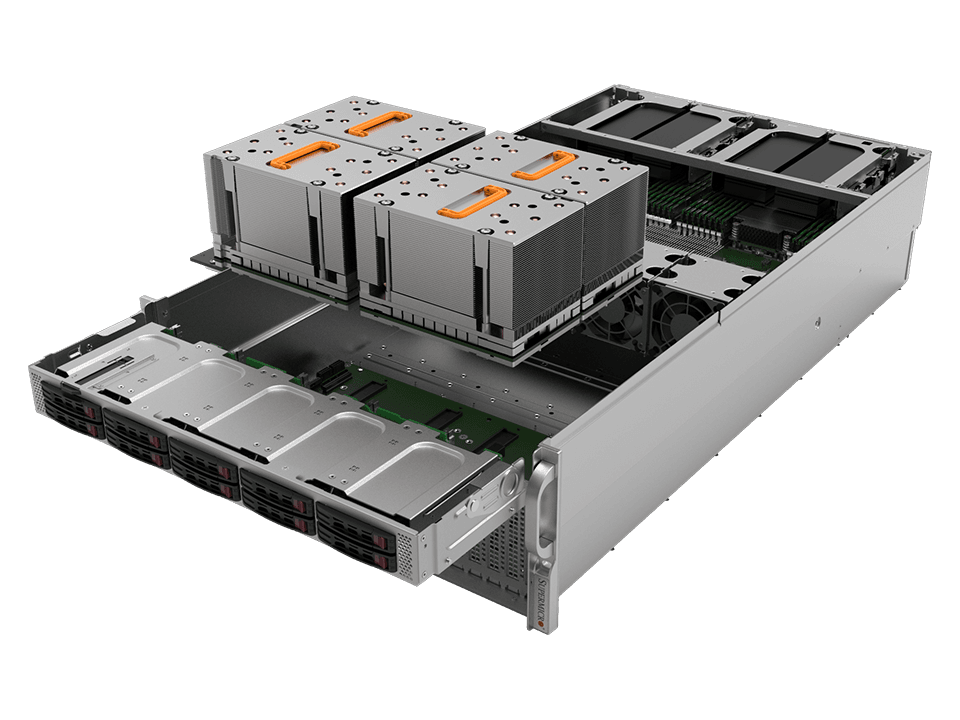

4U GPU A+ Server AS -4124GQ-TNMI (AS -4124GQ-TNMI)

4U GPU A+ Server AS -4124GQ-TNMI (AS -4124GQ-TNMI) thumbnail

Supermicro

4U GPU A+ Server AS -4124GQ-TNMI (AS -4124GQ-TNMI)

Key Features

Supports AMD Instinct™ MI200 Series Accelerators with AMD Infinity™ Fabric™ GPU-GPU Interconnect, 1:1 GPU-to-NIC ratio
Dual AMD EPYC™ 7003 Series Processors
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
8 PCIe 4.0 x16 via PLX2 PCIe 4.0 x16 LP via CPUs (for 5U SKU)

Loading price... (€9824.54)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: AS-4124GQ-TNMI

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications
- High Performance Computing
- AI / Deep Learning

Key Features

1. Supports AMD Instinct™ MI200 Series Accelerators with AMD Infinity™ Fabric™ GPU-GPU Interconnect, 1:1 GPU-to-NIC ratio

2. Supports MI250 OAM Accelerator with 128GB (HBM2e) and Infinity Interconnect

3. Dual AMD EPYC™ 7003 Series Processors

4. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs

5. 8 PCI-E 4.0 x16 via PLX
2 PCI-E 4.0 x16 LP via CPUs (for 5U SKU)

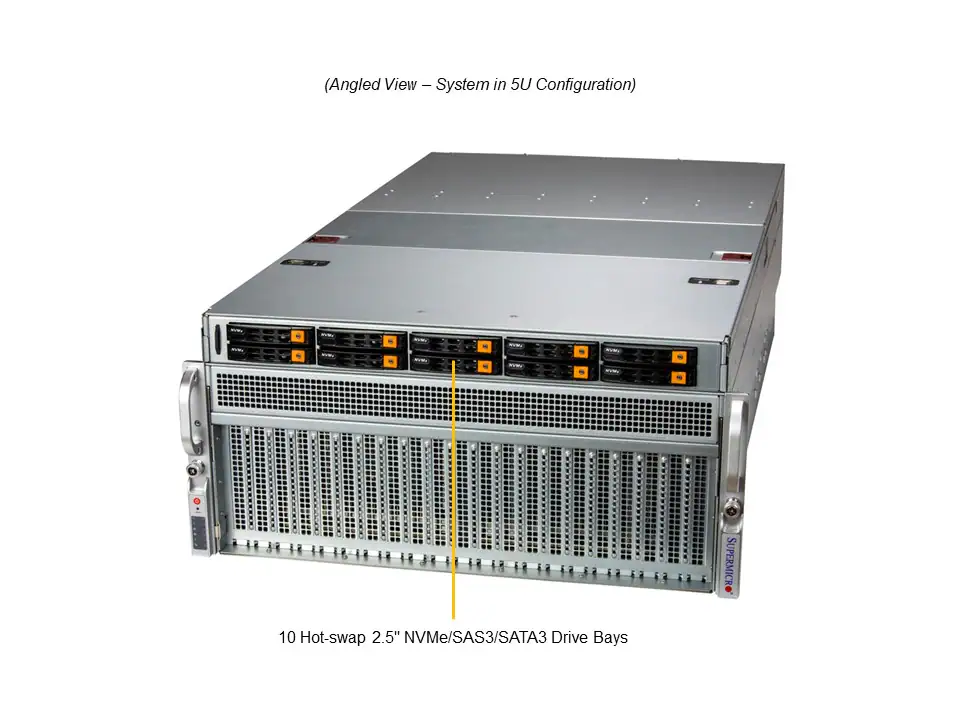

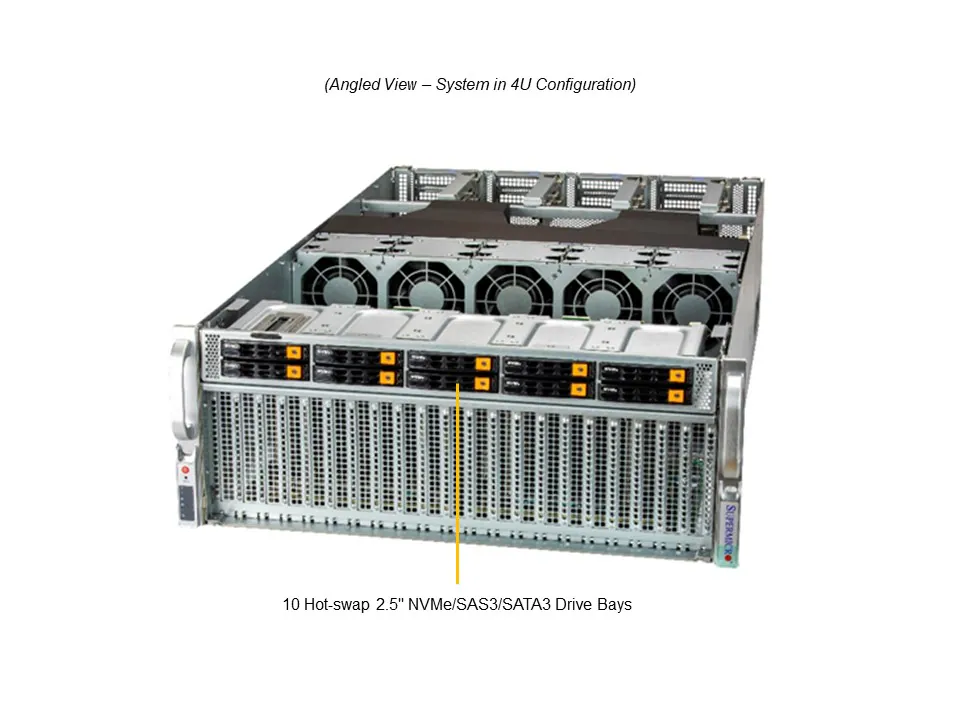

6. 10 hot-swap 2.5" U.2 NVMe/SATA/SAS hybrid drive bays

7. 1 dedicated IPMI LAN Port

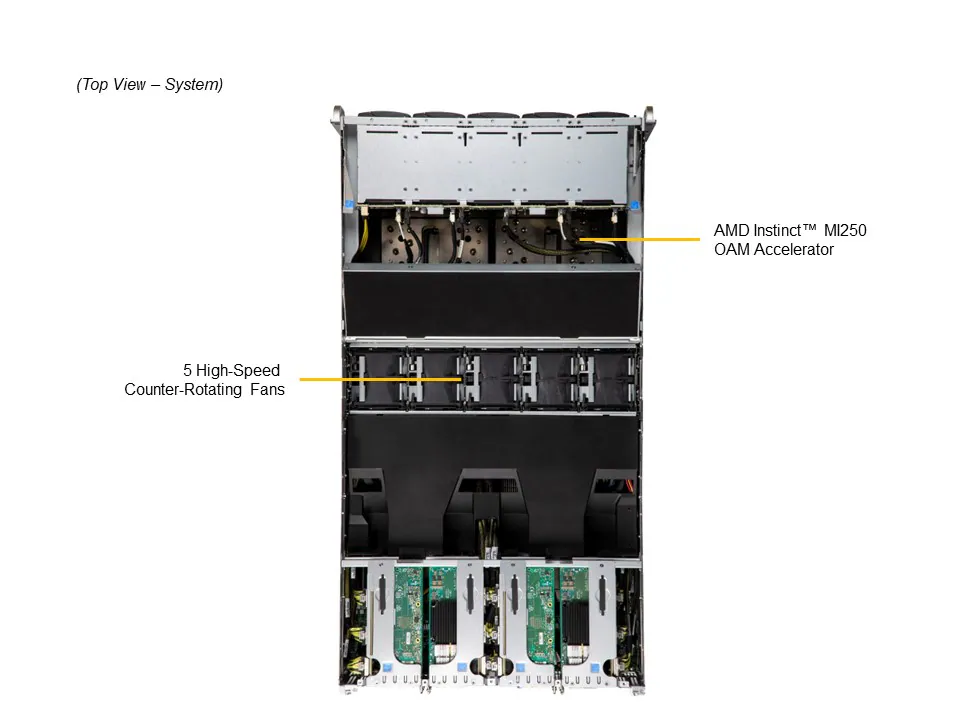

8. 5 hot-swap heavy-duty cooling fans


Product SKUs

AS -4124GQ-TNMI	A+ Server 4124GQ-TNMI


Motherboard

Super H12DGQ-NT6


Processor

CPU	Dual AMD EPYC™ 7003 Series Processors Socket SP3 Supports CPU TDP up to 280W*
Cores	Up to 128 Cores (64 cores, 128 threads per CPU)
Note	* Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization


GPU

Supported GPUs	AMD Instinct™ MI250 OAM Accelerator
CPU-GPU Interconnect	PCI-E 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	AMD Infinity Fabric™


System Memory

Memory Capacity	32 DIMM slots Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
Memory Type	3200MHz ECC DDR4 RDIMM/LRDIMM


On-Board Devices

Chipset	System on Chip (SoC)
SATA	SATA3 (6Gbps)
Network Controllers	Provided via IO Board
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2600 BMC


Input / Output

SATA	12 SATA3 (6Gbps) ports
NVMe	10 NVMe
LAN	Via IO Board 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.1 Gen1 ports (front)
Video	1 VGA Connector (front)
COM Port	1 COM port (header)


System BIOS

BIOS Type	AMI 256Mb SPI Flash ROM


Management

Software	IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
