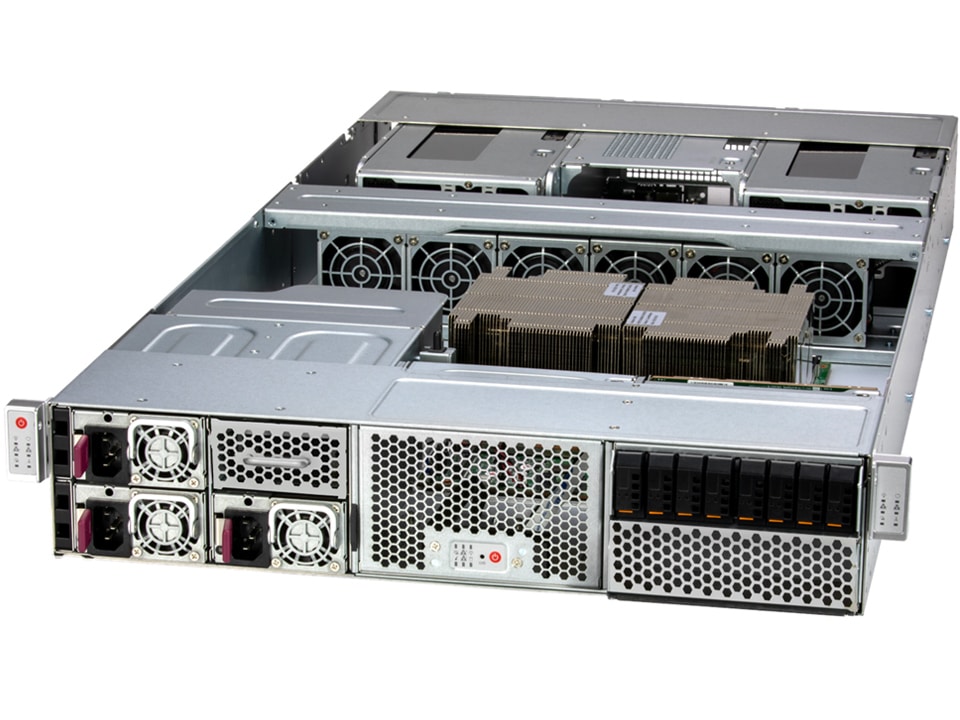

2U GPU ARS-221GL-NR (ARS-221GL-NR)

Key Features

High density 2U GPU system with up to 2 NVIDIA® PCIe GPUsPCIe-based NVIDIA H100 NVL and NVIDIA L40s
Energy-Efficient NVIDIA Grace™ CPU Superchip with 144 Cores
Up to 960GB ECC LPDDR5X onboard memory option for minimum latency and maximum power efficiency
5 PCIe 5.0 x16 FHFL Slots
4 E1.S NVMe Storage Support

Loading price... (€5014.45)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: ARS-221GL-NR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

High Performance Computing
AI/Deep Learning Training
Large Language Model (LLM) Natural Language Processing
General purpose CPU workloads, including analytics, data science, simulation, HPC, application servers, and more

Key Features

- High density 2U GPU system with up to 2 NVIDIA® PCIe GPUs
- PCIe-based NVIDIA H100 NVL and NVIDIA L40s
Energy-Efficient NVIDIA Grace™ CPU Superchip with 144 Cores
480GB or 240GB LPDDR5X onboard memory option for minimum latency and maximum power efficiency
7 PCIe 5.0 x16 FHFL Slots
NVIDIA BlueField-3 Data Processing Unit Support for the most demanding accelerated computing workloads.
E1.S NVMe Storage Support

...

Get Pricing

Product SKUs
ARS-221GL-NR

Motherboard
Super G1SMH

Processor
CPU	Dual processor(s) NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip
Note	Supports up to 500W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 2 double-width GPU(s)
Supported GPU	NVIDIA PCIe: H100 NVL, L40S View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe

System Memory
Memory	Slot Count: Onboard Memory Max Memory: Up to 480GB ECC LPDDR5X
Memory Voltage	1.1V

On-Board Devices
Chipset	NVIDIA C2
Network Connectivity	1 RJ45 1GbE View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
Video	1 mini-DP port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	Redfish API Supermicro Server Manager (SSM) Supermicro Power Manager (SPM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 Watch Dog NMI Intel® Node Manager OOB Management Package (SFT-OOB-LIC )
Power configurations	Power-on mode for AC power recovery ACPI Power Management

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
