2U GPU A+ Server AS -2114GT-DPNR (AS -2114GT-DPNR)

Key Features

AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
2 PCIe 4.0 x16 external slots + 1 PCIe 4.0 x8 AIOM slot (or optional x16 AIOM with additional parts)

Loading price... (€4186.34)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: AS-2114GT-DPNR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications
- Media/Video Streaming
- AI Inference and Machine Learning
- GPU Virtualization (VDI)
- Industrial Automation, Retail,
Smart Medical Expert Systems

Key Features

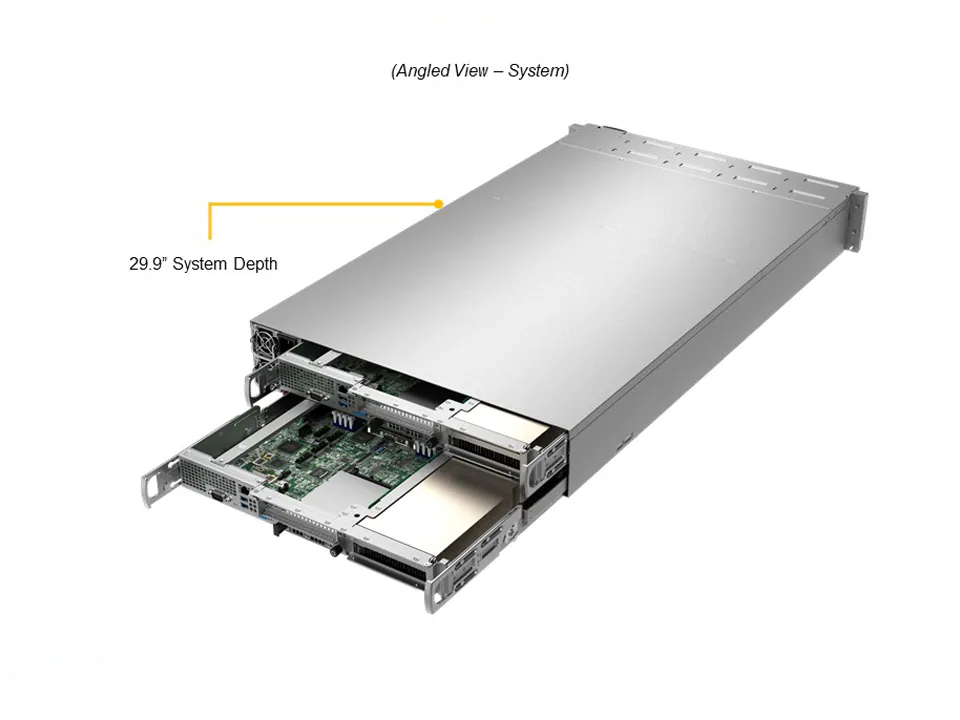

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

1. AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores

2. 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs

3. 2 PCI-E Gen 4 x16 external slots, 1 PCI-E 4.0 x8 AIOM slot (or optional x16 AIOM w/ additional parts)
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key

4. Integrated IPMI 2.0 + KVM with
dedicated LAN
• Software Out of Band License key
(SFT-OOB-LIC) included for
OOB BIOS management

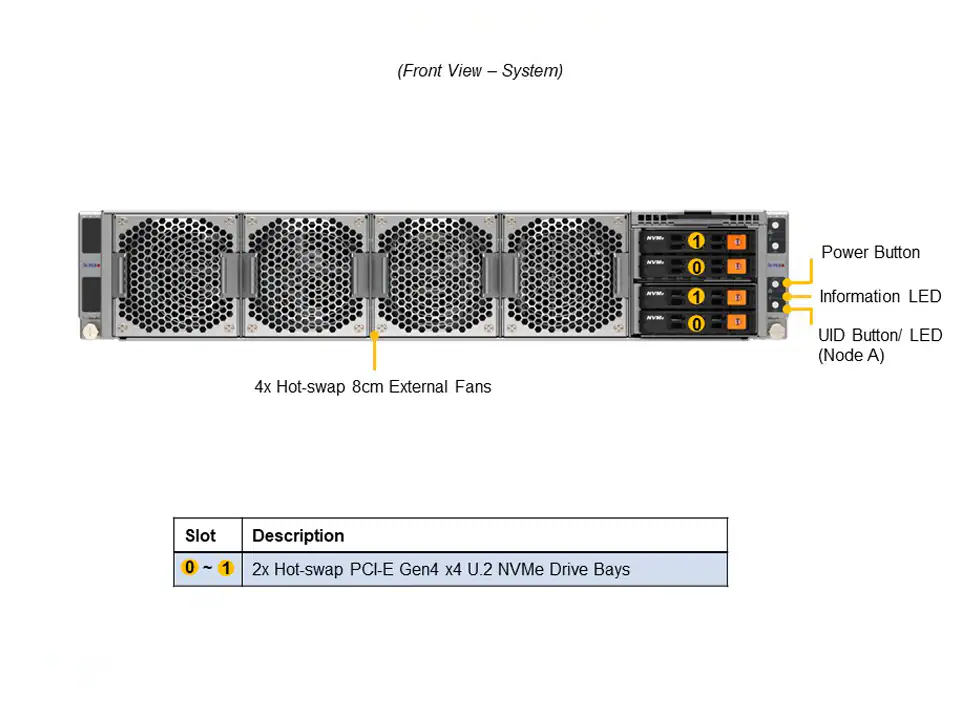

5. 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays

6. AST2600 BMC

7. 2600W Redundant (1+1) Power Supplies
Titanium Level (96%)
(Full redundancy based on
configuration and application load)


Product SKUs

AS -2114GT-DPNR	A+ Server 2114GT-DPNR (Black)


Motherboard (per Node)

Super H12SSG-ANP6


Processor (per Node)

CPU	AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores Socket SP3 Supports CPU TDP up to 280W*
Cores	Up to 64 Cores
Chipset	System on Chip (SoC)
Note	* Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization

GPU Support (per Node)

Up to 3 double-width or 6 single-width GPUs


System Memory (per Node)

Memory Capacity	8 DIMM slots Up to 2TB 3DS ECC DDR4-3200MH SDRAM
Memory Type	3200MHz ECC DDR4 SDRAM


On-Board Devices (per Node)

Network	Flexible networking via AIOM
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics & System Management	ASPEED AST2600 BMC


Input / Output (per Node)

SATA	N/A
LAN	Flexible networking provided by AIOM 1 RJ45 1GbE Dedicated IPMI management port
USB	2 USB 3.0 ports (rear)
Video	1 VGA Connector (rear)
Others	1 COM port (header) 1 TPM 2.0 (header)


System BIOS (per Node)

BIOS Type	AMI 256Mb SPI Flash ROM


Management (per Node)

Software	IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
