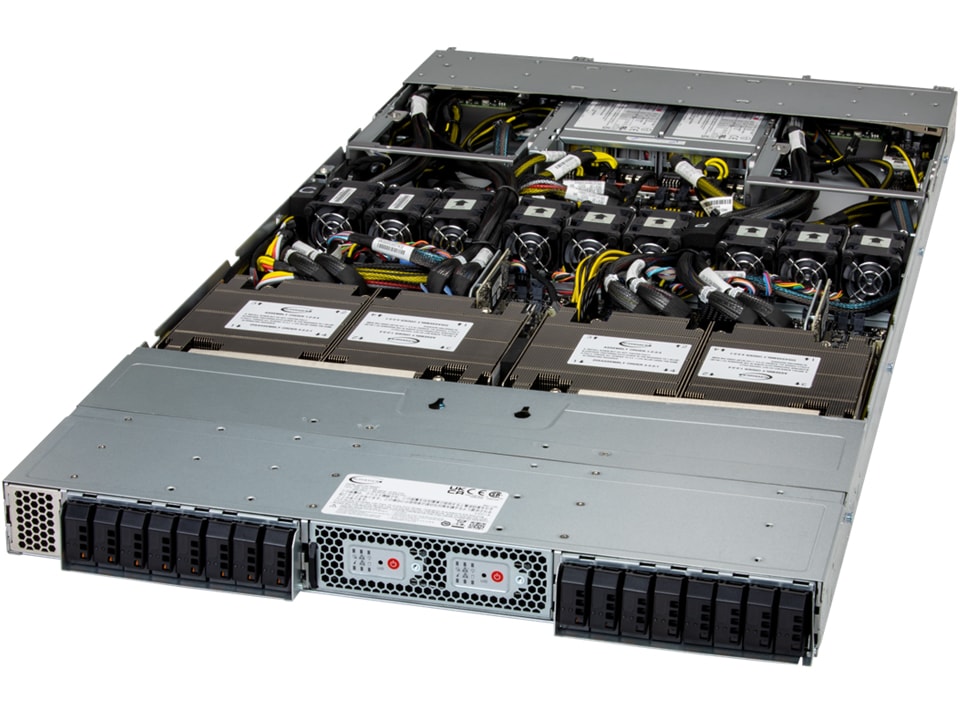

1U GPU ARS-121L-DNR New (ARS-121L-DNR)

Key Features

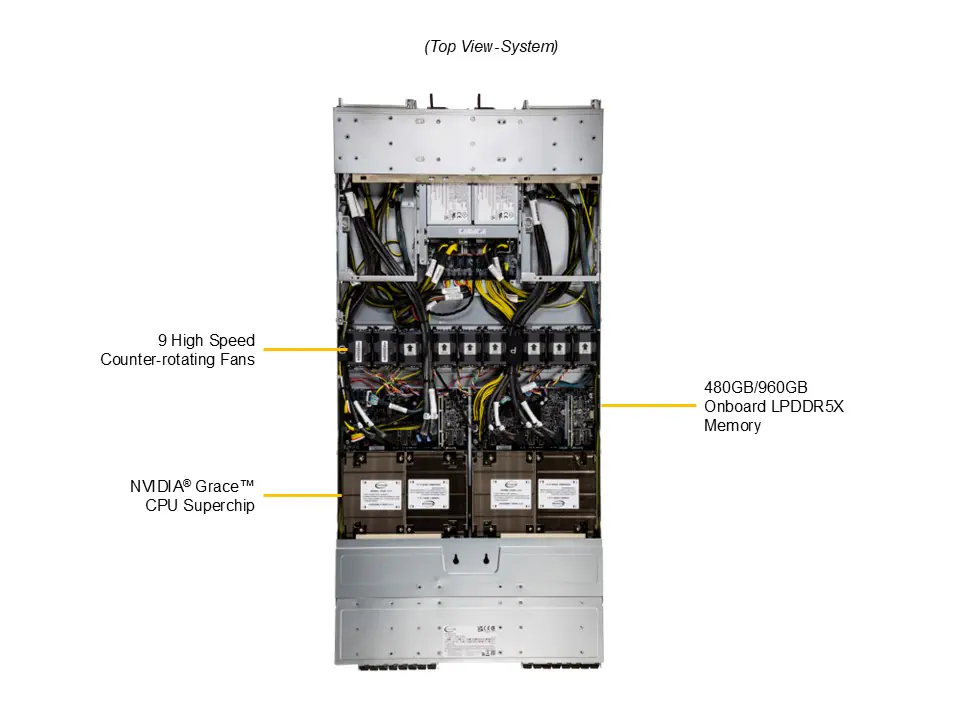

High density 1U 2-node system with NVIDIA Grace™ CPU Superchip per node
NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and CPU at 900GB/s
Up to 480GB LPDDR5X onboard memory
2x PCIe 5.0 x16 slots per node supporting NVIDIA BlueField®-3 or ConnectX®-7

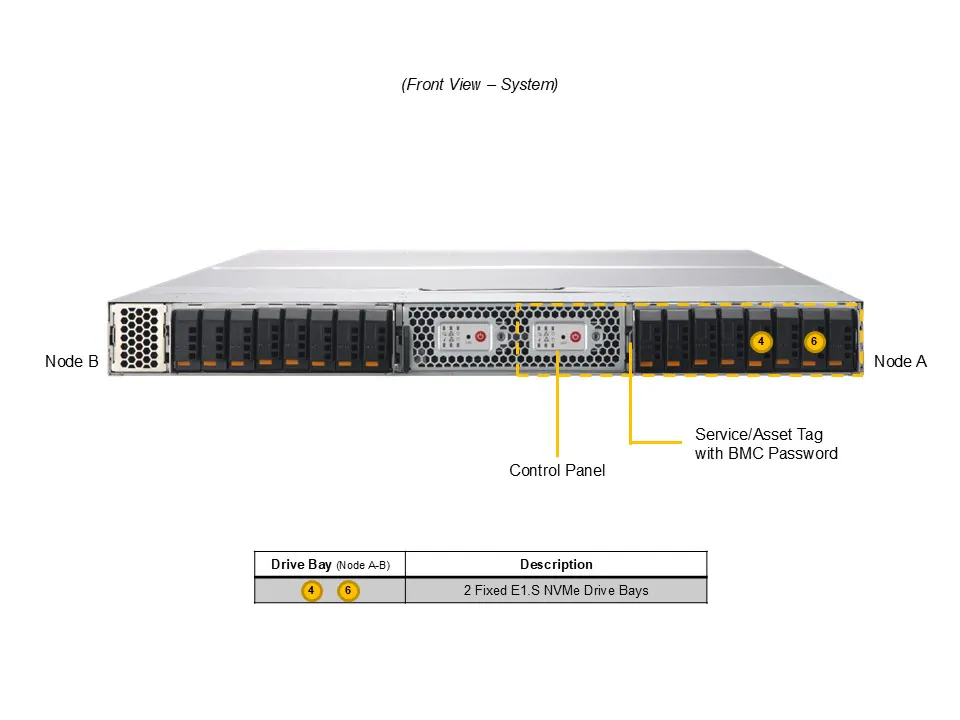

Up to 2x Hot-swap E1.S drives and 2x M.2 NVMe drives per node
7 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control

Loading price... (€0.00)

Loading price...

Verzending binnen 3-5 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: ARS-121L-DNR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

High Performance Computing
Hyperscale Cloud Applications
Data Analytics

Key Features

Pending a firmware fix, this system currently supports four E1.S drives and two GPUs. Please consult your Supermicro Salesperson for details.

Two nodes in a 1U form factor. Each node supports the following:

High density 1U 2-node system with NVIDIA Grace™ CPU Superchip per node
NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and CPU at 900GB/s
Up to 480GB LPDDR5X onboard memory
2x PCIe 5.0 x16 slots per node supporting NVIDIA BlueField®-3 or ConnectX®-7
Up to 4x Hot-swap E1.S drives and 2x M.2 NVMe drives per node
7 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
Pending a firmware fix, this system currently supports four E1.S drives and two GPUs. Please consult your Supermicro Salesperson for details.

...

Get Pricing

Product SKUs
ARS-121L-DNR

Motherboard
Super G1SMH

Processor (per Node)
CPU	Single processor(s) NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip
Note	Supports up to 500W TDP CPUs (Air Cooled)

GPU (per Node)
Max GPU Count	Up to 1 double-width or 1 single-width GPU(s)
GPU-GPU Interconnect	PCIe

System Memory (per Node)
Memory	Slot Count: Onboard Memory Max Memory: Up to 480GB ECC

On-Board Devices (per Node)
Chipset	NVIDIA C2
Network Connectivity	View AOC Options

Input / Output (per Node)

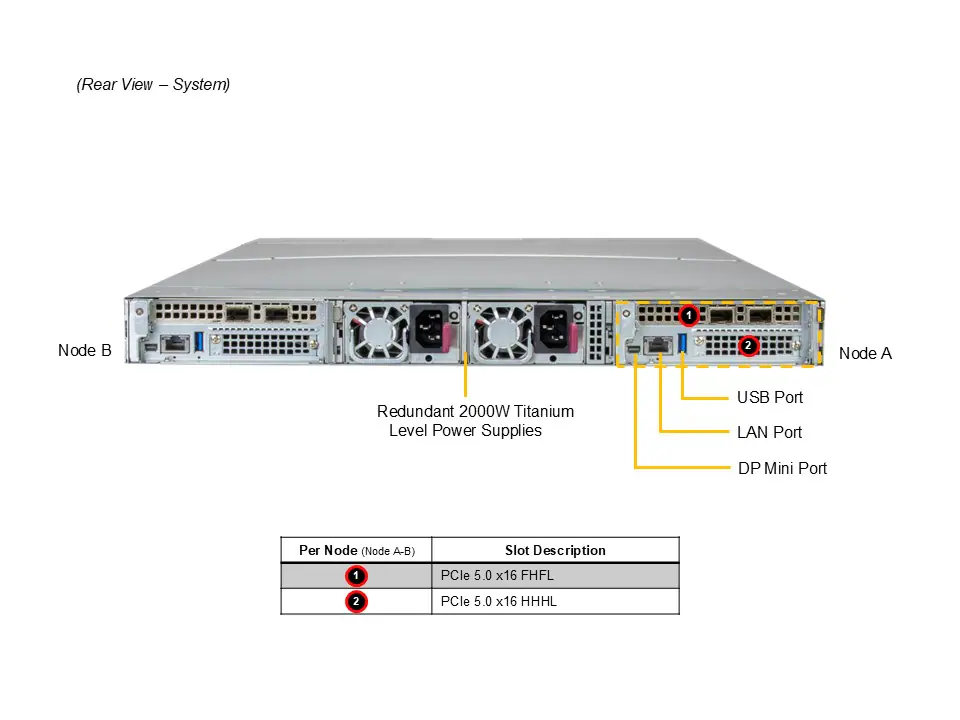

LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB	2 port(s) (rear)
Video	1 mini-DP port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Power configurations	Power-on mode for AC power recovery ACPI Power Management

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
