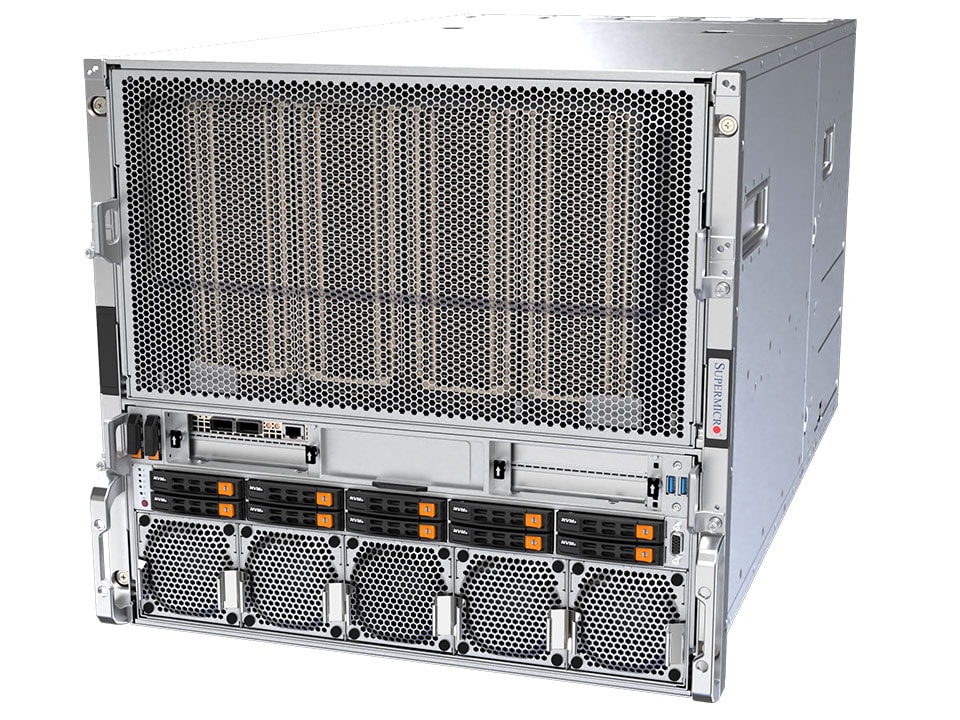

Supermicro10U GPU SuperServer SYS-A22GA-NBRT New (SYS-A22GA-NBRT)
Key Features
- Dual Intel® Xeon® 6900 series processors with P-cores
- 8x NVIDIA SXM B200 GPUs, 1.4TB of GPU memory space
- 24x DIMM slots, ECC RDIMM / MRDIMM DDR5 up to 8800MT/s (1DPC)
- 10x PCIe 5.0 x16 LP, 2x PCIe 5.0 x16 FHHL slots
- 10x front hot-swap 2.5" NVMe U.2, 2x front hot-swap NVMe M.2
- 2x 10GbE RJ-45, 1x Dedicated BMC/IPMI
Expertise in geïntegreerde oplossingen
Ongeëvenaarde kwaliteitsborging
24/7 op maat gemaakte klantenondersteuning
10U GPU SuperServer SYS-A22GA-NBRT New (SYS-A22GA-NBRT)
Key Features
- Dual Intel® Xeon® 6900 series processors with P-cores
- 8x NVIDIA SXM B200 GPUs, 1.4TB of GPU memory space
- 24x DIMM slots, ECC RDIMM / MRDIMM DDR5 up to 8800MT/s (1DPC)
- 10x PCIe 5.0 x16 LP, 2x PCIe 5.0 x16 FHHL slots
- 10x front hot-swap 2.5" NVMe U.2, 2x front hot-swap NVMe M.2
- 2x 10GbE RJ-45, 1x Dedicated BMC/IPMI
Vraag gratis offerte aan voor prijsinformatie. Binnen 1 werkdag ontvangt u een prijsopgave van een expert.
Loading price... (€0.00)
€0.00Loading price...
Beschikbaarheid opvragen
Minimaal 1 jaar Carry-in-garantie voor servers
Wij assembleren en testen uw bestelling zorgvuldig
Laagste prijsgarantie
Supermicro Product ID: SYS-A22GA-NBRT
Hulp Nodig? Contacteer onze experts
Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur
Loading: Specificaties...
Specificaties
| Eigenschap | Specificatie |
|---|---|
| Product SKUs | SuperServer SYS-A22GA-NBRT SuperServer SYS-A22GA-NBRT-G1 Gold Series version with pre-configured components |
| Motherboard | Super X14DBG-DAP |
| Processor (CPU) | Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
| Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
| Note | Supports up to 500W TDP CPUs (Air Cooled) |
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| System Memory | 24 DIMM slots |
| Max Memory (1DPC) | Up to 6TB 6400MT/s ECC DDR5 RDIMM Up to 6TB 8800MT/s ECC DDR5 MRDIMM |
| Memory Voltage | 1.1V |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710 |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| BIOS | AMI 64MB UEFI |
| Management | SuperCloud Composer®, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security | TPM 2.0, Silicon Root of Trust (NIST 800-193), Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring | CPU (Monitors for CPU Cores, Chipset Voltages, Memory) |
| Fans | Fans with tachometer monitoring, Status monitor for speed control, PWM fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Chassis Form Factor | 10U Rackmount |
| Chassis Model | CSE-GP1001TS-R000NPF |
| Dimensions | Height: 17.2" (438.8 mm) Width: 17.6" (449 mm) Depth: 33.2" (843.28 mm) |
| Package | 25.2" (H) x 49.4" (W) x 27.3" (D) |
| Weight | Gross: 341 lbs (155 kg), Net: 293 lbs (133 kg) |
| Color | Silver |
| Front Panel | LED: HDD activity, Network activity, System info (overheat/UID), UID Buttons: Power On/Off, UID/Reset |
| Expansion Slots | 10 PCIe 5.0 x16 LP slots, 2 PCIe 5.0 x16 FHHL slots |
| Drive Bays | 10 front hot-swap 2.5" PCIe 5.0 x4 NVMe |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe (M-key 2280/22110) |
| System Cooling | 15x 80x80x80mm fans, 4x 60x60x56mm fans, 1 Air Shroud |
| Power Supply | 6x 5250W Redundant (3+3) Titanium Level (96%) |
| PSU Dimension | 106.5 x 82.1 x 245.3 mm |
| PSU Input | 5250W: 200-240Vac / 50-60Hz |
| Operating Environment | 10°C to 35°C (operation), -40°C to 70°C (non-operation) |
| Relative Humidity | 8% to 90% (operating, non-condensing) 5% to 95% (non-operating, non-condensing) |
| Certification | Titanium Level, RoHS |
