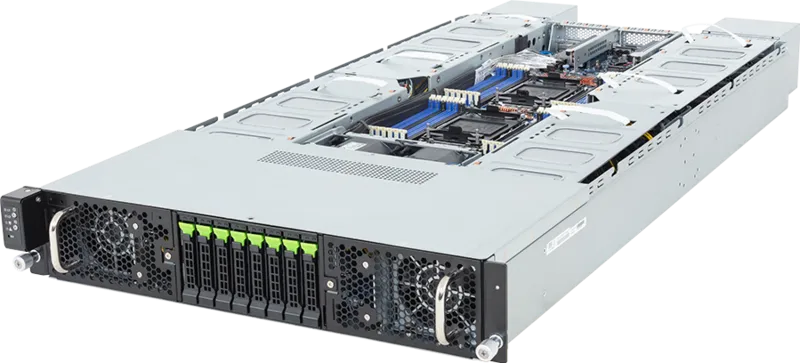

BareBone G294-S43-AAP2-1.X

HPC/AI Server - Intel® Xeon® 6 Processors - 2U DP 16 x PCIe Gen5 GPUs (with PCIe switches)

Supports up to 16 x Single slot Gen5 GPUs
Dual Intel® Xeon® 6700/6500-Series Processors
8-Channel DDR5 RDIMM / MRDIMM, 24 x DIMMs
Dual ROM Architecture
2 x 10Gb/s LAN ports via Intel® X710-AT2

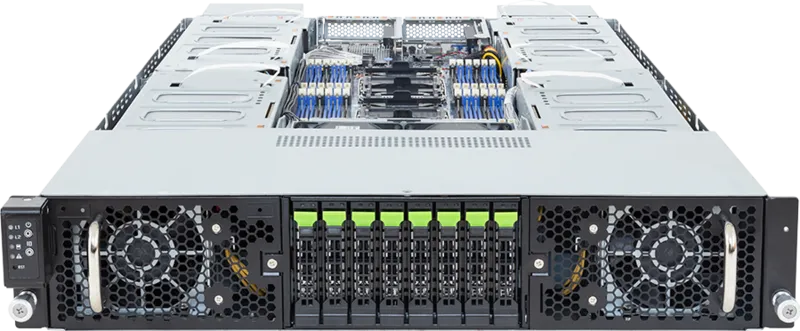

8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
16 x FHFL PCIe Gen5 x16 slots for GPUs
2 x LP PCIe Gen5 x16 slots
Dual 3000W 80 PLUS Titanium redundant power supply

Loading price... (€9226.69)

Loading price...

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

GIGABYTE Product ID: 6NG294S43DR000AAP2

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Specifications
Dimensions (WxHxD, mm)	2U 448 x 87.5 x 850

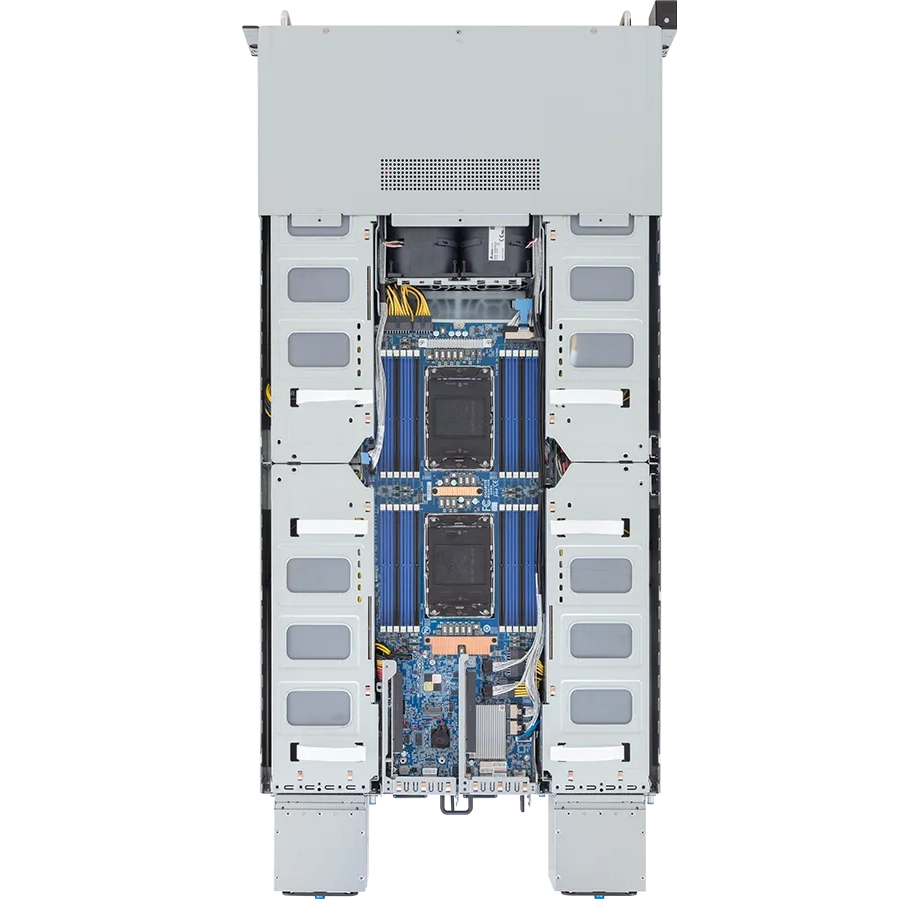

Motherboard	MS44-G20
CPU	Intel^® Xeon^® 6 Processors - Intel^® Xeon^® 6700-Series Processors - Intel^® Xeon^® 6500-Series Processors Dual processor, TDP up to 250W - At 30°C ambient, TDP up to 300W - At 25°C ambient, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket	2 x LGA 4710 Socket E2
Chipset	System on Chip
Memory	24 x DIMM slots^[1] DDR5 memory supported 8-Channel memory per processor MRDIMM supported^[2] RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC) MRDIMM: Up to 8000 MT/s [1] Intel^® Xeon^® 6700E-Series Processors only support up to 16 x DIMMs. [2] MRDIMMs are only supported with Intel^® Xeon^® 6 Processors with P-cores and in a 1DPC configuration.
LAN	Rear: 2 x 10Gb/s LAN (1 x Intel^® X710-AT2) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN
Video	Integrated in ASPEED^® AST2600 - 1 x VGA port
Storage	Front hot-swap: 8 x 2.5" Gen5 NVMe/SATA/SAS-4^[1][2] - (4 x NVMe from CPU_0, 4 x NVMe from CPU_1) - (SATA from CPU_0) [1] Storage card is required to support SATA and SAS drives. [2] Optional M.2 storage kit available for SATA support without requiring a PCIe storage card. Please contact our sales team for more information.
SAS	Require SAS add-in cards
RAID	Require RAID add-in cards Onboard VROC key headers
PCIe Expansion Slots	Riser Card CRSG742 x 2: - 8 x FHFL x16 (Gen5 x16), from PEX89088, for GPUs Riser Card CRSG743 x 2: - 8 x FHFL x16 (Gen5 x16), from PEX89088, for GPUs Riser Card CRSG01F x 2: - 1 x LP x16 (Gen5 x16), from CPU_0 - 1 x LP x16 (Gen5 x16), from CPU_1 [Note] The system is only validated with a uniform GPU model.
Front I/O	1 x Power button with LED 1 x ID button with LED 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED

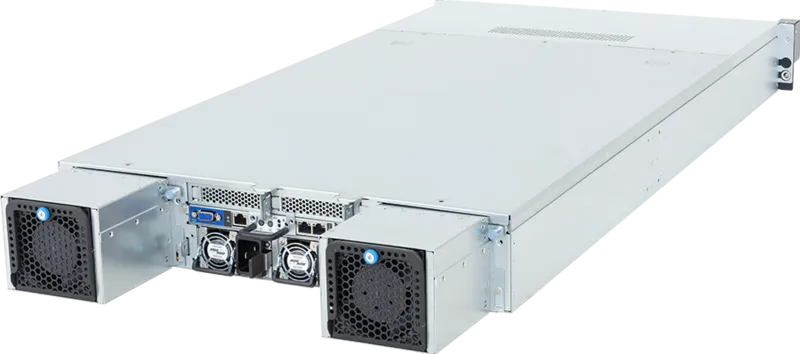

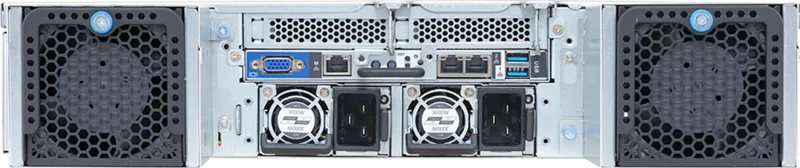

Rear I/O	2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 2 x RJ45 ports 1 x MLAN port 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 1 x System status LED
Backplane Board	Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules	1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM012 1 x PRoT connector (only enabled on RoT SKU)
Power Supply^[#1]	Dual 3000W 80 PLUS Titanium redundant power supply^[1] AC Input: - 100-127V~/ 15.5A, 50-60Hz - 200-220V~/ 15.5A, 50-60Hz - 220-240V~/ 15.5A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 15.5A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 81A +12Vsb/ 3A - Max 2600W/ 200-220V~ +12.2V/ 213A +12Vsb/ 3A - Max 3000W/ 220-240V~ or 240Vdc Input +12.2V/ 245A +12Vsb/ 3A [1] The system power supply requires C19 power cord.
System Management	ASPEED^® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
OS Compatibility	Please refer to OS compatibility table in support page
System Fans	8 x 80x80x80mm
Operating Properties	Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing)
Packaging Dimensions	1175 x 727 x 266 mm
Packaging Content	1 x G294-S43-AAP2 2 x CPU heatsinks 4 x Carriers 1 x L-shape Rail kit
Part Numbers	- Barebone package: 6NG294S43DR000AAP2* - Motherboard: 9MS44G20UR-000* - L-shape Rail kit: 25HB2-A86102-K0R - CPU heatsink: 25ST1-4Z3202-C1R/25ST1-4Z3203-C1R - Front panel board - GC-IF2ED1: 9CIF2ED1NS-00* - Backplane board - CBPG086: 9CBPG086NR-00* - Fan module: 25ST2-888028-D0R - Fan module: 25ST2-88802A-F1R - Fan module: 25ST2-88802B-F1R - Riser card - CRSG01F: 9CRSG01FNR-00* - Riser card - CRSG742: 9CRSG742NR-00* - Riser card - CRSG743: 9CRSG743NR-00* - Power supply: 25EP0-203K03-G1S
