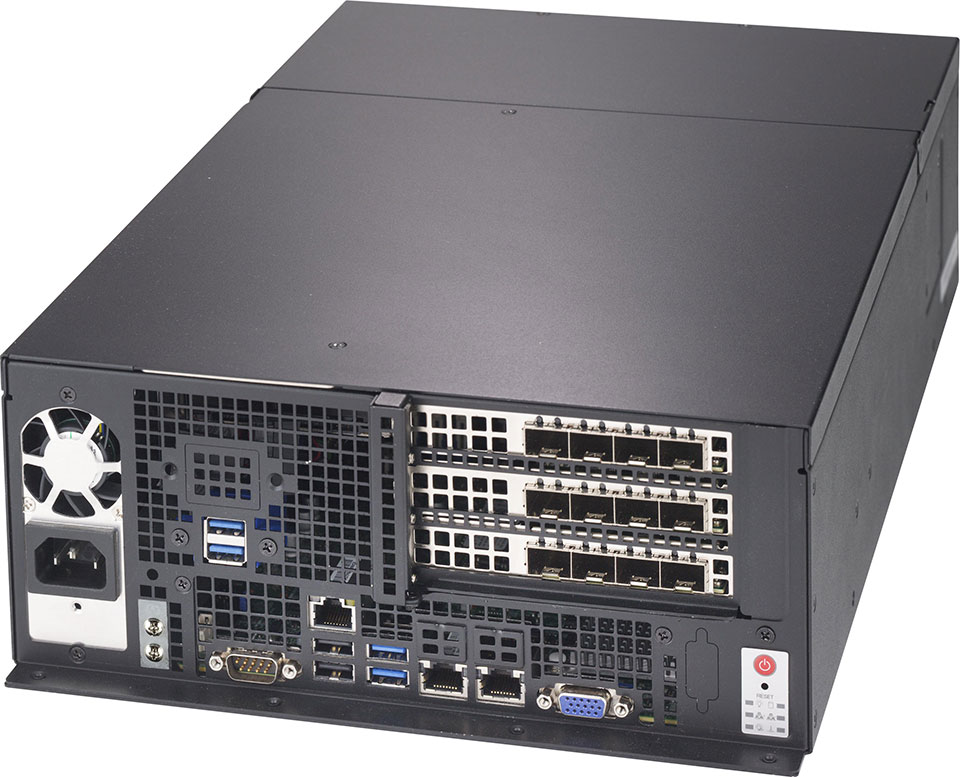

Mini-ITX IoT SuperServer SYS-E403-12P-FN2T (SYS-E403-12P-FN2T)

SYS-E403-12P-FN2T | Box PC | SuperServer | Products | Supermicro - SYS-E403-12P-FN2T - SSE403-12P-FN2T - Box PC - IoT - X12 - System

Loading price... (€1244.42)

Loading price...

Verzending binnen 10-15 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-E403-12P-FN2T

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Multi-Access Edge Computing (MEC)
Universal Customer Premise Equipment (uCPE)
Network Function Virtualization (NFV)
Artificial Intelligence (AI) on Edge, Machine Learning (ML)
Industrial Automation, Retail, Smart Medical Expert Systems

Key Features

Single Socket Intel® Xeon-SP (Ice Lake) up to 32 Cores
3x PCIe4.0 x16 slot
2x 10 Gigabit Ethernet Ports
4x 2.5" Internal Drive Bays
4x USB 3.0, 2x USB 2.0

...

Get Pricing

Product SKUs
SuperServer SYS-E403-12P-FN2T

Motherboard
Super X12SPW-TF

Processor
CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Note	Supports up to 205W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) via Intel® C621A; RAID 0/1/5/10 support
Chipset	Intel® C621A
Network Connectivity	2 RJ45 10GBASE-T with Intel® X550-AT2 View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s) 2 RJ45 10 GBASE-T LAN port(s) (Intel® X550-AT2)
USB	2 USB 2.0 Type-A port(s) (rear) 4 USB 3.0 Type-A port(s) (Rear)
Video	1 VGA port(s) (Rear)

System BIOS
BIOS Type	AMI 32MB SPI Flash
BIOS Features	ACPI 6.0 Plug and Play (PnP) Riser Card audio detection support SMBIOS 3.0 or later

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
