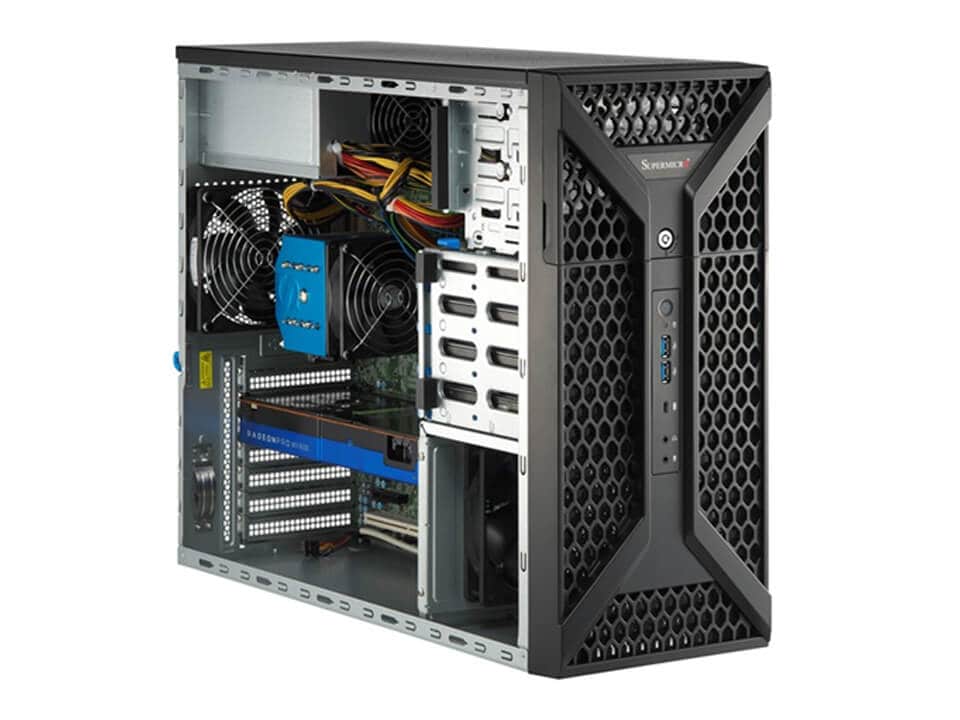

Mid-Tower SuperWorkstation SYS-530A-IL (SYS-530A-IL)

SYS-530A-IL | Mid-Tower | SuperWorkstation | Products | Supermicro - SYS-530A-IL - SS530A-IL - Mid-Tower - UP Workstation - X12 - System - SuperWorkstations - superworkstation -

Loading price... (€675.69)

Loading price...

Verzending binnen 10-15 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-530A-IL

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Entry-Level Workstation
Designed for CAD and 3D Modeling Applications
2D/3D Content Creation

Key Features

2022 Version: Supports both Intel® Xeon® W-1200/W-1300 Series and 10th/11th Generation Intel® Core™ Processors
Dual LAN ports, 1 GbE and 2.5 GbE
12cm PWM quiet exhaust fan and optional 12cm front intake fan
668W 80PLUS Platinum Power Supply

...

Product SKUs
SuperWorkstation SYS-530A-IL

Motherboard
Super X12SAE-5

Processor
CPU	Single Socket H5 (LGA-1200) 11th Gen Intel® Core™ Processors
Core Count	Up to 10C/20T; Up to 20MB Cache
Note	Supports up to 125W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 1 double-width GPU(s)

System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps)
Chipset	Intel® W580
Network Connectivity	1 RJ45 1GbE with Intel® I219-LM 1 RJ45 2.5GbE with Intel® I225-V View AOC Options

Input / Output
Video	1 HDMI 2.0b port(s) 1 DVI-D port(s) 1 DisplayPort 1.4a port(s)
TPM	1 TPM header

System BIOS
BIOS Type	AMI 256MB SPI Flash

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI 6.0 Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0

PC Health Monitoring
Voltage	+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Other Features	8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
