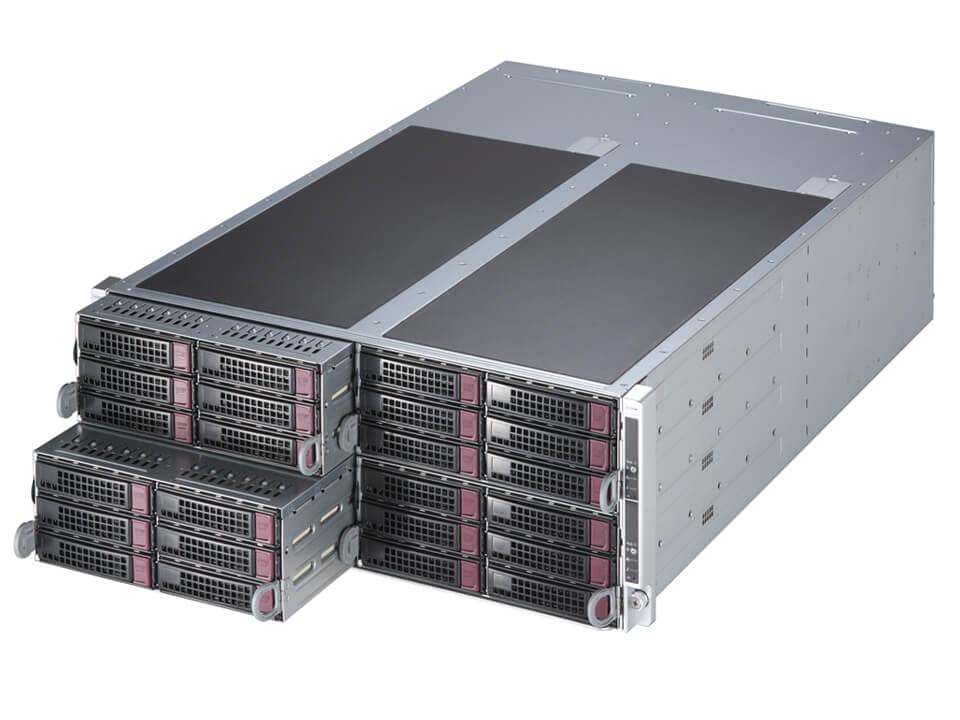

4U FatTwin SuperServer SYS-F521E3-RTB (SYS-F521E3-RTB)

SYS-F521E3-RTB | 4U | SuperServer | Products | Supermicro - SYS-F521E3-RTB - SSF521E3-RTB - 4U - FaTwin - X13 - System - Twin Servers - FatTwin - twin - FatTwin

Loading price... (€0.00)

Loading price...

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-F521E3-RTB

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Hyperscale / Hyperconverged
HPC and Big Data
Data Center Enterprise Applications
Telco Data Center

Key Features

Four hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:

Single Socket E (LGA-4677) Supports 4th/5th Gen Intel® Xeon® Scalable Processor
C741 Chipset
Two M.2 Internal Drives
NVMe/SATA/SAS options
AIOM and M.2 support; 1 AIOM card support (PCIe 5.0)
Up to 8x SAS/SATA Hot Swap 3.5” Drives, or up to 6x NVMe Hot Swap 2.5” Drives + 2x SAS/SATA Hot Swap 3.5” Drives

...

Get Pricing

Product SKUs
SuperServer SYS-F521E3-RTB

Motherboard
Super X13SEFR-A

Processor (per Node)
CPU	Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 60C/120T; Up to 112.5MB Cache
Note	Supports up to 350W TDP CPUs (Air Cooled)

System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 View Memory Options
Memory Voltage	1.1V

On-Board Devices (per Node)
Chipset	Intel® C741
Network Connectivity	1 RJ45 1GbE View AIOM Options View AOC Options
NVMe	View NVMe Options

Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB	2 USB 3.0 port(s) (rear)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI FLASH ROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors 2 80 mm Heavy Duty Fans per Node
Temperature	Monitoring for CPU and chassis environment
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 8+1 Phase-switching voltage regulator
