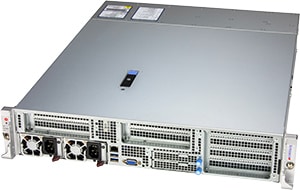

2U IoT SuperServer SYS-222HE-FTN New (SYS-222HE-FTN)

SYS-222HE-FTN | 2U | SuperServer | Products | Supermicro

Loading price... (€2091.11)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Try before you buy

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-222HE-FTN

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Virtualization
Software-defined Storage
5G Core and Edge
AI Inference and Machine Learning
Cloud Computing
Enterprise Server

Key Features

Dual Intel® Xeon® 6 6700 series processors with E-cores
32 DIMM slots supporting up to 2TB of memory
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 (6FHFL + 2 FHHL) or 4 PCIe 5.0 x16 (3 FHFL + 1 FHHL) slots with support for double-width GPU/Accelerator cards
Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
6 Rear hot-swap 2.5" NVMe/SAS/SATA drive bays with optional configurations for additional 2 or 4 front hot-swap 2.5" NVMe drive bays (space share with PCIe slots); 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card

...

Product SKUs
SuperServer SYS-222HE-FTN

Motherboard
Super X14DBM-SP

Processor
CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors with E-cores
Core Count	Up to 144C/144T; Up to 108MB Cache per CPU
Note	Supports up to 330W TDP CPUs (Air Cooled) Supports up to 330W TDP CPUs (Liquid Cooled)

GPU
Max GPU Count	Up to 3 double-width or 4 single-width GPU(s)
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe

System Memory
Memory	Slot Count: 32 DIMM slots/16 Channels Max Memory (1DPC): Up to 2 TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2 TB 5200MT/s ECC DDR5 RDIMM View Memory Options

On-Board Devices
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset	System on Chip
Network Connectivity	Via AIOM View AIOM Options View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 3.0 port(s) (front)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 64MB SPI Flash

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
