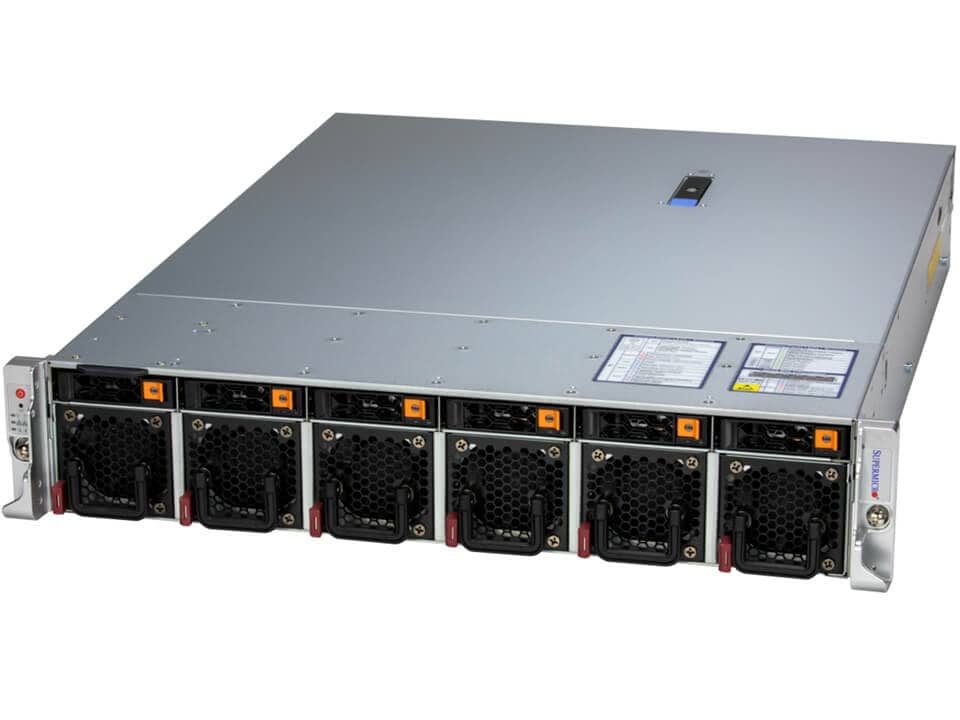

2U IoT SuperServer SYS-221HE-TNRD (SYS-221HE-TNRD)

SYS-221HE-TNRD | 2U | SuperServer | Products | Supermicro - SYS-221HE-TNRD - SS221HE-TNRD - 2U - IoT - X13 - System

Loading price... (€2810.77)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Try before you buy

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-221HE-TNRD

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

5G Core and Edge
Telecom Micro Data Center
AI Inference and Machine Learning
Network Function Virtualization
Cloud Computing

Key Features

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
Configurable PCIe slot options up to 8 PCIe 5.0 x8 (6 FHFL+ 2 FHHL) or 4 PCIe 5.0 x16 (3 FHFL + 1 FHHL)
Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives
6 heavy duty hot-swap fans with optimal fan speed control
Redundant 1300W -48V DC power supplies

...

Get Pricing

Product SKUs
SuperServer SYS-221HE-TNRD

Motherboard
Super X13DEM

Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Core Count	Up to 60C/120T; Up to 112.5MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 3 double-width or 3 single-width GPU(s)
Supported GPU	NVIDIA PCIe: RTX A4000, RTX 6000, RTX 5000, A2 View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe

System Memory
Memory	Slot Count: 32 DIMM slots/16 Channels Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) View NVMe Options
Chipset	Intel® C741
Network Connectivity	2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 QSFP28 100GbE with Broadcom® BCM57508 (optional) 2 QSFP28 100GbE with Intel® E810-CAM2 (optional) 2 QSFP28 100GbE (optional) 4 SFP+ 10GbE with Intel® X710-BM2 (optional) 2 QSFP56 200GbE (optional) 2 QSFP56 100GbE (optional) 2 RJ45 1GbE with Intel® I350-AM2 (optional) 4 SFP+ 10GbE with Intel® X710-TM4 (optional) 1 OSFP 400GbE with NVIDIA® ConnectX®-7 NDR (optional) 4 RJ45 10GbE with Intel® X550 (optional) View AIOM Options View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 2.0 port(s) (front)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 256MB SPI Flash

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI Power Management Power-on mode for DC power recovery

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
