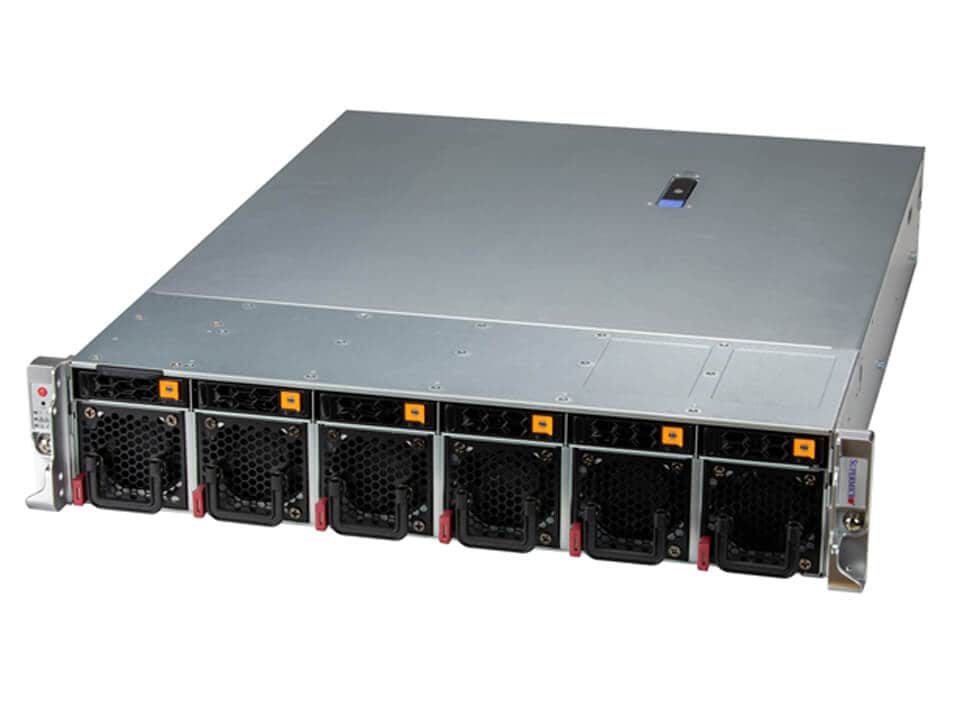

2U IoT SuperServer SYS-220HE-TNR (SYS-220HE-TNR)

SYS-220HE-TNR | 2U | SuperServer | Products | Supermicro - SYS-220HE-TNR - SS220HE-TNR - 2U - IoT - X12 - System

Loading price... (€3065.91)

Loading price...

Verzending binnen 10-15 werkdagen

Try before you buy

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-220HE-TNR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

5G Core and Edge
Telecom Micro Data Center
AI Inference and Machine Learning
Network Function Virtualization
Cloud Computing

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
- 3 PCIe 4.0 x16 slots with GPU/Accelerator support (Default);
- 1 PCIe 4.0 x16 expansion slots (Optional)
Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives
6 heavy duty hot-swap fans with optimal fan speed control Rear I/O, tool-less design
Redundant 2000W redundant AC power supplies

Get Pricing

Product SKUs
SuperServer SYS-220HE-TNR

Motherboard
Super X12DHM-6

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 3 double-width or 3 single-width GPU(s)
Supported GPU	NVIDIA PCIe: T4, A40, A100, A10 View GPU Options
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe

System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) View NVMe Options
Chipset	Intel® C621A
Network Connectivity	Via AIOM View AIOM Options View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 2.0 port(s) (front)
Video	1 VGA port(s)

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
