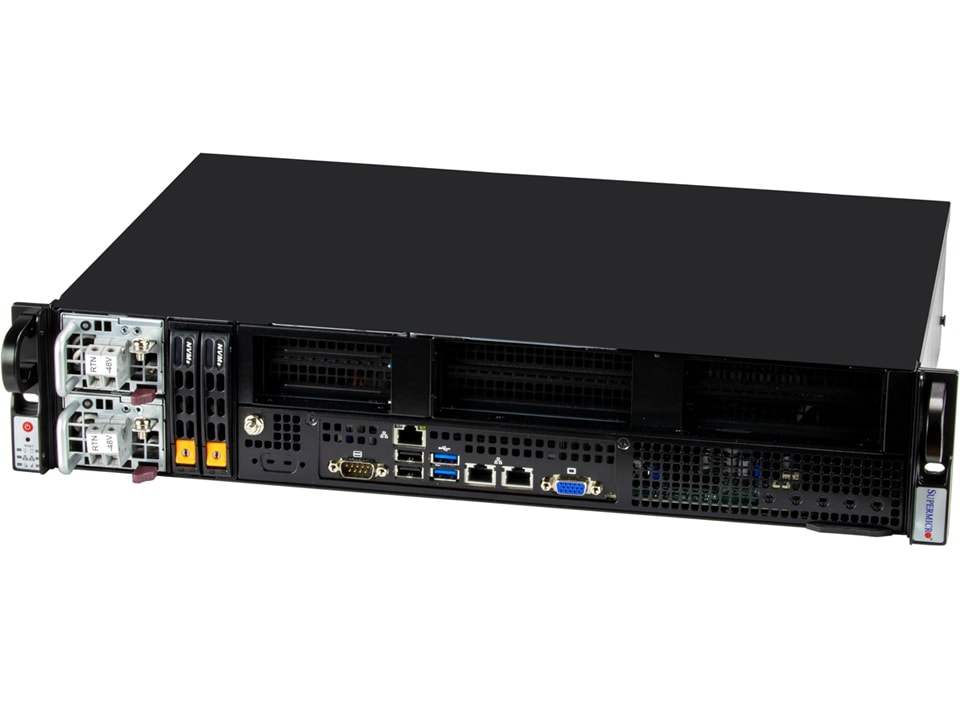

2U IoT SuperServer SYS-211E-FRDN2T (SYS-211E-FRDN2T)

SYS-211E-FRDN2T | 2U | SuperServer | Products | Supermicro - SYS-211E-FRDN2T - SS211E-FRDN2T - 2U - IoT - X13 - System

Loading price... (€2272.63)

Loading price...

Verzending binnen 10-15 werkdagen

Try before you buy

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-211E-FRDN2T

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

5G Core and Edge
AI Inference and Machine Learning
Network Function Virtualization
Cloud Computing

Key Features

Design with compliance to NEBS-Level 3
Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
8 DIMM slots; Up to 2TB 3DS ECC DDR5-5600; R-DIMM/R-DIMM 3DS
- Up to 3 PCIe 5.0 x16 FHHL, 1 PCIe 5.0 X16 HHHL & 1 PCIe 5.0 x8 FHHL expansion slots for Accelerator Add-On-Cards
- Up to 6 Configurable PCIe 5.0 slots (4 standard + 2 optional)
Onboard 2x 10GbE ports
2x 2.5" NVMe drive bays
Redundant 600W DC -48V Power Supplies
Ultra short depth, 2U Front I/O Edge Server

...

Product SKUs
SuperServer SYS-211E-FRDN2T

Motherboard
Super X13SEM-TF

Processor
CPU	Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 60C/120T; Up to 112.5MB Cache
Note	Supports up to 350W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.

GPU
Max GPU Count	Up to 3 single-width GPU(s)
Supported GPU	NVIDIA PCIe: A2 Intel PCIe: Intel Data Center GPU Flex 140 View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe

System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
NVMe	NVMe; RAID 0/1 support(Intel® VROC RAID key required) View NVMe Options
Chipset	Intel® C741
Network Connectivity	2 QSFP28 25GbE with Intel® XXV710 (optional) 2 QSFP+ 40GbE with Intel® X710-BM2 (optional) 4 RJ45 1GbE with Intel® I350 (optional) 2 QSFP28 100GbE with Intel® E810-CAM2 (optional) 2 RJ45 10GBASE-T with Intel® X550 2 SFP+ 10GbE with Intel® X710-BM2 (optional) 2 QSFP56 100GbE (optional) 4 QSFP28 25GbE with Intel® E810-CAM1 (optional) 2 QSFP56 200GbE (optional) View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s) 2 RJ45 10 GbE LAN port(s) (Intel® X550-AT2)
USB	2 USB 2.0 port(s) (front) 2 USB 3.2 Gen1 port(s) (front)
Video	1 VGA port(s)
Serial	1 port(s)

System BIOS
BIOS Type	AMI 256MB SPI Flash

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support, PEPI
