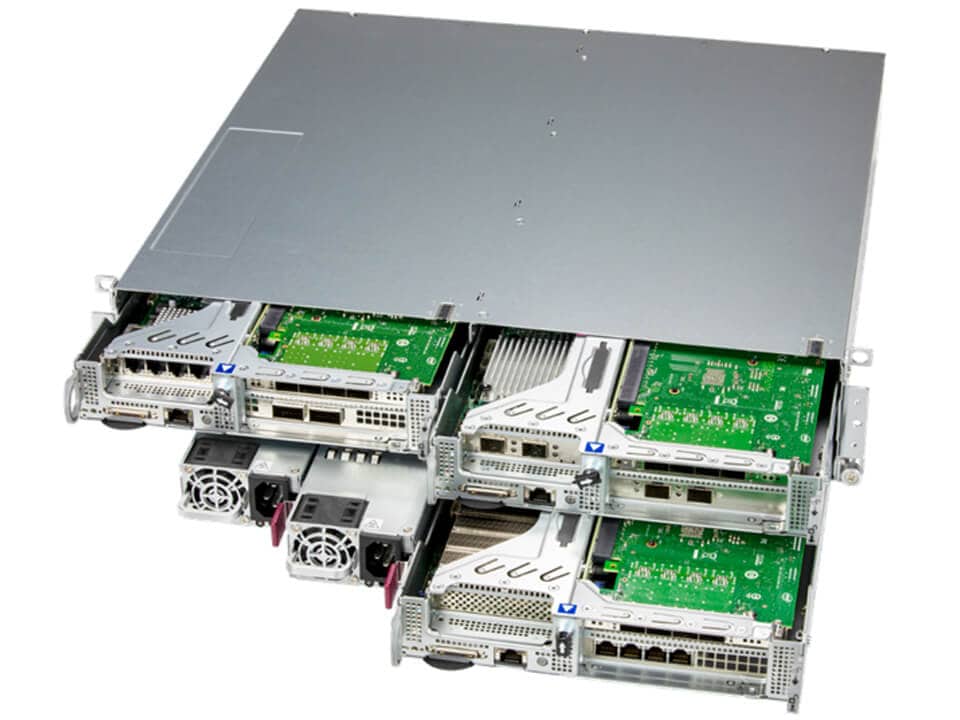

2U IoT SuperServer SYS-210SE-31D (SYS-210SE-31D)

SYS-210SE-31D | 2U | SuperServer | Products | Supermicro - SYS-210SE-31D - SS210SE-31D - 2U - IoT - X12 - System

Loading price... (€4151.84)

Loading price...

Verzending binnen 10-15 werkdagen

Try before you buy

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-210SE-31D

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Multi-Access Edge Computing
Flex-RAN, Open-RAN vBBU
Telecom DRAN, CRAN, and Edge Core Application
Enterprise Edge Computing

Key Features

Three hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processor (per node)
8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM (per node)
2 PCIe Gen4 x16 FHHL slot and 1 PCIe Gen4 x16 HHHL slot (per node)
2 NVMe M.2 2280/22110 (per node)
4 counter-rotated fan speed control (per node); 1 Air Shroud (per node)
Front-access 1+1 Redundant 2000W DC Power Supplies (per system)

...

Get Pricing

Product SKUs
SuperServer SYS-210SE-31D

Motherboard
Super X12SPED-F

Processor (per Node)
CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 32C/64T; Up to 48MB Cache
Note	Supports 85W - 270W TDP CPUs (Air Cooled)

System Memory (per Node)
Memory	Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices (per Node)
Chipset	Intel® C621A
Network Connectivity	1 RJ45 1GbE with Intel® I210-AT View AOC Options

Input / Output (per Node)
LAN	1 RJ45 1 GbE LAN port(s) (Intel® I210-AT) (IPMI shared on LAN port 1)
TPM	1 TPM header
Others	1 KVM dongle (output 1x VGA/1x COM/2x USB 2.0 via KVM cable) port(s)

System BIOS
BIOS Type	AMI 32MB UEFI
BIOS Features	SMBIOS 2.8 Plug and Play (PnP) PCI FW 3.2 ACPI 6.4 UEFI 2.8A SMBIOS 2.8/3.5

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support, PEPI
