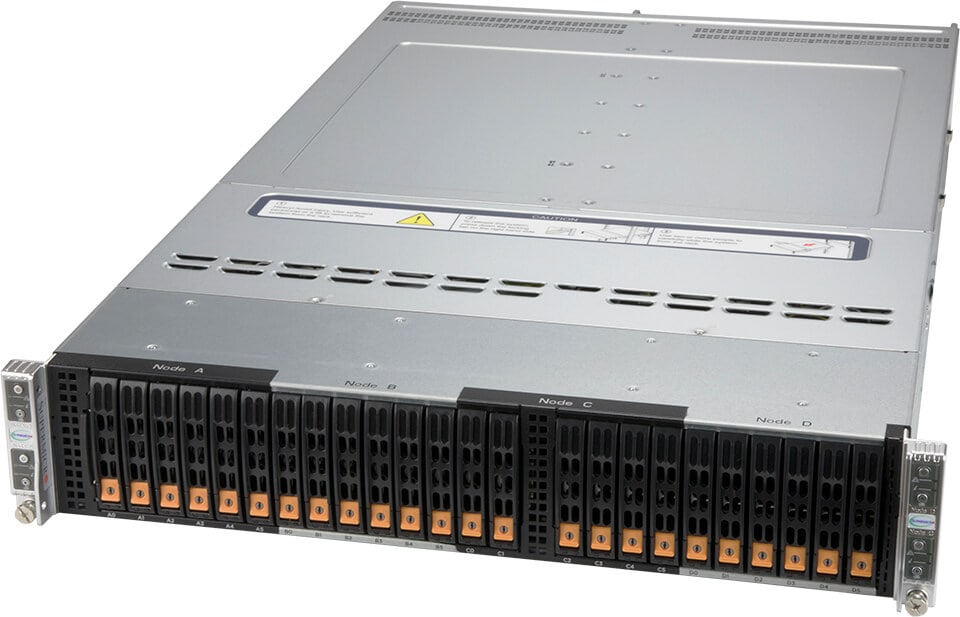

2U BigTwin SuperServer SYS-220BT-HNC9R (SYS-220BT-HNC9R)

SYS-220BT-HNC9R | 2U | SuperServer | Products | Supermicro - SYS-220BT-HNC9R - SS220BT-HNC9R - 2U - BigTwin - X12 - System - Twin Servers - BigTwin - twin - BigTwin

Loading price... (€8853.61)

Loading price...

Verzending binnen 10-15 werkdagen

Try before you buy

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-220BT-HNC9R

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Mission Critical HPC
Virtualized Big Data Analytics
High-Density Storage RAID Array

Key Features

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
Intel® C621A
20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
- 1 PCIe 4.0 x16 (LP) slot;
- Tool-less support
- Optional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only)
- Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard
Network connectivity via AIOM (OCP 3.0 compliant)
6 Hot-swap 2.5" drive bays; 6 PCIe 4.0 NVMe/SAS/SATA 2.5" drives
4 cooling fans per 2U enclosure, 16.5K RPM; Shared Cooling Design
2600W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
Built-in SAS3 Support via Broadcom SAS3908

...

Get Pricing

Product SKUs
SuperServer SYS-220BT-HNC9R

Motherboard
Super X12DPT-B6

Processor (per Node)
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 54MB Cache per CPU
Note	Supports up to 205W TDP CPUs (Air Cooled)

System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM Supports Intel® Optane™ persistent memory 200 series View Memory Options

On-Board Devices (per Node)
SAS	SAS (12Gbps) via Broadcom® 3908; RAID 0/1/5/6/10/50 support
Chipset	Intel® C621A
Network Connectivity	Via AIOM View AIOM Options View AOC Options
NVMe	View NVMe Options

Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 3.0 port(s) (rear)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB Flash ROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 7+1 Phase-switching voltage regulator
