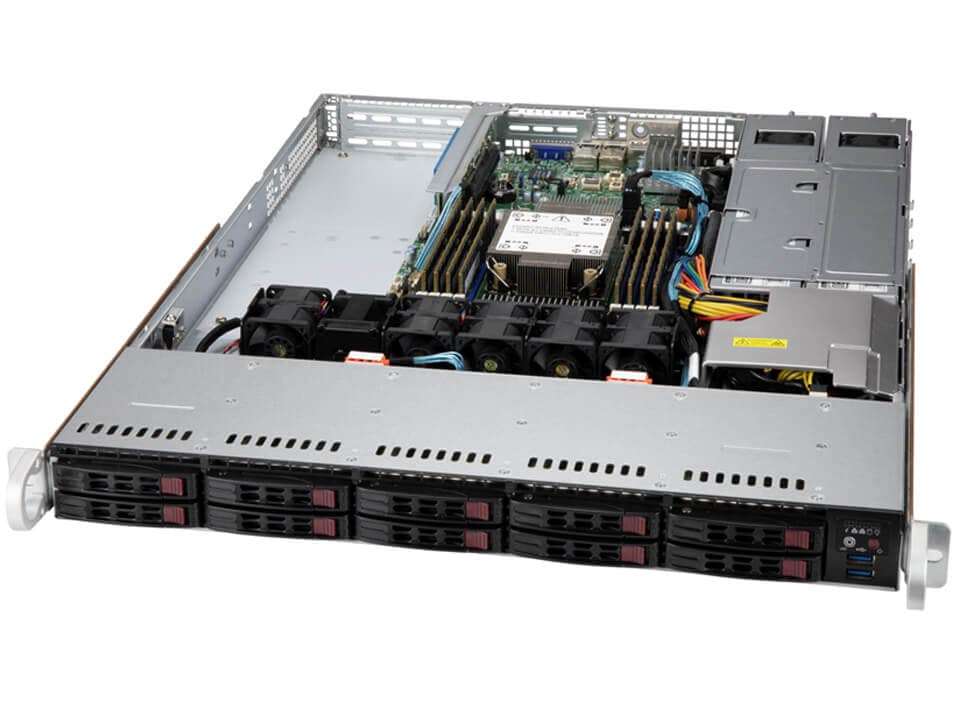

1U UP SuperServer SYS-110P-WR (SYS-110P-WR)

SYS-110P-WR | 1U | SuperServer | Products | Supermicro - SYS-110P-WR - SS110P-WR - 1U - UP - X12 - System - Rackmount Servers - Single Processor - rackmount - single-processor

Loading price... (€1585.48)

Loading price...

Verzending binnen 14-21 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Try before you buy

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-110P-WR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Virtualization
Cloud Computing
Enterprise Server
Data Center Optimized
Database Processing and Storage

Key Features

Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
2 PCIe 4.0 x16 (FHFL) slots, 1 PCIe 4.0 x16 (LP) slot
Intel® Ethernet Controller i210 2x 1GbE RJ45
10x hot-swap 2.5'' SATA3 drive bays with 4 hybrid NVMe/SATA drive bays, SAS3 with additional SAS controller card; Onboard 1x NVMe/SATA M.2
Redundant Platinum 750W Power Supply

...

Get Pricing

Product SKUs
SuperServer SYS-110P-WR

Motherboard
Super X12SPW-F

Processor
CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 1 single-width GPU(s)
Supported GPU	NVIDIA PCIe: T1000, A2 View GPU Options

System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support View NVMe Options
Chipset	Intel® C621A
Network Connectivity	2 RJ45 1GBASE-T with Intel® I210 View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s) 2 RJ45 1 GbE LAN port(s)
USB	2 USB 2.0 port(s) (rear) 2 port(s) (front) 1 Type-A port(s) 2 port(s) (header) 2 port(s) (rear)
Video	1 VGA 2 port(s)
DOM	2 SuperDOM (Disk on Module) port(s) with built-in power

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
